Unofficial File parts/4972p01.dat
Part Attributes:
Base Part: 4972.dat
File Header:

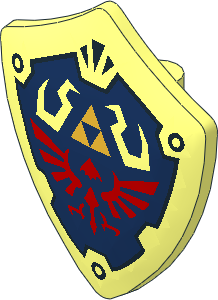

0 Minifig Shield Quadrilateral with The Legend Of Zelda Hylian Shield Pattern
0 Name: 4972p01.dat
0 Author: Javier Orquera [kuramapika1]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Accessory
0 !KEYWORDS BrickLink 4972pb01, Deku Tree, Link, Ocarina of Time
0 !KEYWORDS Rebrickable 4972pr0001, Set 77092, Zelda
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4972p01s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4972p01s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4972s02.dat
5 24 0 -18.046 -13.205 0 -12.898002 -14.08292493 1.471 -18.049002 -13.14854 -1.471 -18.049002 -13.14854
5 24 0 24.612001 -12.942523 0 26.346 -12.676 -.549 24.486002 -12.938975 .549 24.486002 -12.938975
5 24 0 6.065 -14.925522 0 7.209 -14.874347 .153 7.319 -14.861331 -.153 7.319 -14.861331
5 24 0 9.564 -14.769 0 16.287003 -14.053509 .432 13.108 -14.390077 -.432 13.108 -14.390077
5 24 0 21.454 -13.42792 0 22.192001 -13.314486 -.248 22.252 -13.294913 .248 22.252 -13.294913
5 24 0 22.192001 -13.314486 0 23.805 -13.066562 .752 22.994001 -13.159829 -.752 22.994001 -13.159829
5 24 0 1.874 -15.113 0 6.065 -14.925522 .137 5.824 -14.929054 -.137 5.824 -14.929054
5 24 0 23.805 -13.066562 0 24.612001 -12.942523 -.549 24.486002 -12.938975 .549 24.486002 -12.938975
5 24 0 -3.825 -14.865 0 .078999 -15.034903 2.207 -3.748001 -14.810356 -2.207 -3.748001 -14.810356
5 24 0 -7.517001 -14.704417 0 -3.825 -14.865 2.207 -3.748001 -14.810356 -2.207 -3.748001 -14.810356
5 24 0 19.853 -13.674 0 21.454 -13.42792 -.568 21.505001 -13.396374 .568 21.505001 -13.396374
5 24 0 16.287003 -14.053509 0 18.884 -13.777125 -1.216939 18.883302 -13.772254 1.216939 18.883302 -13.772254
5 24 0 .078999 -15.034903 0 1.874 -15.113 1.502432 .079679 -14.99542 -1.502432 .079679 -14.99542
5 24 0 18.884 -13.777125 0 19.516 -13.709865 .423228 19.515757 -13.708171 -.423228 19.515757 -13.708171
5 24 0 -9.848 -14.603 0 -7.517001 -14.704417 -2.466 -8.265001 -14.607019 2.466 -8.265001 -14.607019
5 24 0 -12.898002 -14.08292493 0 -11.111001 -14.387638 .514287 -11.106807 -14.368755 -.514287 -11.106807 -14.368755
5 24 0 7.209 -14.874347 0 9.564 -14.769 -.153 7.319 -14.861331 .153 7.319 -14.861331
5 24 0 -11.111001 -14.387638 0 -10.411 -14.506999321 -.229133 -10.408844 -14.498635 .229133 -10.408844 -14.498635
5 24 0 19.516 -13.709865 0 19.853 -13.674 -.423228 19.515757 -13.708171 .423228 19.515757 -13.708171
5 24 0 -21.624 -12.595 0 -18.046 -13.205 1.4710001 -18.049002 -13.14854046 -1.4710001 -18.049002 -13.14854046
5 24 0 -10.411 -14.506999321 0 -9.848 -14.603 -.229133 -10.408844 -14.498635 .229133 -10.408844 -14.498635
Status:
Needs 2 More Votes (N)
This part has the following errors
-
Decimal precision exceeds 5 significant placesLine 16: 5 24 0 -18.046 -13.205 0 -12.898002 -14.08292493 1.471 -18.049002 -13.14854 -1.471 -18.049002 -13.14854Line 17: 5 24 0 24.612001 -12.942523 0 26.346 -12.676 -.549 24.486002 -12.938975 .549 24.486002 -12.938975Line 18: 5 24 0 6.065 -14.925522 0 7.209 -14.874347 .153 7.319 -14.861331 -.153 7.319 -14.861331Line 19: 5 24 0 9.564 -14.769 0 16.287003 -14.053509 .432 13.108 -14.390077 -.432 13.108 -14.390077Line 21: 5 24 0 22.192001 -13.314486 0 23.805 -13.066562 .752 22.994001 -13.159829 -.752 22.994001 -13.159829Line 22: 5 24 0 1.874 -15.113 0 6.065 -14.925522 .137 5.824 -14.929054 -.137 5.824 -14.929054Line 23: 5 24 0 23.805 -13.066562 0 24.612001 -12.942523 -.549 24.486002 -12.938975 .549 24.486002 -12.938975Line 24: 5 24 0 -3.825 -14.865 0 .078999 -15.034903 2.207 -3.748001 -14.810356 -2.207 -3.748001 -14.810356Line 25: 5 24 0 -7.517001 -14.704417 0 -3.825 -14.865 2.207 -3.748001 -14.810356 -2.207 -3.748001 -14.810356Line 27: 5 24 0 16.287003 -14.053509 0 18.884 -13.777125 -1.216939 18.883302 -13.772254 1.216939 18.883302 -13.772254Line 28: 5 24 0 .078999 -15.034903 0 1.874 -15.113 1.502432 .079679 -14.99542 -1.502432 .079679 -14.99542Line 29: 5 24 0 18.884 -13.777125 0 19.516 -13.709865 .423228 19.515757 -13.708171 -.423228 19.515757 -13.708171Line 30: 5 24 0 -9.848 -14.603 0 -7.517001 -14.704417 -2.466 -8.265001 -14.607019 2.466 -8.265001 -14.607019Line 31: 5 24 0 -12.898002 -14.08292493 0 -11.111001 -14.387638 .514287 -11.106807 -14.368755 -.514287 -11.106807 -14.368755Line 32: 5 24 0 7.209 -14.874347 0 9.564 -14.769 -.153 7.319 -14.861331 .153 7.319 -14.861331Line 33: 5 24 0 -11.111001 -14.387638 0 -10.411 -14.506999321 -.229133 -10.408844 -14.498635 .229133 -10.408844 -14.498635Line 34: 5 24 0 19.516 -13.709865 0 19.853 -13.674 -.423228 19.515757 -13.708171 .423228 19.515757 -13.708171Line 35: 5 24 0 -21.624 -12.595 0 -18.046 -13.205 1.4710001 -18.049002 -13.14854046 -1.4710001 -18.049002 -13.14854046Line 36: 5 24 0 -10.411 -14.506999321 0 -9.848 -14.603 -.229133 -10.408844 -14.498635 .229133 -10.408844 -14.498635
This part has the following automated holds from the Parts Tracker
Current Votes:
None
Official parents and subparts
Part Events:
Javier Orquera [kuramapika1]
initially submitted the part.
2025-05-30 20:03:50
Javier Orquera [kuramapika1]
submitted a new version of the part (all votes reset).
2025-05-30 20:08:42
Submited wrong file. Now is fixed.
Magnus Forsberg [MagFors]
posted a vote of Hold
2025-05-31 16:51:59
This is not how a patterned part is usually done. I see no reason to subfile each colour.
Are the more colour variant where all these subfiles will be reused?
Can't find any.
Are the more colour variant where all these subfiles will be reused?
Can't find any.
Javier Orquera [kuramapika1]
submitted a new version of the part (all votes reset).
2025-05-31 21:43:51
Orion Pobursky [OrionP]
edited the part header.
2026-07-15 04:27:43
Header Edits
category:
Minifig
to
Minifig Accessory
Chris Böhnke [KnightOfTarenta]
made the following comment.
2026-07-16 02:38:56
Name is a bit wordy. Would simply "Hylian Shield" suffice (and The Legend of Zelda in KW)?
