Official File parts/s/7064s02.dat
File Header:

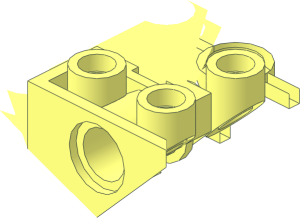

0 ~Slope Brick 45 6 x 8 Double Inverted with Open Centre and 4 Holes and Cutout on One Side - Quarter
0 Name: s\7064s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07
Show contents
1 16 30 24 -70 1 0 0 0 1 0 0 0 1 s\5117s03.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\5118s04.dat
1 16 32.5 20 -40 -4.5 0 0 0 3.5 0 0 0 1.5 box3u5p.dat
1 16 32.5 20 -20 -4.5 0 0 0 3.5 0 0 0 1.5 box3u5p.dat
1 16 32.3508 21.75 -60 4.6492 0 0 0 1.75 0 0 0 1.5 box2-5.dat
2 24 28 23.5 -60 27.7018 23.5 -58.5
2 24 27.7018 23.5 -61.5 28 23.5 -60
0 // Bottom Corner
1 16 40 10 -76 -8.31492 0 3.44415 3.44415 0 8.31492 0 11.5 0 1-8cylo.dat
3 16 37 18.4032 -76 37 18.4032 -64.5 37 24 -76
4 16 37 18.4032 -76 36.5559 18.3148 -76 36.5559 18.3148 -64.5 37 18.4032 -64.5
1 16 40 10 -61.5 -2.77164 0 1.14805 1.14805 0 2.77164 0 -3 0 1-8con3.dat
4 16 27.7018 23.5 -61.5 37 23.5 -61.5 37 21.4034 -61.5 35.4078 21.0865 -61.5
3 16 31.5148 18.4852 -61.5 28.9132 14.5924 -61.5 27.7018 23.5 -61.5
4 16 27.7018 23.5 -61.5 28.9132 14.5924 -61.5 28.6849 13.4442 -61.5 27.7017 13.4442 -61.5
3 16 28.6849 13.4442 -61.5 28.9132 14.5924 -61.5 31.6851 13.4442 -64.5
4 16 37 18.4032 -64.5 36.5557 18.3151 -64.5 35.4078 21.0865 -61.5 37 21.4034 -61.5
3 16 31.5148 18.4852 -61.5 27.7018 23.5 -61.5 35.4078 21.0865 -61.5
4 16 37 18.4032 -64.5 37 21.4034 -61.5 37 23.5 -61.5 37 24 -76
1 16 40 10 -61.5 -11.08655 0 4.5922 4.5922 0 11.08655 0 -1 0 1-8edge.dat
2 24 37 18.4032 -76 36.5559 18.3148 -76
2 24 36.5559 18.3148 -64.5 37 18.4032 -64.5
2 24 37 18.4032 -76 37 24 -76
2 24 37 18.4032 -76 37 18.4032 -64.5
2 24 27.7018 23.5 -61.5 27.7017 13.4442 -61.5
2 24 28.6849 13.4442 -61.5 27.7017 13.4442 -61.5
2 24 37 21.4034 -61.5 37 18.4038 -64.4997
2 24 35.4078 21.0865 -61.5 37 21.4034 -61.5
2 24 28.6849 13.4442 -61.5 28.9132 14.5924 -61.5
2 24 31.68508 13.44415 -64.5 31.68508 13.44415 -76
3 16 31.6851 13.4442 -76 23.0616 13.4442 -76 31.6851 13.4442 -64.5
3 16 23.0616 13.4442 -67.3912 27.7017 13.4442 -61.5 28.6849 13.4442 -61.5
4 16 31.6851 13.4442 -64.5 23.0616 13.4442 -76 23.0616 13.4442 -67.3912 28.6849 13.4442 -61.5
2 24 31.6851 13.4442 -64.5 28.6849 13.4442 -61.5
2 24 37 21.4034 -61.5 37 23.5 -61.5
5 24 36.5559 18.3148 -76 36.5557 18.3151 -64.5 37 18.4032 -64.5 33.6359 16.3642 -64.5
5 24 31.6851 13.4442 -64.5 28.9132 14.5924 -61.5 28.6849 13.4442 -61.5 31.5146 18.4856 -61.5
5 24 36.5557 18.3151 -64.5 35.4078 21.0865 -61.5 37 21.4034 -61.5 31.5146 18.4856 -61.5
Status:
Official
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 40 10 -76 -8.31492 0 3.44415 3.44415 0 8.31492 0 11.5 0 1-8cylo.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 40 10 -61.5 -2.77164 0 1.14805 1.14805 0 2.77164 0 -3 0 1-8con3.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 40 10 -61.5 -11.08655 0 4.5922 4.5922 0 11.08655 0 -1 0 1-8edge.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 2 24 31.68508 13.44415 -64.5 31.68508 13.44415 -76
Unofficial parents
Part Events:
Archived Part Events:
