Unofficial File parts/s/6155s02.dat
File Header:

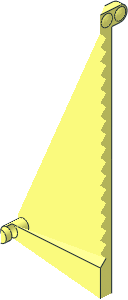

0 ~Door 1 x 4 x 4 Lift - Half
0 Name: s\6155s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 35.5 0 0 0 -2.5 0 2.5 0 0 0 0 2.5 2-4cylo.dat
1 16 35.5 0 0 0 -1 0 2.5 0 0 0 0 2.5 2-4chrd.dat
1 16 33 0 0 0 1 0 2.5 0 0 0 0 2.5 2-4chrd.dat
1 16 35.5 0 0 0 -1.5 0 2 0 0 0 0 2 bump5000.dat
1 16 35.5 0 -4.75 0 -1.5 0 2 0 0 0 0 2 bump5000.dat
1 16 34.25 0 -1.5 0 -1.25 0 0 0 2.5 -1.5 0 0 box2-9p.dat
4 16 35.5 2.5 0 35.5 -2.5 0 35.5 -2.5 -7 35.5 2.5 -3
4 16 35.5 -2.5 0 33 -2.5 0 33 -2.5 -3 35.5 -2.5 -7
2 24 35.5 -2.5 -7 35.5 -2.5 0
2 24 35.5 41 -3 35.5 80 -3
2 24 35.5 2.5 -3 35.5 41 -3
2 24 35.5 71 -7 35.5 80 -7
2 24 35.5 71 -7 35.5 69 -5
2 24 35.5 71 -7 6 71 -7
2 24 6 71 -7 4 71 -7
2 24 35.5 2.5 -3 33 2.5 -3
4 16 35.5 2.5 -3 35.5 -2.5 -7 35.5 3 -7 35.5 5 -5
4 16 35.5 25 -5 35.5 41 -3 35.5 2.5 -3 35.5 21 -5
3 16 35.5 41 -3 35.5 45 -5 35.5 49 -5
3 16 35.5 41 -3 35.5 49 -5 35.5 53 -5
3 16 35.5 41 -3 35.5 53 -5 35.5 57 -5
3 16 35.5 5 -5 35.5 7 -7 35.5 9 -5
3 16 35.5 9 -5 35.5 11 -7 35.5 13 -5
3 16 35.5 13 -5 35.5 15 -7 35.5 17 -5
3 16 35.5 17 -5 35.5 19 -7 35.5 21 -5
3 16 35.5 21 -5 35.5 23 -7 35.5 25 -5
3 16 35.5 25 -5 35.5 27 -7 35.5 29 -5
3 16 35.5 29 -5 35.5 31 -7 35.5 33 -5
3 16 35.5 33 -5 35.5 35 -7 35.5 37 -5
4 16 35.5 41 -3 35.5 41 -5 35.5 43 -7 35.5 45 -5
3 16 35.5 45 -5 35.5 47 -7 35.5 49 -5
3 16 35.5 53 -5 35.5 49 -5 35.5 51 -7
3 16 35.5 53 -5 35.5 55 -7 35.5 57 -5
3 16 35.5 57 -5 35.5 59 -7 35.5 61 -5
3 16 35.5 61 -5 35.5 63 -7 35.5 65 -5
3 16 35.5 65 -5 35.5 67 -7 35.5 69 -5
3 16 35.5 2.5 -3 35.5 5 -5 35.5 9 -5
3 16 35.5 2.5 -3 35.5 9 -5 35.5 13 -5
3 16 35.5 2.5 -3 35.5 13 -5 35.5 17 -5
3 16 35.5 2.5 -3 35.5 17 -5 35.5 21 -5
4 16 35.5 39 -7 35.5 41 -5 35.5 41 -3 35.5 37 -5
3 16 35.5 37 -5 35.5 41 -3 35.5 33 -5
3 16 35.5 33 -5 35.5 41 -3 35.5 29 -5
3 16 35.5 29 -5 35.5 41 -3 35.5 25 -5
4 16 35.5 61 -5 35.5 80 -3 35.5 41 -3 35.5 57 -5
3 16 35.5 80 -3 35.5 61 -5 35.5 65 -5
3 16 35.5 80 -3 35.5 65 -5 35.5 69 -5
4 16 35.5 69 -5 35.5 71 -7 35.5 80 -7 35.5 80 -3
0 // Grip
1 16 4 73 -3 -2 0 0 0 0 2 0 -1 0 4-4ndis.dat
1 16 4 73 -3 0 0 -2 2 0 0 0 1 0 2-4edge.dat
0 BFC INVERTNEXT
1 16 4 73 -7 0 0 2 2 0 0 0 4 0 2-4cylo.dat
0 BFC INVERTNEXT
1 16 4 73 -7 0 0 -2 2 0 0 0 4 0 2-4cyli.dat
0 BFC INVERTNEXT
1 16 4 73 -9 0 0 -2 2 0 0 0 2 0 2-4cyli.dat
1 16 4 73 -9 0 0 -2 2 0 0 0 1 0 2-4edge.dat
1 16 4 73 -9 0 0 -2 2 0 0 0 -1 0 4-4disc.dat
1 16 4 73 -11 0 0 2 2 0 0 0 2 0 2-4cylo.dat
1 16 4 73 -11 0 0 2 2 0 0 0 1 0 2-4chrd.dat
1 16 4 73 -7 0 0 2 2 0 0 0 1 0 2-4ndis.dat
2 24 4 71 -7 4 71 -9
3 16 35.5 80 -3 6 75 -3 6 73 -3
3 16 35.5 80 -3 6 73 -3 6 71 -3
3 16 35.5 80 -3 6 71 -3 35.5 2.5 -3
3 16 35.5 2.5 -3 6 71 -3 33 2.5 -3
3 16 33 2.5 -3 6 71 -3 4 71 -3
3 16 33 2.5 -3 4 71 -3 2 71 -3
3 16 6 75 -3 35.5 80 -3 4 75 -3
3 16 4 75 -3 35.5 80 -3 2 75 -3
3 16 4 75 -7 35.5 80 -7 6 75 -7
3 16 6 75 -7 35.5 80 -7 6 73 -7
3 16 6 73 -7 35.5 80 -7 6 71 -7
3 16 6 71 -7 35.5 80 -7 35.5 71 -7
3 16 6 71 -7 35.5 71 -7 35.5 69 -5
3 16 4 71 -7 6 71 -7 35.5 69 -5
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
| User | Vote |
|---|---|
| WUIt | Certify |
Official parents and subparts
Part Events:
Added glass holder holes to 6154 and added 40527 for door only version
2025-06-06 07:50:26
Why s02?
I think you could reuse the s01 file, but completely change the content.
If not, it will be an orphaned subfile.
I think you could reuse the s01 file, but completely change the content.
If not, it will be an orphaned subfile.
Please reuse s01. Some pointed triangles on the back could be combined to quads. The vertex on the side could be used to further reduce a pointed triangle.
There is some bleed at the handle in front, but that was there already in the earlier official version.
There is some bleed at the handle in front, but that was there already in the earlier official version.
