Unofficial File parts/s/5122s02.dat
File Header:

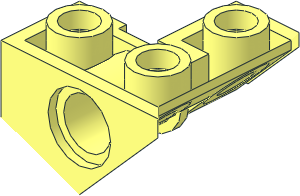

0 ~Plane Bottom 6 x 8 x 1 with Two Holes - Corner
0 Name: s\5122s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\5117s03.dat
1 16 10 -16 20 0 1 0 -8 0 0 0 0 10 rect3.dat
2 24 10 -8 30 13 -8 30
2 24 10 -24 30 26 -24 30
4 16 26 -24 30 13 -8 30 10 -8 30 10 -24 30
2 24 27 -22 27 13 -8 27
4 16 20 -15 13 27 -22 27 13 -8 27 13 -8 13
1 16 27 -23 10 0 1 0 -1 0 0 0 0 17 rect3.dat
3 16 27 -22 27 20 -15 13 27 -22 -7
4 16 27 -24 27 13 -24 27 13 -8 27 27 -22 27
2 24 13 -24 27 27 -24 27
4 16 10 -24 30 10 -24 10 13 -24 13 13 -24 27
4 16 10 -24 30 13 -24 27 27 -24 27 26 -24 30
2 24 26 -24 30 26 -21 30
3 16 26 -24 30 26 -21 30 13 -8 30
2 24 26 -21 30 13 -8 30
1 16 13 -16 20 0 -1 0 8 0 0 0 0 7 rect3.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2025-06-07 16:15:51
2025-06-08 07:58:10
2025-06-08 08:40:59
22 is intentional, as I started with 22 a long time ago, but I needed 23 now... so 22 will come as well
