Unofficial File parts/6414469a.dat
Part Attributes:
File Header:

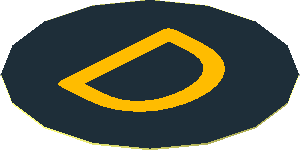

0 Sticker 1.8 x 1.8 Round with Bright Light Orange "D" on Black Background
0 Name: 6414469a.dat
0 Author: Gabriel Läufer [Dr.Bricktacular]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 910013stk01, Rebrickable 10100941, Retro Bowling Alley
0 !KEYWORDS Set 910013
0 !HISTORY 2025-06-11 [Dr.Bricktacular] based on the part 14769ptd.dat from Gerald Lasser [GeraldLasser]
Show contents
0 // Txt2Dat Setting: Flatness: 0.2 - Font Height: 20 LDU - Font Size: 48
0 // Pattern-Basepart
1 16 0 0 0 18 0 0 0 -0.25 0 0 0 18 4-4cylc3.dat
0 // Pattern
1 0 0 -.25 0 18 0 0 0 1 0 0 0 18 4-4ering.dat
4 0 6.8886 -.25 16.6302 -6.8886 -.25 16.6302 -12.7278 -.25 12.7278 12.7278 -.25 12.7278
4 0 -12.7278 -.25 12.7278 -16.6302 -.25 6.8886 -16.6302 -.25 -6.8886 -12.7278 -.25 -12.7278
4 0 -12.7278 -.25 -12.7278 -6.8886 -.25 -16.6302 6.8886 -.25 -16.6302 12.7278 -.25 -12.7278
4 0 12.7278 -.25 -12.7278 16.6302 -.25 -6.8886 16.6302 -.25 6.8886 12.7278 -.25 12.7278
3 0 6.8886 -.25 16.6302 0 -.25 18 -6.8886 -.25 16.6302
3 0 -16.6302 -.25 6.8886 -18 -.25 0 -16.6302 -.25 -6.8886
3 0 -6.8886 -.25 -16.6302 0 -.25 -18 6.8886 -.25 -16.6302
3 0 16.6302 -.25 -6.8886 18 -.25 0 16.6302 -.25 6.8886
4 0 -12.7278 -.25 12.7278 -12.7278 -.25 -12.7278 -6.5 -.25 -8.56 -6.5 -.25 8.47
3 0 -12.7278 -.25 12.7278 -6.5 -.25 8.47 -6.43 -.25 9.01
3 0 -6.5 -.25 -8.56 -12.7278 -.25 -12.7278 -6.43 -.25 -9.1
3 0 -12.7278 -.25 12.7278 -6.43 -.25 9.01 -6.21 -.25 9.4
3 0 -12.7278 -.25 12.7278 -6.21 -.25 9.4 -5.85 -.25 9.63
3 0 -6.43 -.25 -9.1 -12.7278 -.25 -12.7278 -6.21 -.25 -9.49
3 0 -6.21 -.25 -9.49 -12.7278 -.25 -12.7278 -5.85 -.25 -9.72
3 0 -12.7278 -.25 12.7278 -5.85 -.25 9.63 -5.35 -.25 9.71
3 0 -5.85 -.25 -9.72 -12.7278 -.25 -12.7278 -5.35 -.25 -9.8
4 0 -12.7278 -.25 12.7278 -5.35 -.25 9.71 -.67 -.25 9.71 12.7278 -.25 12.7278
4 0 -.67 -.25 7.16 -3.89 -.25 7.16 -3.89 -.25 -7.25 -.67 -.25 -7.25
4 0 -.67 -.25 -9.8 -5.35 -.25 -9.8 -12.7278 -.25 -12.7278 12.7278 -.25 -12.7278
4 0 2.97 -.25 6.05 1.92 -.25 6.66 4.58 -.25 4.19 3.86 -.25 5.22
4 0 4.58 -.25 -4.28 1.92 -.25 -6.76 2.97 -.25 -6.15 3.86 -.25 -5.32
4 0 1.92 -.25 6.66 .7 -.25 7.04 5.1 -.25 2.95 4.58 -.25 4.19
4 0 5.1 -.25 -3.04 .7 -.25 -7.13 1.92 -.25 -6.76 4.58 -.25 -4.28
4 0 .7 -.25 7.04 -.67 -.25 7.16 5.42 -.25 1.55 5.1 -.25 2.95
4 0 5.42 -.25 -1.61 -.67 -.25 -7.25 .7 -.25 -7.13 5.1 -.25 -3.04
4 0 5.53 -.25 -.02 5.42 -.25 1.55 -.67 -.25 7.16 -.67 -.25 -7.25
3 0 5.53 -.25 -.02 -.67 -.25 -7.25 5.42 -.25 -1.61
3 0 12.7278 -.25 12.7278 1.3 -.25 9.53 3.06 -.25 8.98
3 0 12.7278 -.25 12.7278 -.67 -.25 9.71 1.3 -.25 9.53
3 0 12.7278 -.25 12.7278 7.63 -.25 3.87 8.1 -.25 2.01
3 0 12.7278 -.25 12.7278 5.86 -.25 6.94 6.88 -.25 5.53
4 0 12.7278 -.25 12.7278 8.1 -.25 2.01 8.26 -.25 -.02 12.7278 -.25 -12.7278
3 0 1.3 -.25 -9.62 -.67 -.25 -9.8 12.7278 -.25 -12.7278
3 0 12.7278 -.25 12.7278 4.59 -.25 8.1 5.86 -.25 6.94
3 0 12.7278 -.25 12.7278 6.88 -.25 5.53 7.63 -.25 3.87
3 0 12.7278 -.25 12.7278 3.06 -.25 8.98 4.59 -.25 8.1
3 0 3.06 -.25 -9.07 1.3 -.25 -9.62 12.7278 -.25 -12.7278
3 0 6.88 -.25 -5.59 5.86 -.25 -7.02 12.7278 -.25 -12.7278
3 0 8.1 -.25 -2.05 7.63 -.25 -3.92 12.7278 -.25 -12.7278
3 0 8.26 -.25 -.02 8.1 -.25 -2.05 12.7278 -.25 -12.7278
3 0 7.63 -.25 -3.92 6.88 -.25 -5.59 12.7278 -.25 -12.7278
3 0 4.59 -.25 -8.19 3.06 -.25 -9.07 12.7278 -.25 -12.7278
3 0 5.86 -.25 -7.02 4.59 -.25 -8.19 12.7278 -.25 -12.7278
4 191 -5.85 -.25 9.63 -6.21 -.25 9.4 -6.43 -.25 9.01 -6.5 -.25 8.47
4 191 -5.85 -.25 -9.72 -6.5 -.25 -8.56 -6.43 -.25 -9.1 -6.21 -.25 -9.49
4 191 -5.35 -.25 9.71 -5.85 -.25 9.63 -6.5 -.25 8.47 -3.89 -.25 7.16
4 191 -6.5 -.25 -8.56 -5.85 -.25 -9.72 -5.35 -.25 -9.8 -3.89 -.25 -7.25
4 191 -3.89 -.25 7.16 -6.5 -.25 8.47 -6.5 -.25 -8.56 -3.89 -.25 -7.25
4 191 -.67 -.25 9.71 -5.35 -.25 9.71 -3.89 -.25 7.16 -.67 -.25 7.16
4 191 -.67 -.25 -9.8 -.67 -.25 -7.25 -3.89 -.25 -7.25 -5.35 -.25 -9.8
4 191 -.67 -.25 9.71 -.67 -.25 7.16 .7 -.25 7.04 1.3 -.25 9.53
4 191 .7 -.25 -7.13 -.67 -.25 -7.25 -.67 -.25 -9.8 1.3 -.25 -9.62
4 191 1.3 -.25 9.53 .7 -.25 7.04 1.92 -.25 6.66 3.06 -.25 8.98
4 191 1.92 -.25 -6.76 .7 -.25 -7.13 1.3 -.25 -9.62 3.06 -.25 -9.07
4 191 3.06 -.25 8.98 1.92 -.25 6.66 2.97 -.25 6.05 4.59 -.25 8.1
4 191 2.97 -.25 -6.15 1.92 -.25 -6.76 3.06 -.25 -9.07 4.59 -.25 -8.19
4 191 4.59 -.25 8.1 2.97 -.25 6.05 3.86 -.25 5.22 5.86 -.25 6.94
4 191 3.86 -.25 -5.32 2.97 -.25 -6.15 4.59 -.25 -8.19 5.86 -.25 -7.02
4 191 5.86 -.25 6.94 3.86 -.25 5.22 4.58 -.25 4.19 6.88 -.25 5.53
4 191 4.58 -.25 -4.28 3.86 -.25 -5.32 5.86 -.25 -7.02 6.88 -.25 -5.59
4 191 6.88 -.25 5.53 4.58 -.25 4.19 5.1 -.25 2.95 7.63 -.25 3.87
4 191 5.1 -.25 -3.04 4.58 -.25 -4.28 6.88 -.25 -5.59 7.63 -.25 -3.92
4 191 7.63 -.25 3.87 5.1 -.25 2.95 5.42 -.25 1.55 8.1 -.25 2.01
4 191 5.42 -.25 -1.61 5.1 -.25 -3.04 7.63 -.25 -3.92 8.1 -.25 -2.05
4 191 8.1 -.25 2.01 5.42 -.25 1.55 5.53 -.25 -.02 8.26 -.25 -.02
4 191 5.53 -.25 -.02 5.42 -.25 -1.61 8.1 -.25 -2.05 8.26 -.25 -.02
Status:
Needs More Votes (N)
Current Votes:
None
Official parents and subparts
Part Events:
2025-06-13 11:43:51
please use prims for the rims (ering or 1-8 or 1-4chrd, unrotated)
2025-06-13 13:43:01
(the outer rim to the sticker bottom, idk if the letter also should use prims)
2025-06-14 18:01:43
2025-06-15 06:47:00
Please use a normal resolution 4-4ering instead of a hi-res 4-4aring. Or some normal chrd prims.
A hi-res backside in unnecessary.
The history comment is strange. 14769ptd is made by Gerald Lasser, not Jens Brühl.
A hi-res backside in unnecessary.
The history comment is strange. 14769ptd is made by Gerald Lasser, not Jens Brühl.
Normal resolution ering used. @Gerald: Was not an offense. I’ve started with letter „A“ and mistakenly assumed that all letters are from Jens.
2025-06-18 15:21:43
:-D no issue
