Unofficial File parts/30038.dat
Part Attributes:
File Header:

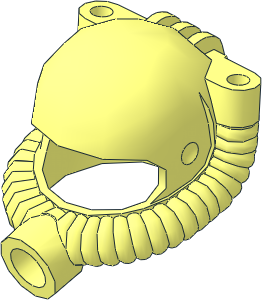

0 Minifig Helmet with Breathing Apparatus and Studs
0 Name: 30038.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP to place visor use:
0 !HELP 1 16 0 7 1.6 1 0 0 0 .99756 .06976 0 -.06976 .99756 2447b.dat
0 !HELP to place on front stud use:
0 !HELP 1 16 0 11.14728 28.21204 1 0 0 0 .27434 .96163 0 -.96163 .27434 6141.dat
0 !HELP to place on back stud use:
0 !HELP 1 16 0 26.51032 -25.63924 1 0 0 0 -.27434 .96163 0 .96163 .27434 6141.dat
0 !HELP to place accessories use:
0 !HELP 1 16 16.094 -3.609 11.259 0 0 1 -.06492 .99789 0 -.99789 -.06492 0 87685.dat
0 !HELP 1 16 -16.094 -3.609 11.259 0 0 -1 .06492 .99789 0 .99789 -.06492 0 87686.dat
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Headwear
0 !KEYWORDS BrickLink x168, Exploriens, Race, Racers, Roboforce, rock raiders
0 !KEYWORDS Space, Stunt Rally
0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2025-06-14 [KnightOfTarenta] File preparation for LDraw Parts Tracker
Show contents
0 // Halves
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30038s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\30038s01.dat
0 // Understud
1 16 0 -2 0 1 0 0 0 -.5 0 0 0 1 stud16a.dat
1 16 0 -5.375 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 -5.375 0 6 0 0 0 -1 0 0 0 6 4-4disc.dat
0 BFC INVERTNEXT
1 16 0 -5.375 0 6 0 0 0 3.375 0 0 0 6 4-4cyli.dat
0 // Back Stud
1 16 0 13.342 20.519 1 0 0 0 .27434 .96163 0 -.96163 .27434 stud2.dat
0 // Regular Geometry
3 16 -1.069 3.426 17.722 1.069 3.426 17.722 0 21.99 22.997
3 16 -1.069 -6.485 13.488 0 -6.401 12.378 1.069 -6.485 13.488
3 16 11.939 21.193 14.912 0 21.401 13.006 -11.939 21.193 14.912
3 16 -7 17.567 19.146 0 22.679 20.639 7 17.567 19.146
4 16 1.069 -6.486 13.978 -1.069 -6.486 13.978 -1.069 -6.485 13.488 1.069 -6.485 13.488
4 16 -1.069 -6.486 13.978 1.069 -6.486 13.978 1.069 -6.141 15.195 -1.069 -6.141 15.195
4 16 1.069 -5.65 16.309 -1.069 -5.65 16.309 -1.069 -6.141 15.195 1.069 -6.141 15.195
4 16 -1.069 -5.65 16.309 1.069 -5.65 16.309 1.069 -4.819 17.181 -1.069 -4.819 17.181
4 16 1.069 -3.568 17.719 -1.069 -3.568 17.719 -1.069 -4.819 17.181 1.069 -4.819 17.181
4 16 -1.069 -3.568 17.719 1.069 -3.568 17.719 1.069 1.251 18.986 -1.069 1.251 18.986
4 16 -1.069 1.251 18.986 1.069 1.251 18.986 1.069 2.257 18.91 -1.069 2.257 18.91
4 16 -1.069 2.257 18.91 1.069 2.257 18.91 1.069 2.986 18.427 -1.069 2.986 18.427
4 16 1.069 3.426 17.722 -1.069 3.426 17.722 -1.069 2.986 18.427 1.069 2.986 18.427
4 16 1.069 2.986 18.427 1.069 2.257 18.91 1.069 1.251 18.986 1.069 3.426 17.722
4 16 1.069 3.426 17.722 1.069 1.251 18.986 1.069 -3.568 17.719 1.069 -3.421 15.786
4 16 1.069 -3.568 17.719 1.069 -4.819 17.181 1.069 -5.65 16.309 1.069 -3.421 15.786
4 16 1.069 -3.421 15.786 1.069 -6.486 13.978 1.069 -6.485 13.488 1.069 -3.421 14.624
4 16 1.069 -5.65 16.309 1.069 -6.141 15.195 1.069 -6.486 13.978 1.069 -3.421 15.786
4 16 -1.069 2.986 18.427 -1.069 3.426 17.722 -1.069 1.251 18.986 -1.069 2.257 18.91
4 16 -1.069 -5.65 16.309 -1.069 -4.819 17.181 -1.069 -3.568 17.719 -1.069 -3.421 15.786
4 16 -1.069 1.251 18.986 -1.069 3.426 17.722 -1.069 -3.421 15.786 -1.069 -3.568 17.719
4 16 -1.069 -6.485 13.488 -1.069 -6.486 13.978 -1.069 -6.141 15.195 -1.069 -3.421 14.624
4 16 -1.069 -3.421 15.786 -1.069 -3.421 14.624 -1.069 -6.141 15.195 -1.069 -5.65 16.309
4 16 7.341 11.261 17.288 7.449 10.547 16.833 -7.449 10.547 16.833 -7.341 11.261 17.288
4 16 -7.449 10.547 16.833 7.449 10.547 16.833 7.666 10.35 16.045 -7.666 10.35 16.045
4 16 -7.988 11.582 15.028 -7.881 10.763 15.325 7.881 10.763 15.325 7.988 11.582 15.028
4 16 7.666 10.35 16.045 7.881 10.763 15.325 -7.881 10.763 15.325 -7.666 10.35 16.045
4 16 8.222 18.906 14.982 11.939 21.193 14.912 -11.939 21.193 14.912 -8.222 18.906 14.982
4 16 -7 17.567 19.146 7 17.567 19.146 7.341 11.261 17.288 -7.341 11.261 17.288
4 16 8.222 18.906 14.982 -8.222 18.906 14.982 -7.988 11.582 15.028 7.988 11.582 15.028
0 // Edge Lines
2 24 1.069 -3.568 17.719 1.069 1.251 18.986
2 24 -1.069 2.986 18.427 -1.069 2.257 18.91
2 24 1.069 -6.141 15.195 1.069 -5.65 16.309
2 24 -1.069 3.426 17.722 -1.069 2.986 18.427
2 24 -1.069 -6.141 15.195 -1.069 -6.486 13.978
2 24 1.069 -6.485 13.488 1.069 -6.486 13.978
2 24 -1.069 -3.568 17.719 -1.069 -4.819 17.181
2 24 -1.069 2.257 18.91 -1.069 1.251 18.986
2 24 1.069 2.257 18.91 1.069 2.986 18.427
2 24 1.069 -6.486 13.978 1.069 -6.141 15.195
2 24 -1.069 -4.819 17.181 -1.069 -5.65 16.309
2 24 1.069 1.251 18.986 1.069 2.257 18.91
2 24 -1.069 3.426 17.722 1.069 3.426 17.722
2 24 -1.069 -5.65 16.309 -1.069 -6.141 15.195
2 24 1.069 2.986 18.427 1.069 3.426 17.722
2 24 -1.069 -6.486 13.978 -1.069 -6.485 13.488
2 24 -1.069 1.251 18.986 -1.069 -3.568 17.719
2 24 1.069 -5.65 16.309 1.069 -4.819 17.181
2 24 1.069 -4.819 17.181 1.069 -3.568 17.719
2 24 -11.939 21.193 14.912 11.939 21.193 14.912
0 // Conditional Lines
5 24 1.069 -5.65 16.309 -1.069 -5.65 16.309 -1.069 -6.141 15.195 1.069 -4.819 17.181
5 24 1.069 2.986 18.427 -1.069 2.986 18.427 -1.069 2.257 18.91 1.069 3.426 17.722
5 24 1.069 -6.485 13.488 -1.069 -6.485 13.488 1.069 -6.486 13.978 0 -6.401 12.378
5 24 1.069 -6.486 13.978 -1.069 -6.486 13.978 -1.069 -6.485 13.488 1.069 -6.141 15.195
5 24 1.069 -3.568 17.719 -1.069 -3.568 17.719 -1.069 -4.819 17.181 1.069 1.251 18.986
5 24 1.069 1.251 18.986 -1.069 1.251 18.986 1.069 2.257 18.91 -1.069 -3.568 17.719
5 24 1.069 -6.141 15.195 -1.069 -6.141 15.195 -1.069 -6.486 13.978 1.069 -5.65 16.309
5 24 1.069 -4.819 17.181 -1.069 -4.819 17.181 -1.069 -5.65 16.309 1.069 -3.568 17.719
5 24 1.069 2.257 18.91 -1.069 2.257 18.91 -1.069 1.251 18.986 1.069 2.986 18.427
5 24 7 17.567 19.146 -7 17.567 19.146 0 22.679 20.639 7.341 11.261 17.288
5 24 7.666 10.35 16.045 -7.666 10.35 16.045 -7.449 10.547 16.833 7.881 10.763 15.325
5 24 7.988 11.582 15.028 -7.988 11.582 15.028 -7.881 10.763 15.325 8.222 18.906 14.982
5 24 8.222 18.906 14.982 -8.222 18.906 14.982 -7.988 11.582 15.028 11.939 21.193 14.912
5 24 7.449 10.547 16.833 -7.449 10.547 16.833 7.666 10.35 16.045 -7.341 11.261 17.288
5 24 7.341 11.261 17.288 -7.341 11.261 17.288 7.449 10.547 16.833 -7 17.567 19.146
5 24 11.939 21.193 14.912 8.222 18.906 14.982 -11.939 21.193 14.912 11.733 19.956 15.188
5 24 7.881 10.763 15.325 -7.881 10.763 15.325 7.988 11.582 15.028 -7.666 10.35 16.045
5 24 -11.939 21.193 14.912 -8.222 18.906 14.982 8.222 18.906 14.982 -11.733 19.956 15.188
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2025-06-16 12:48:14
2025-06-16 12:49:06
2025-06-16 12:54:46
Forum request:
https://forums.ldraw.org/thread-28865-post-57645.html#pid57645
Not entirely sure about the prim usage on the front stud either, but using a direct stud prim will likely break the geometry.
Should the ridges at the back be sub-filed?
https://forums.ldraw.org/thread-28865-post-57645.html#pid57645
Not entirely sure about the prim usage on the front stud either, but using a direct stud prim will likely break the geometry.
Should the ridges at the back be sub-filed?
2025-06-16 12:59:18
could use chrd+cyli and aforementioned motorcycle helmet subfile
2025-06-16 13:42:08
The only part from 30124b.dat that comes close, is 30124bs02.dat and that doesn't match that one's geometry either. The visor dimples aren't as equal as it seems. The hose requires the visor to be slightly higher.
Since nothing in back area is exactly rectangular, I wouldn't want to use prims here due to rounding errors.
Since nothing in back area is exactly rectangular, I wouldn't want to use prims here due to rounding errors.
2025-06-16 13:53:58
I think this should work:
1 1 0 24.3156 -17.9463 1 0 0 0 -.27434 .96163 0 .96163 .27434 stud2a.dat
1 1 0 24.3156 -17.9463 -6 0 0 0 -1.09736 -5.7698 0 3.84652 -1.64604 2-4cyli.dat
1 1 0 24.3156 -17.9463 0 0 -6 5.7698 -1.09736 0 1.64604 3.84652 0 1-4cyls.dat
1 1 0 24.3156 -17.9463 0 0 6 5.7698 -1.09736 0 1.64604 3.84652 0 1-4cyls.dat
Note the stud2a ia mirrored, I mirrored the oppisite stud and moved it by 40 LDUon its axis.
If it is doen as suggested, snapping would work without additional efforts
1 1 0 24.3156 -17.9463 1 0 0 0 -.27434 .96163 0 .96163 .27434 stud2a.dat
1 1 0 24.3156 -17.9463 -6 0 0 0 -1.09736 -5.7698 0 3.84652 -1.64604 2-4cyli.dat
1 1 0 24.3156 -17.9463 0 0 -6 5.7698 -1.09736 0 1.64604 3.84652 0 1-4cyls.dat
1 1 0 24.3156 -17.9463 0 0 6 5.7698 -1.09736 0 1.64604 3.84652 0 1-4cyls.dat
Note the stud2a ia mirrored, I mirrored the oppisite stud and moved it by 40 LDUon its axis.
If it is doen as suggested, snapping would work without additional efforts
2025-06-16 15:09:37
Remember looking into this one when I was working on 30124b.
Very similar, but different.
The only objection I have to this one, is that the inside should be adapted to the 16-sided standard head.
And maybe even a hi-res head, around the face.
1 46 0 4 0 13 0 0 0 13 0 0 0 13 48\4-4cyli.dat
Very similar, but different.
The only objection I have to this one, is that the inside should be adapted to the 16-sided standard head.
And maybe even a hi-res head, around the face.
1 46 0 4 0 13 0 0 0 13 0 0 0 13 48\4-4cyli.dat
2025-06-16 15:12:20
agree a slanted 2-4ndis would do the job
2025-06-16 16:16:35
also on that legal technique you discovered it works on ldd
