File Detail parts/3049b.dat

Official File parts/3049b.dat

Part Attributes:

File Header:

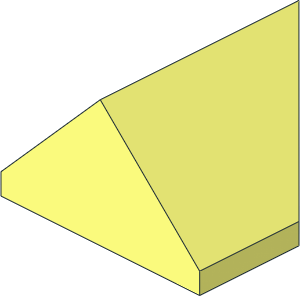

0 Slope Brick 45  1 x  2 Double / Inverted
0 Name: 3049b.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2009-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 1998-06-20 [PTadmin] Official Update 1998-06
0 !HISTORY 2002-09-13 [izanette] Modified with WINDZ for BFC compliance
0 !HISTORY 2003-12-19 [PTadmin] Official Update 2003-03
0 !HISTORY 2007-06-10 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [PTadmin] Renamed from 3049
0 !HISTORY 2009-09-03 [PTadmin] Official Update 2009-02

Show contents

1 16 0 20 0 1 0 0 0 -1 0 0 0 1 stud3a.dat
1 16 0 4 0 0 -0.707 4 0 0.707 4 4 0 0 2-4edge.dat
1 16 0 4 0 0 0.707 -4 0 0.707 4 4 0 0 2-4edge.dat
1 16 0 8 0 4 0 0 0 -4 0 0 0 4 1-4cyls.dat
1 16 0 8 0 -4 0 0 0 -4 0 0 0 4 1-4cyls.dat
1 16 0 8 0 4 0 0 0 -4 0 0 0 -4 1-4cyls.dat
1 16 0 8 0 -4 0 0 0 -4 0 0 0 -4 1-4cyls.dat
1 16 0 8 0 4 0 0 0 12 0 0 0 4 4-4cyli.dat

2 24 16 24 6 -16 24 6
2 24 -16 24 6 -16 24 -6
2 24 -16 24 -6 16 24 -6
2 24 16 24 -6 16 24 6

2 24 20 24 10 -20 24 10
2 24 -20 24 10 -20 24 -10
2 24 -20 24 -10 20 24 -10
2 24 20 24 -10 20 24 10

2 24 16 24 6 16 20 6
2 24 -16 24 6 -16 20 6
2 24 16 24 -6 16 20 -6
2 24 -16 24 -6 -16 20 -6
2 24 16 20 6 16 20 -6
2 24 0 4 6 0 4 -6
2 24 0 4 26 0 4 10
2 24 -16 20 6 -16 20 -6
2 24 16 20 10 0 4 26
2 24 16 20 10 0 4 10
2 24 16 20 6 0 4 6
2 24 16 20 -6 0 4 -6
2 24 -16 20 10 0 4 26
2 24 -16 20 10 0 4 10
2 24 -16 20 6 0 4 6
2 24 -16 20 -6 0 4 -6

2 24 20 24 10 20 20 10
2 24 -20 24 10 -20 20 10
2 24 20 24 -10 20 20 -10
2 24 -20 24 -10 -20 20 -10
2 24 20 20 10 20 20 -10
2 24 0 0 30 0 0 -10
2 24 -20 20 10 -20 20 -10
2 24 20 20 10 16 20 10
2 24 -20 20 10 -16 20 10
2 24 20 20 10 0 0 30
2 24 20 20 -10 0 0 -10
2 24 -20 20 10 0 0 30
2 24 -20 20 -10 0 0 -10

4 16 20 24 10 16 24 6 -16 24 6 -20 24 10
4 16 -20 24 10 -16 24 6 -16 24 -6 -20 24 -10
4 16 -20 24 -10 -16 24 -6 16 24 -6 20 24 -10
4 16 20 24 -10 16 24 -6 16 24 6 20 24 10

4 16 20 24 10 20 20 10 20 20 -10 20 24 -10
4 16 16 24 6 16 24 -6 16 20 -6 16 20 6
4 16 -16 24 6 -16 20 6 -16 20 -6 -16 24 -6
4 16 -20 24 10 -20 24 -10 -20 20 -10 -20 20 10

4 16 20 24 10 -20 24 10 -20 20 10 20 20 10
3 16 16 20 10 -16 20 10 0 4 10
4 16 16 24 6 16 20 6 -16 20 6 -16 24 6
3 16 16 20 6 0 4 6 -16 20 6
4 16 16 24 -6 -16 24 -6 -16 20 -6 16 20 -6
3 16 16 20 -6 -16 20 -6 0 4 -6
4 16 20 24 -10 20 20 -10 -20 20 -10 -20 24 -10
3 16 20 20 -10 0 0 -10 -20 20 -10

4 16 20 20 10 16 20 10 0 4 26 0 0 30
4 16 -20 20 10 0 0 30 0 4 26 -16 20 10

4 16 16 20 10 16 20 -6 0 4 -6 0 4 26
4 16 -16 20 10 0 4 26 0 4 -6 -16 20 -6
4 16 20 20 10 0 0 30 0 0 -10 20 20 -10
4 16 -20 20 10 -20 20 -10 0 0 -10 0 0 30

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

None
