Unofficial File parts/2431p80.dat
Part Attributes:
Base Part: 2431.dat
File Header:

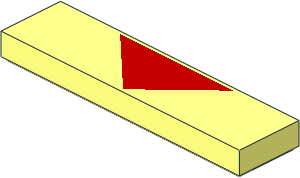

0 Tile 1 x 4 with Red Triangle Pattern
0 Name: 2431p80.dat
0 Author: Peter Grass [Evilspyre]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Brickheadz, BrickLink 2431pb0862, Rebrickable 2431pr0204, Set 40672
0 !KEYWORDS Shadow the Hedgehog, Sonic
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2431s01.dat
3 4 19 0 9 -19 0 9 0 0 -9
3 16 0 0 -9 -40 0 -10 40 0 -10
4 16 40 0 10 19 0 9 0 0 -9 40 0 -10
4 16 -19.0 0 9 -40 0 10 -40 0 -10 0 0 -9
4 16 -19 0 9 19 0 9 40 0 10 -40 0 10
Status:
Errors Found (CHN)
Current Votes:
| User | Vote |
|---|---|
| Blechtaler | Hold |
| KnightOfTarenta | Certify |
Official parents and subparts
Part Events:
2025-06-27 08:56:42
2025-07-07 08:29:27
I deleted the p862 as the p80 has correct pattern geometry according to this comment by Chris:
*offset at top and bottom should be equal (choose either 1 or 0.5 LDU)
*currently the top is 43 LDU long. This is meant to align with a 2 stud curved slope on top of it. so this shouldn't be longer 40 LDU. Ideally this should have then the same offset as top/bottom, resulting in total length of 39 or 38 LDU (depending on which you choose for the former)
*offset at top and bottom should be equal (choose either 1 or 0.5 LDU)
*currently the top is 43 LDU long. This is meant to align with a 2 stud curved slope on top of it. so this shouldn't be longer 40 LDU. Ideally this should have then the same offset as top/bottom, resulting in total length of 39 or 38 LDU (depending on which you choose for the former)
Yes, this seems correct to me.
Rene, please lift your hold (unless there's something else).
Rene, please lift your hold (unless there's something else).
2025-07-07 15:37:56
part itself would be ok (the -19.0 decimal is negligible)
the part number is wrong (reason in the hold above, 8X is Modern Town (doesnt apply), should be zX, with X counted up)
the part number is wrong (reason in the hold above, 8X is Modern Town (doesnt apply), should be zX, with X counted up)
2025-07-07 15:40:35
This isn't a valid reason for a hold. The suffix categories are depreciated.
2025-07-07 19:23:31
we can still follow them as far as possible, and its just a small edit for the admins
2025-07-07 19:51:37
Still not a valid hold reason.
2025-07-07 19:52:08
Plus I read every comment before I cert so I'll change it.
Creative Commons Attribution License information
This part is copyright © Peter Grass
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
https://www.ldraw.org/part-number-spec.html under Patterned Part Code
says: zX - Brickheadz
if you look here, there are already numbers in that area:
https://library.ldraw.org/parts/search/suffix?basepart=2431
-> this part should be renamed to 2431pzx.dat (ask an admin for that)
