Unofficial File parts/s/7302s01.dat

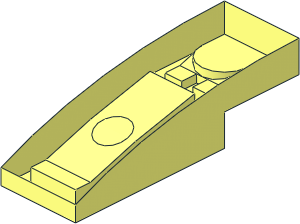

~Slope Brick Curved 3 x 1 without Top Surface
File Header:
0 ~Slope Brick Curved 3 x 1 without Top Surface 0 Name: s\7302s01.dat 0 Author: Jeff Jones [notmaster] 0 !LDRAW_ORG Unofficial_Subpart 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW
Show contents
1 16 0 14 -30 10 0 0 0 0 -2 0 1 0 rect3.dat 4 16 6 16 6 -6 16 6 -10 16 10 10 16 10 4 16 6 16 -26 10 16 -30 -10 16 -30 -6 16 -26 4 16 6 16 -26 6 16 6 10 16 10 10 16 -30 4 16 -10 16 -30 -10 16 10 -6 16 6 -6 16 -26 0 BFC INVERTNEXT 1 16 0 14 -24 -6 0 0 0 -2 0 0 0 -2 box2-5.dat 1 16 0 10 -16 0 0 -6 2 -1 0 -6 0 0 rect2p.dat 4 16 -6 16 6 -6 4 6 -6 8 -10 -6 16 -26 4 16 6 8 -10 6 4 6 6 16 6 6 16 -26 3 16 6 12 -22 6 8 -10 6 16 -26 3 16 -6 12 -22 -6 12 -26 -6 16 -26 3 16 -6 12 -22 -6 16 -26 -6 8 -10 3 16 6 12 -26 6 12 -22 6 16 -26 1 16 0 16 -10 6 0 0 0 1 0 0 0 16 recte4.dat 1 16 0 16 -10 10 0 0 0 1 0 0 0 20 recte4.dat 1 16 -10 40.972 30 0 1 0 -28.972 0 -28.972 -60 0 60 48\1-8chrd.dat 1 16 10 40.972 30 0 -1 0 -28.972 0 -28.972 -60 0 60 48\1-8chrd.dat 1 16 -10 40.972 30 0 1 0 -28.972 0 -28.972 -60 0 60 48\1-8edge.dat 1 16 10 40.972 30 0 1 0 -28.972 0 -28.972 -60 0 60 48\1-8edge.dat 3 16 -10 8 10 -10 12 -30 -10 0 30 4 16 -10 8 10 -10 16 10 -10 16 -30 -10 12 -30 3 16 10 8 10 10 0 30 10 12 -30 4 16 10 8 10 10 12 -30 10 16 -30 10 16 10 1 16 0 4 30 -10 0 0 0 0 -4 0 -1 0 rect3.dat 4 16 6 8 26 -6 8 26 -10 8 30 10 8 30 4 16 -6 8 26 -6 8 10 -10 8 10 -10 8 30 4 16 10 8 30 10 8 10 6 8 10 6 8 26 2 24 -10 8 10 -6 8 10 2 24 10 8 10 6 8 10 0 BFC INVERTNEXT 1 16 0 6 23 -6 0 0 0 -2 0 0 0 3 box2-7.dat 1 16 0 8 18 -6 0 0 0 -1 0 0 0 8 recte3.dat 4 16 -6 4 20 -6 6 14 -6 8 26 -6 4 26 4 16 -6 6 10 -6 8 10 -6 8 26 -6 6 14 4 16 6 8 26 6 6 14 6 4 20 6 4 26 4 16 6 6 14 6 8 26 6 8 10 6 6 10 0 BFC INVERTNEXT 1 16 0 4 20 0 0 -6 0 2 0 6 0 0 1-4cyls2.dat 0 BFC INVERTNEXT 1 16 0 4 20 0 0 6 0 2 0 6 0 0 1-4cyls2.dat 1 16 0 4 20 -6 0 0 0 -1 0 0 0 -6 2-4edge.dat 1 16 0 4 20 -6 0 0 0 -1 0 0 0 -6 2-4chrd.dat 1 16 0 4 20 -6 0 0 0 -1 2 0 0 -6 2-4edge.dat 1 16 0 4 20 -6 0 0 0 -1 2 0 0 -6 2-4ndis.dat 2 24 -6 4 20 -6 6 14 2 24 6 4 20 6 6 14 2 24 -1.5 6 14 -6 6 14 2 24 1.5 6 14 6 6 14 0 BFC INVERTNEXT 1 16 -3.75 7 12 -2.25 0 0 0 -1 0 0 0 -2 box2-9.dat 1 16 0 6 12 1.5 0 0 0 2 0 0 0 2 box4-1.dat 0 BFC INVERTNEXT 1 16 3.75 7 12 2.25 0 0 0 -1 0 0 0 -2 box2-9.dat 1 16 0 12 10 10 0 0 0 0 4 0 -1 0 recte3.dat 3 16 -10 8 10 -6 8 10 -10 16 10 3 16 -10 16 10 -6 8 10 -1.5 8 10 3 16 1.5 8 10 6 8 10 10 16 10 4 16 -1.5 8 10 1.5 8 10 10 16 10 -10 16 10 3 16 10 16 10 6 8 10 10 8 10 3 16 -10 0 30 -10 8 30 -10 8 10 3 16 10 0 30 10 8 10 10 8 30 1 16 0 9.3 -10 1 0 0 0 -1.675 0 0 0 1 stud3a.dat 1 16 0 8 -10 0 0 4 0 -1 0 -4 0 0 1-4cyls2.dat 1 16 0 8 -10 0 0 -4 0 -1 0 -4 0 0 1-4cyls2.dat 1 16 0 9.3 -10 0 0 -4 0 -1.3 0 -4 0 0 1-4cyls.dat 1 16 0 9.3 -10 0 0 4 0 -1.3 0 -4 0 0 1-4cyls.dat 1 16 0 8 -10 -4 0 0 0 -1 -1 0 0 4 2-4edge.dat 1 16 0 8 -10 -4 0 0 0 -1 1.3 0 0 -4 2-4edge.dat 1 16 0 8 -10 -4 0 0 0 1.3 0 0 0 4 2-4cyli.dat 5 24 6 8 -10 -6 8 -10 6 12 -22 -6 4 6 0 BFC INVERTNEXT 1 16 0 12 -2 -6 0 0 0 -6 -2 0 0 8 box2-7.dat 1 16 0 8 20 10 0 0 0 1 0 0 0 10 recte3.dat
Status:
Not releaseable Errors Found (HN) Errors Found (HN)
This part has the following automated holds from the Parts Tracker
  • No path of certified files to a certified or official parent in the parts folder
Current Votes:
User Vote
GeraldLasser Hold
Official parents and subparts
Part Events:
Jeff Jones [notmaster]
Part Author
initially submitted the part.
2025-06-28 13:56:01
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2025-06-28 18:39:30
Since it's easy to achieve with prims, the stud3 should be shortened to fit bottom surface (and intersection line be made from a 4-4edge)
Jeff Jones [notmaster]
Part Author
submitted a new version of the part.
2025-06-28 19:29:48
Jeff Jones [notmaster]
Part Author
submitted a new version of the part.
2025-07-01 14:22:09
should the sides get subparted?
Jeff Jones [notmaster]
Part Author
submitted a new version of the part.
2025-07-06 12:24:03
Jeff Jones [notmaster]
Part Author
submitted a new version of the part.
2025-07-07 21:49:27
Jeff Jones [notmaster]
Part Author
submitted a new version of the part.
2025-07-07 22:26:18
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-07-07 22:52:37
would this result in a better curve?
1 16 -10 40.9696 30 0 1 0 -40.9696 0 0 0 0 -84.8536 48\1-8chrd.dat
(different starting point, no rotation) -> for all chrd+edge+cyli
Mark Kennedy [mkennedy]
Part Reviewer
made the following comment.
2025-07-10 07:01:47
Might be able to use box2-5 primitive.
Jeff Jones [notmaster]
Part Author
submitted a new version of the part.
2025-07-10 09:03:24
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2025-07-10 12:05:25
If you use rect1 here include the two edges to form a rect3
1 16 0 6 -2 0 0 6 -2 -1 0 8 0 0 rect1.dat
2 24 -6 8 -10 -6 4 6
2 24 6 8 -10 6 4 6

->
1 16 0 6 -2 -6 0 0 0 -1 -2 0 0 8 rect3.dat

or even include
1 16 0 10 6 0 0 6 6 0 0 0 1 0 rect2p.dat

to form:
0 BFC INVERTNEXT
1 10 0 12 -2 -6 0 0 0 -6 -2 0 0 8 box2-7.dat

Merge those:
3 16 -10 12 -30 -10 8 10 -10 16 10
3 16 -10 12 -30 -10 16 10 -10 16 -30
3 16 10 8 10 10 12 -30 10 16 10
3 16 10 16 10 10 12 -30 10 16 -30

to
4 16 -10 8 10 -10 16 10 -10 16 -30 -10 12 -30
4 16 10 16 -30 10 16 10 10 8 10 10 12 -30
Jeff Jones [notmaster]
Part Author
submitted a new version of the part.
2025-07-10 13:02:40
Gerald Lasser [GeraldLasser]
Part Library Admin
posted a vote of Certify.
2025-07-10 13:16:13
Mark Kennedy [mkennedy]
Part Reviewer
posted a vote of Certify.
2025-07-11 08:32:54
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2025-07-17 21:40:55
One of the cyls is to tall
1 16 0 9.3 -10 0 0 -4 0 -1.3 0 -4 0 0 1-4cyls.dat
1 16 0 9.3 -10 0 0 4 0 -1.4 0 -4 0 0 1-4cyls.dat
Jeff Jones [notmaster]
Part Author
submitted a new version of the part.
2025-07-23 21:05:08
Mark Kennedy [mkennedy]
Part Reviewer
made the following comment.
2025-07-25 02:13:52
For the walls of the inside of the larger space I would suggest using two quads rather a quad and two triangles.
Gerald Lasser [GeraldLasser]
Part Library Admin
posted a vote of Certify.
2025-08-29 12:15:38
Gerald Lasser [GeraldLasser]
Part Library Admin
posted a vote of Hold.
2025-08-29 12:49:06
the bottom rect4 overlap to edges
change 1 16 0 16 -10 10 0 0 0 1 0 0 0 20 recte4.dat
to
1 16 0 16 -10 10 0 0 0 1 0 0 0 -20 recte3.dat

change 1 16 0 16 -10 6 0 0 0 1 0 0 0 16 recte4.dat
to
1 16 0 16 -10 6 0 0 0 1 0 0 0 16 recte3.dat
