Unofficial File parts/s/stickerback034x064.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

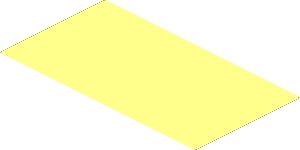

0 ~Sticker Back 3.4 x 6.4
0 Name: s\stickerback034x064.dat
0 Author: Willy Tschager [Holly-Wood]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show file code:
0 // Stickerback for a 68.5 x 127.5 LDU Sticker with a rounded corner 1.5 LDU and 2 LDU distance from the parts edge to be placed on 57895 - Glass for Window 1 x 4 x 6
1 16 62.25 0 32.75 1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 -62.25 0 32.75 -1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 0 -.25 0 0 0 63.75 0 .25 0 32.75 0 0 box3u12.dat
1 16 62.25 0 -32.75 1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 16 -62.25 0 -32.75 -1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 16 62.25 0 32.75 1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 -62.25 0 32.75 -1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 62.25 0 -32.75 1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 -62.25 0 -32.75 -1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
4 16 -62.25 0 34.25 62.25 0 34.25 63.75 0 32.75 -63.75 0 32.75
4 16 63.75 0 -32.75 62.25 0 -34.25 -62.25 0 -34.25 -63.75 0 -32.75
4 16 -62.25 0 -34.25 62.25 0 -34.25 62.25 -.25 -34.25 -62.25 -.25 -34.25
4 16 62.25 -.25 34.25 62.25 0 34.25 -62.25 0 34.25 -62.25 -.25 34.25Status
Awaiting Admin Review (CCN)
Current Votes:
Magnus Forsberg [MagFors]
Takeshi Takahashi [RainbowDolphin]
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Part Dependencies
Official parents and subparts
Part Events
Willy Tschager [Holly-Wood]
initially submitted the part.
2025-06-30 15:12:59
Substitutes texture with vector
Magnus Forsberg [MagFors]
made the following comment.
2025-06-30 15:42:04
Do we really want to have a difference between description and filename? ZxX and XxZ
Why is this orientation choosen? I think the spec says "landscape" is prefered.
If sticker backsides are allowed to be rotated, which should be the default orientation?
Why is this orientation choosen? I think the spec says "landscape" is prefered.
If sticker backsides are allowed to be rotated, which should be the default orientation?
Willy Tschager [Holly-Wood]
made the following comment.
2025-06-30 17:07:45
https://www.ldraw.org/article/512.html#sticker_orientation
"Top is defined as either the logical top of a picture, text, etc. or, in the case of more abstract patterns, what the top is when the sticker is applied."
There are just 3 stickers of this size on the PT fitting 57895 - Glass for Window 1 x 4 x 6. This is the logical top.
"Top is defined as either the logical top of a picture, text, etc. or, in the case of more abstract patterns, what the top is when the sticker is applied."
There are just 3 stickers of this size on the PT fitting 57895 - Glass for Window 1 x 4 x 6. This is the logical top.
Rene Rechthaler [Blechtaler]
posted a vote of Hold
2025-06-30 17:19:25
uses cylc, which has 1-4disc prim -> overlaps
needs cyli+chrd
needs cyli+chrd
Willy Tschager [Holly-Wood]
submitted a new version of the part (all votes reset).
2025-06-30 17:45:28
Magnus Forsberg [MagFors]
made the following comment.
2025-06-30 19:46:47
That's a valid orientation for the pattern and top surface.
My question is, how should the standardized backside be oriented?
My question is, how should the standardized backside be oriented?
Willy Tschager [Holly-Wood]
made the following comment.
2025-06-30 21:10:53
Not my business. The stickerback is in sync with the current draft since landscape isn't mentioned anywhere.
Orion Pobursky [OrionP]
made the following comment.
2025-07-01 01:22:24
@Magnus Gimme a bit to post the final draft and I'll open a thread in the admin team forum
Willy Tschager [Holly-Wood]
renamed the part.
2025-07-18 09:16:17
"parts/s/stickerback034x064.dat" to "parts/s/stickerback064x034.dat"
Willy Tschager [Holly-Wood]
edited the part header.
2025-07-19 09:38:02
Header Edits
description:
~Stickerback for Sticker 6.4 x 3.4
to
~Sticker Back 6.4 x 3.4
Sanded description
Massimo Maso [Sirio]
made the following comment.
2025-07-24 21:47:42
Wrong name and description: it must be 034 x 064.
I could upload the correct version, but it is better to change the part name before.
I could upload the correct version, but it is better to change the part name before.
Magnus Forsberg [MagFors]
renamed the part.
2025-07-27 11:04:05
"parts/s/stickerback064x034.dat" to "parts/s/stickerback034x064.dat"
Magnus Forsberg [MagFors]
made the following comment.
2025-07-27 11:04:25
Pending re-orientation
Massimo Maso [Sirio]
submitted a new version of the part (all votes reset).
2025-07-28 22:04:44
Willy Tschager [Holly-Wood]
posted a vote of Hold
2025-07-29 07:51:44
* Why has this been rotated?
Magnus Forsberg [MagFors]
edited the part header.
2025-07-30 06:26:36
Header Edits
description:
~Sticker Back 6.4 x 3.4
to
~Stickerback 6.4 x 3.4
Willy Tschager [Holly-Wood]
made the following comment.
2025-07-30 08:02:25
* I'm asking again: Why has this been rotated?
Magnus Forsberg [MagFors]
made the following comment.
2025-07-30 10:42:38
"Orientation should follow the general sticker orientation requirements."
https://www.ldraw.org/docs-main/ldraw-org-official-library-standards/sticker-box-standard.html
"... sticker should be oriented such that X value is greater that Z (Landscape)."
https://www.ldraw.org/article/512.html#sticker_orientation
https://www.ldraw.org/docs-main/ldraw-org-official-library-standards/sticker-box-standard.html
"... sticker should be oriented such that X value is greater that Z (Landscape)."
https://www.ldraw.org/article/512.html#sticker_orientation
Magnus Forsberg [MagFors]
edited the part header.
2025-07-30 10:44:04
Header Edits
description:
~Stickerback 6.4 x 3.4
to
~Stickerback 3.4 x 6.4
Willy Tschager [Holly-Wood]
made the following comment.
2025-07-31 11:11:48
* When quoting you should at least quote the entire paragraph:
"Sticker patterns should be oriented so that top is aligned with +Z axis.
Top is defined as either the logical top of a picture, text, etc. or, in the case of more abstract patterns, what the top is when the sticker is applied.
When in doubt, sticker should be oriented such that X value is greater that Z (Landscape)."
IMHO it is clear where the "logical top of a picture" is. And since there is currently no other sticker of this size on the PT is is also clear to what this sticker back it tight to.
Please restore the original orientation of this sub.
"Sticker patterns should be oriented so that top is aligned with +Z axis.
Top is defined as either the logical top of a picture, text, etc. or, in the case of more abstract patterns, what the top is when the sticker is applied.
When in doubt, sticker should be oriented such that X value is greater that Z (Landscape)."
IMHO it is clear where the "logical top of a picture" is. And since there is currently no other sticker of this size on the PT is is also clear to what this sticker back it tight to.
Please restore the original orientation of this sub.
Philippe Hurbain [Philo]
made the following comment.
2025-07-31 12:11:36
I would hugely prefer to see all stickerbacks to have a landscape orientation regardless of image or part orientation so that a single stickerback034x064 could be used for sticker 3.4 x 6.4 AND 6.4 x 3.4 !!!
Magnus Forsberg [MagFors]
made the following comment.
2025-07-31 12:29:08
First usage doesn't dictate the orientation. The standard does.
What's the point in having a standard if we immediately start breaking it?
What's the point in having a standard if we immediately start breaking it?
Willy Tschager [Holly-Wood]
made the following comment.
2025-07-31 12:48:31
* This is perfectly in sync with the standard. Feel free to adjust the standard to your preferences.
BTW the library is full of parts which respond to different standards as we have just recently seen with the origin of some duplo parts:
https://library.ldraw.org/parts/801
https://library.ldraw.org/parts/5468
https://library.ldraw.org/parts/9788
BTW the library is full of parts which respond to different standards as we have just recently seen with the origin of some duplo parts:
https://library.ldraw.org/parts/801
https://library.ldraw.org/parts/5468
https://library.ldraw.org/parts/9788
Orion Pobursky [OrionP]
made the following comment.
2025-07-31 12:57:48
"When in doubt, sticker should be oriented such that X value is greater that Z (Landscape)."
A sticker back file is top agnostic and therefore should follow the above. I can make that explicit but I felt it redundant.
A sticker back file is top agnostic and therefore should follow the above. I can make that explicit but I felt it redundant.
Willy Tschager [Holly-Wood]
made the following comment.
2025-07-31 13:01:47
* There is no doubt, were the "logical" top of this sticker is.
Magnus Forsberg [MagFors]
made the following comment.
2025-07-31 13:38:39
Not following a unwritten standard back then, is not a good reason to not follow a written one today.
Orion Pobursky [OrionP]
made the following comment.
2025-07-31 13:50:49
Once again, the back doesn't care about what's on the top. Since the top content is unknown, there is "doubt" and the default orientation (landscape) should be used.
To answer my own question, I guess I need to make this more explicit.
To answer my own question, I guess I need to make this more explicit.
Willy Tschager [Holly-Wood]
cancelled their vote.
2025-08-02 17:23:36
Magnus Forsberg [MagFors]
posted a vote of Certify
2025-08-02 20:54:41
Takeshi Takahashi [RainbowDolphin]
posted a vote of Certify
2025-08-02 23:46:10
