File Detail parts/u7000.dat

Unofficial File parts/u7000.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

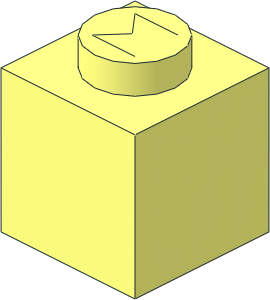

0 Modulex Brick  1 x  1
0 Name: u7000.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Bricklink Mx1111M, Peeron x703, Rebrickable 1111M

0 !HISTORY 2024-01-07 [MagFors] Original design by Tore Eriksson as brk0101

Show contents

1 16 0 12.5 0 6.25 0 0 0 -12.5 0 0 0 6.25 box5.dat
0 BFC INVERTNEXT
1 16 0 12.5 0 3.75 0 0 0 -10 0 0 0 3.75 box5.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 mstud.dat
4 16 -6.25 12.5 -6.25 -3.75 12.5 -3.75 3.75 12.5 -3.75 6.25 12.5 -6.25
4 16 -6.25 12.5 6.25 6.25 12.5 6.25 3.75 12.5 3.75 -3.75 12.5 3.75
4 16 -6.25 12.5 -6.25 -6.25 12.5 6.25 -3.75 12.5 3.75 -3.75 12.5 -3.75
4 16 6.25 12.5 -6.25 3.75 12.5 -3.75 3.75 12.5 3.75 6.25 12.5 6.25

Status:

Awaiting Admin Review (CCN)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

p/mstud.dat (Awaiting Admin Review)

Current Votes:

User	Vote
Philo	Certify
KnightOfTarenta	Certify

Official parents and subparts

Part Events:

Magnus Forsberg [MagFors]

initially submitted the part.

2025-07-06 13:13:27

Chris Böhnke [KnightOfTarenta]

made the following comment.

2025-07-06 15:29:16

It seems Modulex studs do fit in 3.18 holes, which would make them 8 LDU in diameter (instead of 7.5).
https://www.flickr.com/photos/ltdemartinet/8331549172/in/photolist-dGeniw-Gduz8f-fu26Ed-GbWeso-GduES1-FH7Kuj-GCD73r-GwR9xp-22E9bZo-GAiy2y-GAizUw-22ntqAg-23JVqqr-cUYttQ-JMZ8sp-22E9hss-etGyuc-GB6Pk6-cV6Koh-pnfNUt

Was this ever mentioned anywhere in detail?

Philippe Hurbain [Philo]

made the following comment.

2025-07-06 15:51:43

There's a comment by Ryan Howerter's on his image, saying that stud diameter is slightly lower than bar diameter. I tested myself, modulex studs do fit LEGO clips, but it's pretty loose. So 7.5ldu diameter seems fine to me.

Philippe Hurbain [Philo]

made the following comment.

2025-07-06 16:06:50

...and calipers say between 2.98 and 3.02mm, so 7.5ldu is definitely the right value.

Chris Böhnke [KnightOfTarenta]

posted a vote of Certify.

2025-07-06 16:07:33

@Philo: Thanks for clarifying!

Magnus Forsberg [MagFors]

made the following comment.

2025-07-06 16:45:57

And our "bar"-size is 3.2mm, compaired to LEGO "3.18" dimension used in many part descriptions.
