File Detail parts/s/7301s01.dat

Unofficial File parts/s/7301s01.dat

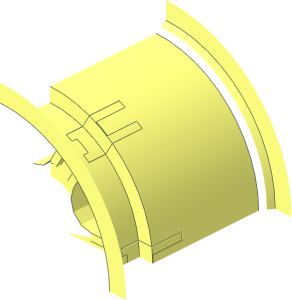

~Wheel Rim 20 x 30 with Six Spokes and Center Lock - Quarter Rim

File Header:

0 ~Wheel Rim 20 x 30 with Six Spokes and Center Lock - Quarter Rim
0 Name: s\7301s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // rim
1 16 0 0 25 2 0 0 0 0 -2 0 -1 0 48\1-4ring18.dat
1 16 0 0 25 3 0 0 0 0 -3 0 -1 0 48\1-4ring11.dat
1 16 0 0 25 33 0 0 0 0 -33 0 1 0 48\1-4edge.dat
0 BFC INVERTNEXT
1 16 0 0 25 1 0 0 0 0 -1 0 -1.5 0 48\1-4con32.dat
0 BFC INVERTNEXT
1 16 0 0 22 31 0 0 0 0 -31 0 -32 0 48\1-4cylo.dat
1 16 0 0 -10 1 0 0 0 0 -1 0 -1 0 48\1-4ring30.dat
1 16 0 0 -10 3 0 0 0 0 -3 0 -1 0 48\1-4ring9.dat
0 BFC INVERTNEXT
1 16 0 0 -18 27 0 0 0 0 -27 0 8 0 48\1-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -19 1 0 0 0 0 -1 0 1 0 48\1-4con27.dat
0 BFC INVERTNEXT
1 16 0 0 -20 1 0 0 0 0 -1 0 1 0 48\1-4con28.dat
1 16 0 0 -20 29 0 0 0 0 -29 0 1 0 48\1-4edge.dat
1 16 0 0 -20 1 0 0 0 0 -1 0 1 0 48\1-4ring29.dat
1 16 0 0 -20 1 0 0 0 0 -1 0 1 0 48\1-4ring30.dat
0 BFC INVERTNEXT
1 16 0 0 -22 31 0 0 0 0 -31 0 2 0 48\1-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -25 1 0 0 0 0 -1 0 1.5 0 48\1-4con32.dat
1 16 0 0 -25 33 0 0 0 0 -33 0 1 0 48\1-4edge.dat
1 16 0 0 -25 3 0 0 0 0 -3 0 1 0 48\1-4ring11.dat
1 16 0 0 -25 2 0 0 0 0 -2 0 1 0 48\1-4ring18.dat

0 // Spokes
1 16 22.161 -3 -14.3 4.84 0 0 0 1 0 0 0 -.7 box2-9p.dat
1 16 13.679 -17.692 -14.3 2.42 -.866 0 -4.192 -.5 0 0 0 -.7 box2-9p.dat
1 16 8.482 -20.692 -14.3 2.42 .866 0 -4.192 .5 0 0 0 -.7 box2-9p.dat
1 16 24.161 -3 -5.4 6.84 0 0 0 1 0 0 0 4.4 box2-9p.dat
1 16 14.679 -19.424 -5.4 3.42 -.866 0 -5.924 -.5 0 0 0 4.4 box2-9p.dat
1 16 9.482 -22.424 -5.4 3.42 .866 0 -5.924 .5 0 0 0 4.4 box2-9p.dat
4 16 17.321 -4 -1 17.321 -4 -15 27.001 -4 -15 27.001 -4 -10
4 16 17.321 -4 -1 27.001 -4 -10 31.001 -4 -10 31.001 -4 -1
4 16 12.125 -13 -1 18.965 -24.848 -1 18.965 -24.848 -10 16.965 -21.384 -10
4 16 12.125 -13 -1 16.965 -21.384 -10 16.965 -21.384 -15 12.125 -13 -15
4 16 5.196 -17 -1 5.196 -17 -15 10.036 -25.384 -15 10.036 -25.384 -10
4 16 5.196 -17 -1 10.036 -25.384 -10 12.036 -28.848 -10 12.036 -28.848 -1
4 16 17.321 -2 -9.8 31.001 -2 -9.8 31.001 0 -9.8 9 0 -9.8
4 16 17.233 -25.848 -9.8 10.393 -14 -9.8 6.928 -16 -9.8 13.768 -27.848 -9.8
4 16 27.001 -2 -13.6 17.321 -2 -13.6 9 0 -13.6 27.001 0 -13.6
4 16 11.768 -24.384 -13.6 6.928 -16 -13.6 10.393 -14 -13.6 15.233 -22.384 -13.6
2 24 26.8682 -2 -13.6 26.8682 -2 -15
2 24 26.6731 -4 -10 26.6731 -4 -15
2 24 11.7019 -24.2695 -15 11.7019 -24.2695 -13.6
2 24 15.167 -22.2697 -15 15.167 -22.2697 -13.6
2 24 16.8021 -21.1018 -10 16.8021 -21.1018 -15
2 24 9.8728 -25.1013 -10 9.8728 -25.1013 -15
2 24 30.8682 -2 -1 30.8682 -2 -9.8
2 24 17.167 -25.7337 -1 17.167 -25.7337 -9.8
2 24 30.7364 -4 -1 30.7364 -4 -10
2 24 13.7019 -27.7335 -9.8 13.7019 -27.7335 -1
2 24 11.9047 -28.6206 -1 11.9047 -28.6206 -10
2 24 18.8341 -24.6212 -1 18.8341 -24.6212 -10
2 24 30.7364 -4 -10 26.6731 -4 -10
2 24 30.7364 -4 -1 30.8682 -2 -1
2 24 30.8682 -2 -9.8 31 0 -9.8
2 24 26.6731 -4 -15 26.8682 -2 -15
2 24 26.8682 -2 -13.6 27 0 -13.6
2 24 11.7019 -24.2695 -15 10.3329 -24.9453 -15
2 24 13.5 -23.382 -13.6 11.7019 -24.2695 -13.6
2 24 16.4376 -21.4218 -15 15.167 -22.2697 -15
2 24 13.5 -23.382 -13.6 15.167 -22.2697 -13.6
2 24 16.4376 -21.4218 -15 16.8021 -21.1018 -15
2 24 9.8728 -25.1013 -15 10.3329 -24.9453 -15
2 24 17.167 -25.7337 -1 18.8341 -24.6212 -1
2 24 13.7019 -27.7335 -1 11.9047 -28.6206 -1
2 24 13.7019 -27.7335 -9.8 15.5 -26.846 -9.8
2 24 15.5 -26.846 -9.8 17.167 -25.7337 -9.8
2 24 18.8341 -24.6212 -10 16.8021 -21.1018 -10
2 24 11.9047 -28.6206 -10 9.8728 -25.1013 -10

0 // Spoke joiners
1 16 15.321 -2.536 -5.4 -2 0 0 -.536 -1 0 0 0 4.4 rect2p.dat
1 16 11.857 -4.536 -5.4 -1.464 0 0 -1.464 -1 0 0 0 4.4 rect2p.dat
1 16 9.857 -8 -5.4 .536 0 0 2 -1 0 0 0 4.4 rect2p.dat
1 16 9.857 -12 -5.4 -.536 0 0 2 1 0 0 0 4.4 rect2p.dat
1 16 2 -12.536 -5.4 2 0 0 -.536 -1 0 0 0 4.4 rect2p.dat
1 16 5.464 -14.536 -5.4 -1.464 0 0 1.464 -1 0 0 0 4.4 rect2p.dat
1 16 4.098 -15.902 -8 1.098 0 0 -1.098 1 0 0 0 7 rect2p.dat
1 16 1.5 -14.402 -8 1.5 0 0 -.402 1 0 0 0 7 rect2p.dat
1 16 15.821 -4.402 -8 -1.5 0 0 -.402 1 0 0 0 7 rect2p.dat
1 16 13.223 -5.902 -8 -1.098 0 0 -1.098 1 0 0 0 7 rect2p.dat
1 16 11.723 -8.5 -8 -.402 0 0 -1.5 1 0 0 0 7 rect2p.dat
1 16 11.723 -11.5 -8 -.402 0 0 1.5 -1 0 0 0 7 rect2p.dat
4 16 17.321 -4 -1 17.321 -2 -1 13.321 -3.072 -1 14.321 -4.804 -1
4 16 14.321 -4.804 -1 13.321 -3.072 -1 10.393 -6 -1 12.125 -7 -1
4 16 12.125 -7 -1 10.393 -6 -1 9.321 -10 -1 11.321 -10 -1
4 16 11.321 -10 -1 9.321 -10 -1 10.393 -14 -1 12.125 -13 -1
4 16 4 -13.072 -1 3 -14.804 -1 5.196 -17 -1 6.928 -16 -1
4 16 3 -14.804 -1 4 -13.072 -1 0 -12 -1 0 -14 -1
3 16 17.321 -2 -9.8 9 0 -9.8 13.321 -3.072 -9.8
3 16 10.393 -6 -9.8 13.321 -3.072 -9.8 9 0 -9.8
4 16 9 0 -9.8 9 -9 -9.8 9.321 -10 -9.8 10.393 -6 -9.8
3 16 9 -9 -9.8 4 -13.072 -9.8 9.321 -10 -9.8
4 16 4 -13.072 -9.8 9 -9 -9.8 0 -9 -9.8 0 -12 -9.8
4 16 6.928 -16 -9.8 10.393 -14 -9.8 9.321 -10 -9.8 4 -13.072 -9.8
1 16 0 0 -9.8 9 0 0 0 0 -9 0 -1 0 1-4ndis.dat

5 24 9.321 -10 -1 9.321 -10 -9.8 10.393 -14 -1 10.393 -6 -9.8
5 24 14.321 -4.804 -15 14.321 -4.804 -1 12.125 -7 -15 17.321 -4 -1
5 24 12.125 -7 -15 12.125 -7 -1 11.321 -10 -15 14.321 -4.804 -1
5 24 5.196 -17 -1 5.196 -17 -15 3 -14.804 -1 10.036 -25.384 -15
5 24 4 -13.072 -9.8 4 -13.072 -1 0 -12 -1 6.928 -16 -1
5 24 3 -14.804 -1 3 -14.804 -15 0 -14 -1 5.196 -17 -15
5 24 10.393 -6 -9.8 10.393 -6 -1 13.321 -3.072 -1 9.321 -10 -1
5 24 12.125 -13 -15 12.125 -13 -1 11.321 -10 -15 16.965 -21.384 -10
5 24 10.393 -14 -1 10.393 -14 -9.8 9.321 -10 -9.8 17.233 -25.848 -1
5 24 17.321 -2 -1 17.321 -2 -9.8 13.321 -3.072 -9.8 31.001 -2 -1
5 24 13.321 -3.072 -9.8 13.321 -3.072 -1 17.321 -2 -1 10.393 -6 -9.8
5 24 17.321 -4 -1 17.321 -4 -15 14.321 -4.804 -15 27.001 -4 -15
5 24 6.928 -16 -9.8 6.928 -16 -1 13.768 -27.848 -1 4 -13.072 -9.8
5 24 11.321 -10 -15 11.321 -10 -1 12.125 -7 -1 12.125 -13 -1
5 24 0 -12 -9.8 0 -12 -1 4 -13.072 -1 -1 -12 -1
5 24 0 -14 -15 0 -14 -1 3 -14.804 -1 -1 -14 -1

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Rene Rechthaler [Blechtaler]

initially submitted the part.

2025-07-07 10:18:24

Rene Rechthaler [Blechtaler]

made the following comment.

2025-07-07 10:27:24

should I extend the big inner cylo from R31 to R31.5? would slightly reduce prim count...
should I use hi-res prims for the spoke joiners? less code but much more vertices -> too much detail?
