File Detail parts/s/u7016s01.dat

Unofficial File parts/s/u7016s01.dat

File Header:

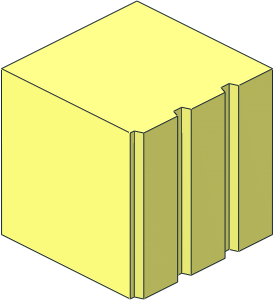

0 ~Modulex Profile Brick  1 x  1 x  Y
0 Name: s\u7016s01.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 5.625 6.25 -6.0625 0 -1 0 -6.25 0 0 0 0 -.1875 rect.dat
1 16 5.9375 6.25 -5.75 0 -1 .3125 6.25 0 0 0 0 .125 rect3.dat
1 16 6.25 6.25 -4.0625 0 -1 0 6.25 0 0 0 0 1.5625 rect3.dat
1 16 5.9375 6.25 -2.375 .3125 -1 0 0 0 6.25 -.125 0 0 rect2p.dat
1 16 5.625 6.25 -1.875 0 -1 0 -6.25 0 0 0 0 -.375 rect.dat
1 16 5.9375 6.25 -1.375 0 -1 .3125 6.25 0 0 0 0 .125 rect3.dat
1 16 6.25 6.25 .3125 0 -1 0 6.25 0 0 0 0 1.5625 rect3.dat
1 16 5.9375 6.25 2 0 -1 -.3125 6.25 0 0 0 0 .125 rect3.dat
1 16 5.625 6.25 2.5 0 -1 0 6.25 0 0 0 0 .375 rect3.dat
1 16 5.9375 6.25 3 0 -1 .3125 6.25 0 0 0 0 .125 rect3.dat
1 16 6.25 6.25 4.6875 0 -1 0 6.25 0 0 0 0 1.5625 rect3.dat
1 16 -.3125 6.25 -6.25 0 0 -5.9375 -6.25 0 0 0 1 0 rect3.dat
2 24 -6.25 12.5 6.25 -6.25 12.5 -6.25
2 24 3.75 12.5 6.25 6.25 12.5 6.25
2 24 -3.75 12.5 6.25 -6.25 12.5 6.25
2 24 -6.25 0 -6.25 -6.25 0 6.25
2 24 6.25 0 6.25 -6.25 0 6.25
2 24 -6.25 0 6.25 -6.25 12.5 6.25

3 16 5.625 0 2.125 5.625 0 2.875 -6.25 0 6.25
3 16 -6.25 0 -6.25 5.625 0 -2.25 5.625 0 -1.5
3 16 -6.25 0 -6.25 5.625 0 -5.875 5.625 0 -2.25
3 16 -6.25 0 -6.25 5.625 0 -6.25 5.625 0 -5.875
4 16 6.25 0 -2.5 5.625 0 -2.25 5.625 0 -5.875 6.25 0 -5.625
4 16 6.25 0 1.875 5.625 0 2.125 5.625 0 -1.5 6.25 0 -1.25
4 16 6.25 0 3.125 6.25 0 6.25 -6.25 0 6.25 5.625 0 2.875
4 16 -6.25 0 6.25 -6.25 0 -6.25 5.625 0 -1.5 5.625 0 2.125

3 16 5.625 12.5 -5.875 3.75 12.5 -3.75 5.625 12.5 -2.25
3 16 5.625 12.5 -5.875 5.625 12.5 -6.25 3.75 12.5 -3.75
3 16 5.625 12.5 -1.5 5.625 12.5 -2.25 3.75 12.5 -3.75
3 16 3.75 12.5 6.25 5.625 12.5 2.875 5.625 12.5 2.125
4 16 5.625 12.5 -5.875 5.625 12.5 -2.25 6.25 12.5 -2.5 6.25 12.5 -5.625
4 16 6.25 12.5 1.875 6.25 12.5 -1.25 5.625 12.5 -1.5 5.625 12.5 2.125
4 16 6.25 12.5 6.25 6.25 12.5 3.125 5.625 12.5 2.875 3.75 12.5 6.25
4 16 3.75 12.5 -3.75 3.75 12.5 6.25 5.625 12.5 2.125 5.625 12.5 -1.5
4 16 -3.75 12.5 -3.75 -6.25 12.5 -6.25 -6.25 12.5 6.25 -3.75 12.5 6.25
4 16 3.75 12.5 -3.75 5.625 12.5 -6.25 -6.25 12.5 -6.25 -3.75 12.5 -3.75

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Magnus Forsberg [MagFors]

initially submitted the part.

2025-07-15 12:42:25
