Unofficial File parts/u7015.dat
Part Attributes:
File Header:

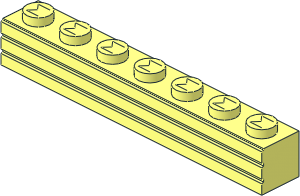

0 Modulex Profile Brick 1 x 7
0 Name: u7015.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink Mx2371, grille, Peeron x729, Rebrickable 2371
0 !HISTORY 2024-01-08 [MagFors] Original design by Chris Dee as brk0107a
Show contents
1 16 0 0 0 7 0 0 0 1 0 0 0 1 s\u7012s01.dat
1 16 0 0 0 40.625 0 0 0 1 0 0 0 1 s\u7012s02.dat
0 BFC INVERTNEXT
1 16 0 12.5 0 41.25 0 0 0 -10 0 0 0 3.75 box5.dat
1 16 -31.25 0 0 1 0 0 0 1 0 0 0 1 mstug-1x2.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 mstug-1x3.dat
1 16 31.25 0 0 1 0 0 0 1 0 0 0 1 mstug-1x2.dat
2 24 -43.75 12.5 6.25 -40.625 12.5 6.25
2 24 40.625 12.5 6.25 43.75 12.5 6.25
4 16 -43.75 12.5 6.25 -43.75 0 6.25 -40.625 3.125 6.25 -40.625 12.5 6.25
4 16 43.75 12.5 6.25 40.625 12.5 6.25 40.625 3.125 6.25 43.75 0 6.25
4 16 -40.625 3.125 6.25 -43.75 0 6.25 43.75 0 6.25 40.625 3.125 6.25
4 16 -43.75 12.5 -6.25 -41.25 12.5 -3.75 41.25 12.5 -3.75 43.75 12.5 -6.25
4 16 -40.625 12.5 5.9375 40.625 12.5 5.9375 41.25 12.5 3.75 -41.25 12.5 3.75
4 16 43.75 12.5 6.25 41.25 12.5 3.75 40.625 12.5 5.9375 40.625 12.5 6.25
4 16 -43.75 12.5 6.25 -40.625 12.5 6.25 -40.625 12.5 5.9375 -41.25 12.5 3.75
4 16 -43.75 12.5 -6.25 -43.75 12.5 6.25 -41.25 12.5 3.75 -41.25 12.5 -3.75
4 16 43.75 12.5 -6.25 41.25 12.5 -3.75 41.25 12.5 3.75 43.75 12.5 6.25
1 16 18.75 2.5 0 0 0 .625 0 9.6875 0 -3.75 0 0 box3u2p.dat
1 16 6.25 2.5 0 0 0 .625 0 9.6875 0 -3.75 0 0 box3u2p.dat
1 16 -6.25 2.5 0 0 0 .625 0 9.6875 0 -3.75 0 0 box3u2p.dat
1 16 -18.75 2.5 0 0 0 .625 0 9.6875 0 -3.75 0 0 box3u2p.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
Current Votes:
None
Official parents and subparts
Part Events:
2025-07-15 12:42:25
Creative Commons Attribution License information
This part is copyright © Magnus Forsberg
Licensed under CC BY 4.0
