Unofficial File parts/u7019.dat
Part Attributes:
File Header:

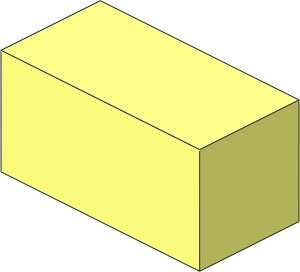

0 Modulex Tile 1 x 2 with Bottom Stud
0 Name: u7019.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink Mx1021B, Peeron x711, Rebrickable 1021B
0 !HISTORY 2024-01-15 [MagFors] Original design by Tore Eriksson as brk0102t
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u7019s01.dat
4 16 12.5 0 6.25 -12.5 0 6.25 -12.5 0 -6.25 12.5 0 -6.25
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2025-07-15 13:10:33
2025-08-06 16:51:53
I don't like "with Bottom Stud" for the tiles, as these are not studs. But I have no better idea...
2025-08-06 17:11:24
Bottom Pin?
Bottom Tube?
Bottom Tube?
2025-08-06 18:20:42
Maybe Tube, indeed. Not perfect, but better than studs.
2025-08-06 20:33:49
Any objection the the word Tile?
This is basically a studless brick. It has the same hight as a regular brick.
Did we agree on Brick, Plate and Tile?
No studs on a Tile.
A Plate is 1/3 of a Brick.
A Tile has the same height as a Plate?
Many, maybe most, of the Modulex Tiles have no bottom "studs". Peeron use "with No Studs". Bricklink use "no Internal Supports"
I think we could simply remove the bottom description here, but maybe add id when there are bottom Pins/Tubes.
"with" is better than "without" in a description.
This is basically a studless brick. It has the same hight as a regular brick.
Did we agree on Brick, Plate and Tile?
No studs on a Tile.
A Plate is 1/3 of a Brick.
A Tile has the same height as a Plate?
Many, maybe most, of the Modulex Tiles have no bottom "studs". Peeron use "with No Studs". Bricklink use "no Internal Supports"
I think we could simply remove the bottom description here, but maybe add id when there are bottom Pins/Tubes.
"with" is better than "without" in a description.
2025-08-06 21:05:37
Since there are not "plate-thin" Modulex tiles I'd say "Tile" is fine. Especially since every other site seems to favor that too.
Agree on the "with".
Modulex catalogues of 1969 just called the bricks "Main Components" and the tiles "Smooth Components".
Agree on the "with".
Modulex catalogues of 1969 just called the bricks "Main Components" and the tiles "Smooth Components".
Creative Commons Attribution License information
This part is copyright © Magnus Forsberg
Licensed under CC BY 4.0
