Unofficial File parts/s/6693s02.dat

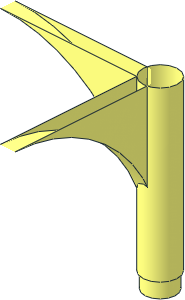

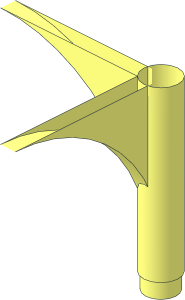

~Scala Staircase - Step Outer Support
File Header:
0 ~Scala Staircase - Step Outer Support 0 Name: s\6693s02.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Unofficial_Subpart 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW
Show contents
1 16 208.87855 48 17.01731 4.5 0 0 0 -43 0 0 0 4.5 4-4cylc.dat 1 16 208.87855 52 17.01731 4 0 0 0 -4 0 0 0 4 4-4cylc.dat 0 BFC INVERTNEXT 1 16 205.6966 45 -23.12069 0 4 0 -40 0 0 0 0 40 48\3-16cylo.dat 1 16 205.6966 45 -23.12069 0 1 0 -40 0 0 0 0 40 48\3-16tndis.dat 1 16 209.6966 45 -23.12069 0 -1 0 -40 0 0 0 0 40 48\3-16tndis.dat 0 BFC INVERTNEXT 1 16 168.7406 45 13.83531 0 0 40 -40 0 0 0 4 0 48\3-16cylo.dat 1 16 168.7406 45 13.83531 0 0 40 -40 0 0 0 1 0 48\3-16tndis.dat 1 16 168.7406 45 17.83531 0 0 40 -40 0 0 0 -1 0 48\3-16tndis.dat 2 24 205.6966 29.692 13.83531 205.6966 5 13.83531 2 24 205.696675 29.692 13.83531 207.1564 27.715627 12.85976 2 24 207.1564 27.715627 12.85976 208.87855 27.021855 12.51731 2 24 208.87855 27.021855 12.51731 209.6966 27.351408 12.679979 2 24 204.37855 27.021754 17.01731 204.54121 27.351287 17.83531 2 24 204.37855 27.021754 17.01731 204.721 27.715525 15.29516 2 24 204.721 27.715525 15.29516 205.6966 29.692 13.83536 2 24 168.7406 5 13.83531 205.6966 5 13.83531 2 24 205.6966 5 13.83531 205.6966 5 -23.12069 2 24 209.6966 5 -23.12069 209.6966 5 12.67998 2 24 204.54121 5 17.83531 168.7406 5 17.83531 2 24 204.54121 27.35129 17.83531 204.54121 5 17.83531 2 24 209.6966 5 12.67998 209.6966 27.35141 12.67998
Status:
Not releaseable Needs 2 More Votes (N) Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
  • No path of certified files to a certified or official parent in the parts folder
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line text: 2 24 205.696675 29.692 13.83531 207.1564 27.715627 12.85976
  • Decimal precision exceeds 5 significant places
    Line text: 2 24 207.1564 27.715627 12.85976 208.87855 27.021855 12.51731
  • Decimal precision exceeds 5 significant places
    Line text: 2 24 204.721 27.715525 15.29516 205.6966 29.692 13.83536
This part has the following warnings
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 208.87855 48 17.01731 4.5 0 0 0 -43 0 0 0 4.5 4-4cylc.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 208.87855 52 17.01731 4 0 0 0 -4 0 0 0 4 4-4cylc.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 205.6966 45 -23.12069 0 4 0 -40 0 0 0 0 40 48\3-16cylo.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 205.6966 45 -23.12069 0 1 0 -40 0 0 0 0 40 48\3-16tndis.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 209.6966 45 -23.12069 0 -1 0 -40 0 0 0 0 40 48\3-16tndis.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 168.7406 45 13.83531 0 0 40 -40 0 0 0 4 0 48\3-16cylo.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 168.7406 45 13.83531 0 0 40 -40 0 0 0 1 0 48\3-16tndis.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 168.7406 45 17.83531 0 0 40 -40 0 0 0 -1 0 48\3-16tndis.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 205.6966 29.692 13.83531 205.6966 5 13.83531
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 208.87855 27.021855 12.51731 209.6966 27.351408 12.679979
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 204.37855 27.021754 17.01731 204.54121 27.351287 17.83531
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 204.37855 27.021754 17.01731 204.721 27.715525 15.29516
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 168.7406 5 13.83531 205.6966 5 13.83531
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 205.6966 5 13.83531 205.6966 5 -23.12069
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 209.6966 5 -23.12069 209.6966 5 12.67998
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 204.54121 5 17.83531 168.7406 5 17.83531
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 204.54121 27.35129 17.83531 204.54121 5 17.83531
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 209.6966 5 12.67998 209.6966 27.35141 12.67998
Current Votes:

None

Official parents and subparts
Part Events:
Gerald Lasser [GeraldLasser]
Part Library Admin
initially submitted the part.
2025-07-16 20:40:19
Some weird parts :-)
