File Detail parts/s/6693s01.dat

Unofficial File parts/s/6693s01.dat

File Header:

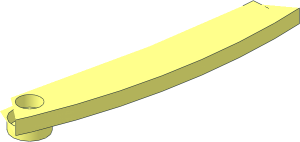

0 ~Scala Staircase - Rounded End
0 Name: s\6693s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // Step Top
3 16 203.88359 0 -74 201.65565 0 -69.43867 197.96013 0 -67.90794
3 16 203.88359 0 -74 197.96013 0 -67.90794 194.26461 0 -66.37721
4 16 203.88359 0 -74 205.47843 0 -69.75344 203.18638 0 -65.74315 201.65565 0 -69.43867
4 16 203.18638 0 -65.74315 205.47843 0 -69.75344 209.6003 0 -56.1596 204.71711 0 -62.04763
3 16 210.87855 0 19.01731 215.46064 0 25 208.87855 0 19.01731
1 16 208.87855 0 17.01731 2 0 0 0 1 0 0 0 2 4-4ndis.dat
3 16 208.87855 0 19.01731 215.46064 0 25 206.87855 0 19.01731
4 16 206.87855 0 17.01731 206.87855 0 19.01731 194.26461 0 -66.37721 195.79534 0 -62.68169
4 16 216.52908 0 -14.18952 217 0 0 210.87855 0 15.01731 204.71711 0 -62.04763
4 16 215.1338 0 -28.3185 216.52908 0 -14.18952 204.71711 0 -62.04763 212.83546 0 -42.33726
3 16 204.71711 0 -62.04763 209.6003 0 -56.1596 212.83546 0 -42.33726
4 16 197.32607 0 -58.98617 206.87855 0 15.01731 206.87855 0 17.01731 195.79534 0 -62.68169
4 16 206.87855 0 15.01731 197.32607 0 -58.98617 201.02159 0 -60.5169 208.87855 0 15.01731
4 16 210.87855 0 15.01731 208.87855 0 15.01731 201.02159 0 -60.5169 204.71711 0 -62.04763
4 16 215.46064 0 25 210.87855 0 19.01731 210.87855 0 17.01731 216.52473 0 14.19615
4 16 216.52473 0 14.19615 210.87855 0 17.01731 210.87855 0 15.01731 217 0 0
0 BFC INVERTNEXT
1 16 199.49086 4 -64.21242 3.69552 0 1.53073 0 -4 0 -1.53073 0 3.69552 4-4cylc.dat
1 16 199.49086 0 -64.21242 3.69552 0 1.53073 0 1 0 -1.53073 0 3.69552 4-4ndis.dat

0 // Step Side
4 16 216.52473 5 14.19615 216.52473 0 14.19615 217 0 0 217 5 0
4 16 217 5 0 217 0 0 216.52908 0 -14.18952 216.52908 5 -14.18952
4 16 216.52908 5 -14.18952 216.52908 0 -14.18952 215.1338 0 -28.3185 215.1338 5 -28.3185
4 16 215.1338 5 -28.3185 215.1338 0 -28.3185 212.83546 0 -42.33726 212.83546 5 -42.33726
4 16 212.83546 5 -42.33726 212.83546 0 -42.33726 209.6003 0 -56.1596 209.6003 5 -56.1596
4 16 209.6003 5 -56.1596 209.6003 0 -56.1596 205.47843 0 -69.75344 205.47843 5 -69.75344
4 16 205.47843 0 -69.75344 203.88359 0 -74 203.88359 5 -74 205.47843 5 -69.75344
4 16 216.52473 5 14.19615 215.46064 5 25 215.46064 0 25 216.52473 0 14.19615
2 24 215.46064 0 25 215.46064 5 25
2 24 217 0 0 216.52908 0 -14.18952
2 24 216.52908 0 -14.18952 215.1338 0 -28.3185
2 24 215.1338 0 -28.3185 212.83546 0 -42.33726
2 24 212.83546 0 -42.33726 209.6003 0 -56.1596
2 24 209.6003 0 -56.1596 205.47843 0 -69.75344
2 24 217 0 0 216.52473 0 14.19615
2 24 216.52473 0 14.19615 215.46064 0 25
2 24 217 5 0 216.52908 5 -14.18952
2 24 216.52908 5 -14.18952 215.1338 5 -28.3185
2 24 215.1338 5 -28.3185 212.83546 5 -42.33726
2 24 212.83546 5 -42.33726 209.6003 5 -56.1596
2 24 209.6003 5 -56.1596 205.47843 5 -69.75344
2 24 217 5 0 216.52473 5 14.19615
2 24 216.52473 5 14.19615 215.46064 5 25
2 24 203.88359 0 -74 205.47843 0 -69.75344
2 24 203.88359 5 -74 205.47843 5 -69.75344
2 24 203.88359 0 -74 203.88359 5 -74
5 24 205.47843 5 -69.75344 205.47843 0 -69.75344 203.88359 0 -74 209.6003 5 -56.1596
5 24 209.6003 5 -56.1596 209.6003 0 -56.1596 212.83546 5 -42.33726 205.47843 0 -69.75344
5 24 216.52473 5 14.19615 216.52473 0 14.19615 217 0 0 215.46064 5 25
5 24 212.83546 5 -42.33726 212.83546 0 -42.33726 215.1338 5 -28.3185 209.6003 0 -56.1596
5 24 217 5 0 217 0 0 216.52473 5 14.19615 216.52908 0 -14.18952
5 24 215.1338 0 -28.3185 215.1338 5 -28.3185 216.52908 5 -14.18952 212.83546 0 -42.33726
5 24 216.52908 5 -14.18952 216.52908 0 -14.18952 217 5 0 215.1338 0 -28.3185

0 // Step Bottom
1 16 199.49086 9 -64.21242 5.77425 0 2.39177 0 -4 0 -2.39177 0 5.77425 4-4cylc.dat
1 16 199.49086 5 -64.21242 5.77425 0 2.39177 0 -1 0 -2.39177 0 5.77425 4-4ndis.dat
4 16 203.88359 5 -74 202.87334 5 -72.37843 205.26511 5 -66.60419 205.47843 5 -69.75344
3 16 205.47843 5 -69.75344 205.26511 5 -66.60419 207.65688 5 -60.82994
3 16 205.47843 5 -69.75344 207.65688 5 -60.82994 209.6003 5 -56.1596
3 16 209.6003 5 -56.1596 207.65688 5 -60.82994 201.88263 5 -58.43817
3 16 209.6003 5 -56.1596 201.88263 5 -58.43817 196.10838 5 -56.0464
3 16 197.09909 5 -69.98666 202.87334 5 -72.37843 203.88359 5 -74
3 16 191.32484 5 -67.59489 197.09909 5 -69.98666 203.88359 5 -74
4 16 197.46064 5 21 197.46064 5 25 215.46064 5 25 216.52473 5 14.19615
4 16 197.46064 5 21 216.52473 5 14.19615 217 5 0 216.52908 5 -14.18952
4 16 196.10838 5 -56.0464 197.46064 5 21 216.52908 5 -14.18952 209.6003 5 -56.1596
3 16 193.71661 5 -61.820645 191.32484 5 -67.59489 197.46064 5 21
3 16 196.10838 5 -56.0464 193.71661 5 -61.820645 197.46064 5 21
4 16 216.52908 5 -14.18952 215.1338 5 -28.3185 212.83546 5 -42.33726 209.6003 5 -56.1596
2 24 197.46064 5 25 215.46064 5 25

1 16 197.46064 7.5 23 0 -1 0 0 0 2.5 -2 0 0 rect.dat

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2025-07-16 20:40:19
