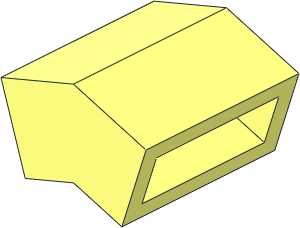

Modulex Brick Angled 18 2 x 2 Double
0 Modulex Brick Angled 18  2 x  2 Double
0 Name: u7039.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP 1 16 18.75 12.5 0 1 0 0 0 1 0 0 0 1 u7032.dat
0 !HELP 1 35 9.882 -7.044 0 0 .949 .316 0 .316 -.949 -1 0 0 u7001.dat

0 BFC CERTIFY CCW

0 !KEYWORDS 18.4349 degree, Bricklink Mx2403B, Rebrickable 2403B, slope 1:3

0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
