Official File parts/s/u7038s01.dat

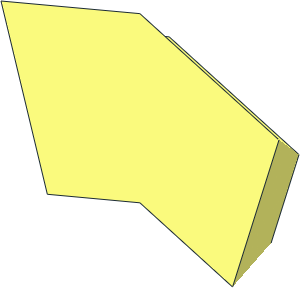

~Modulex Brick Angled 18 2 x X Double - End
File Header:
0 ~Modulex Brick Angled 18 2 x X Double - End 0 Name: s\u7038s01.dat 0 Author: Magnus Forsberg [MagFors] 0 !LDRAW_ORG Subpart UPDATE 2025-09 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
4 16 0 -16.9262 0 0 -3.75 0 7.905708 -1.114818 0 11.858545 -12.973363 0 4 16 -7.905708 -1.114818 0 0 -3.75 0 0 -16.9262 0 -11.858545 -12.973363 0 4 16 -11.067977 -10.601654 2.5 -8.696275 -3.486527 2.5 -7.905708 -1.114818 0 -11.858545 -12.973363 0 4 16 7.905708 -1.114818 0 8.696275 -3.486527 2.5 11.067977 -10.601654 2.5 11.858545 -12.973363 0 4 16 -11.067977 -10.601654 2.5 0 -14.290969 2.5 0 -6.385277 2.5 -8.696275 -3.486527 2.5 4 16 0 -6.385277 2.5 0 -14.290969 2.5 11.067977 -10.601654 2.5 8.696275 -3.486527 2.5 2 24 8.696275 -3.486527 2.5 11.067977 -10.601654 2.5 2 24 -11.858545 -12.973363 0 -7.905708 -1.114818 0 2 24 11.858545 -12.973363 0 7.905708 -1.114818 0 2 24 7.905708 -1.114818 0 0 -3.75 0 2 24 0 -6.385277 2.5 8.696275 -3.486527 2.5 2 24 0 -14.290969 2.5 -11.067977 -10.601654 2.5 2 24 -8.696275 -3.486527 2.5 0 -6.385277 2.5 2 24 -7.905708 -1.114818 0 0 -3.75 0 2 24 0 -14.290969 2.5 11.067977 -10.601654 2.5 2 24 0 -16.9262 0 -11.858545 -12.973363 0 2 24 -8.696275 -3.486527 2.5 -11.067977 -10.601654 2.5 2 24 0 -16.9262 0 11.858545 -12.973363 0
Status:
Official Official
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line 11: 4 16 0 -16.9262 0 0 -3.75 0 7.905708 -1.114818 0 11.858545 -12.973363 0
    Line 12: 4 16 -7.905708 -1.114818 0 0 -3.75 0 0 -16.9262 0 -11.858545 -12.973363 0
    Line 13: 4 16 -11.067977 -10.601654 2.5 -8.696275 -3.486527 2.5 -7.905708 -1.114818 0 -11.858545 -12.973363 0
    Line 14: 4 16 7.905708 -1.114818 0 8.696275 -3.486527 2.5 11.067977 -10.601654 2.5 11.858545 -12.973363 0
    Line 15: 4 16 -11.067977 -10.601654 2.5 0 -14.290969 2.5 0 -6.385277 2.5 -8.696275 -3.486527 2.5
    Line 16: 4 16 0 -6.385277 2.5 0 -14.290969 2.5 11.067977 -10.601654 2.5 8.696275 -3.486527 2.5
    Line 17: 2 24 8.696275 -3.486527 2.5 11.067977 -10.601654 2.5
    Line 18: 2 24 -11.858545 -12.973363 0 -7.905708 -1.114818 0
    Line 19: 2 24 11.858545 -12.973363 0 7.905708 -1.114818 0
    Line 20: 2 24 7.905708 -1.114818 0 0 -3.75 0
    Line 21: 2 24 0 -6.385277 2.5 8.696275 -3.486527 2.5
    Line 22: 2 24 0 -14.290969 2.5 -11.067977 -10.601654 2.5
    Line 23: 2 24 -8.696275 -3.486527 2.5 0 -6.385277 2.5
    Line 24: 2 24 -7.905708 -1.114818 0 0 -3.75 0
    Line 25: 2 24 0 -14.290969 2.5 11.067977 -10.601654 2.5
    Line 26: 2 24 0 -16.9262 0 -11.858545 -12.973363 0
    Line 27: 2 24 -8.696275 -3.486527 2.5 -11.067977 -10.601654 2.5
    Line 28: 2 24 0 -16.9262 0 11.858545 -12.973363 0
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Magnus Forsberg
Licensed under CC BY 4.0
