File Detail parts/u7042.dat

Unofficial File parts/u7042.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

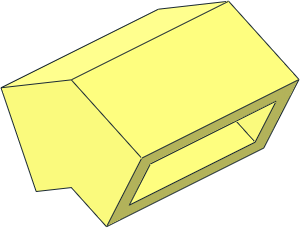

0 Modulex Brick Angled 27 2 x 2 Double
0 Name: u7042.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP 1 16 12.5 12.5 0 1 0 0 0 1 0 0 0 1 u7031.dat
0 !HELP 1 35 8.385 -5.295 0 0 .894 .447 0 .447 -.894 -1 0 0 u7001.dat

0 BFC CERTIFY CCW

0 !KEYWORDS 26.5651 degree, Bricklink Mx2402B, Rebrickable 2402B, slope 1:2

Show contents

1 16 0 0 -12.5 1 0 0 0 1 0 0 0 1 s\u7041s01.dat
1 16 0 0 12.5 -1 0 0 0 1 0 0 0 -1 s\u7041s01.dat

2 24 0 -2.499932 12.5 0 -2.499932 -12.5
2 24 0 -5.295055 10 0 -5.295055 -10
2 24 0 -13.680314 -10 0 -13.680314 10
2 24 0 -16.4754 -12.5 0 -16.4754 12.5

4 16 5.590156 .295115 -12.5 5.590156 .295115 12.5 6.708192 -1.940952 10 6.708192 -1.940952 -10
4 16 11.180335 -10.885221 -12.5 10.062299 -8.649154 -10 10.062299 -8.649154 10 11.180335 -10.885221 12.5
4 16 11.180335 -10.885221 -12.5 11.180335 -10.885221 12.5 0 -16.4754 12.5 0 -16.4754 -12.5
4 16 0 -2.499932 12.5 5.590156 .295115 12.5 5.590156 .295115 -12.5 0 -2.499932 -12.5
4 16 0 -5.295055 10 0 -5.295055 -10 6.708192 -1.940952 -10 6.708192 -1.940952 10
4 16 0 -13.680314 10 10.062299 -8.649154 10 10.062299 -8.649154 -10 0 -13.680314 -10
2 24 11.180335 -10.885221 -12.5 11.180335 -10.885221 12.5
2 24 10.062299 -8.649154 -10 10.062299 -8.649154 10
2 24 5.590156 .295115 -12.5 5.590156 .295115 12.5
2 24 6.708192 -1.940952 10 6.708192 -1.940952 -10

4 16 -6.708192 -1.940952 10 -5.590156 .295115 12.5 -5.590156 .295115 -12.5 -6.708192 -1.940952 -10
4 16 -10.062299 -8.649154 10 -10.062299 -8.649154 -10 -11.180335 -10.885221 -12.5 -11.180335 -10.885221 12.5
4 16 0 -16.4754 12.5 -11.180335 -10.885221 12.5 -11.180335 -10.885221 -12.5 0 -16.4754 -12.5
4 16 -5.590156 .295115 -12.5 -5.590156 .295115 12.5 0 -2.499932 12.5 0 -2.499932 -12.5
4 16 -6.708192 -1.940952 -10 0 -5.295055 -10 0 -5.295055 10 -6.708192 -1.940952 10
4 16 -10.062299 -8.649154 -10 -10.062299 -8.649154 10 0 -13.680314 10 0 -13.680314 -10
2 24 -11.180335 -10.885221 12.5 -11.180335 -10.885221 -12.5
2 24 -10.062299 -8.649154 10 -10.062299 -8.649154 -10
2 24 -5.590156 .295115 12.5 -5.590156 .295115 -12.5
2 24 -6.708192 -1.940952 -10 -6.708192 -1.940952 10

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/u7041s01.dat (Needs More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Magnus Forsberg [MagFors]

initially submitted the part.

2025-07-18 07:06:52
