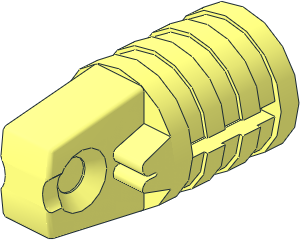

0 Hinge Arm Locking with Single Finger and Axlehole
0 Name: 30552.dat
0 Author: Franklin W. Cain [fwcain]
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS click-hinge, Life on Mars, Star Wars, Studio, Technic
0 !HISTORY 2003-07-02 [technog] created new subpart, added BFC
0 !HISTORY 2003-11-13 [fwcain] disintegrated obsolete subfile...
0 !HISTORY 2004-03-02 [PTadmin] Official Update 2004-01
0 !HISTORY 2004-03-11 [cwdee] corrected axle hole to axlehole
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2007-07-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [PTadmin] Renamed from 481
0 !HISTORY 2008-07-07 [WilliamH] Removed redundant 4-4disc that was showing up as a BFC error
0 !HISTORY 2012-10-05 [Philo] Corrected bleeding
0 !HISTORY 2015-10-11 [PTadmin] Official Update 2015-01
0 !HISTORY 2021-12-30 [MagFors] Reshaped axlehole, made ccw
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
1 16 0 0 0 1 0 0 0 1 0 0 0 1 clh3.dat
1 16 0 0 0 8.316 0 -3.444 -3.444 0 -8.315 0 1 0 3-8edge.dat
1 16 0 0 0 -8.316 0 3.444 3.444 0 8.315 0 1 0 3-8edge.dat
1 16 0 0 0 1 0 0 0 0 1 0 -1 0 axl5end.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\30552s01.dat
1 16 0 0 0 2.77164 0 -1.14805 -1.14805 0 -2.77164 0 1 0 3-8ring2.dat
1 16 0 0 0 -2.77164 0 1.14805 1.14805 0 2.77164 0 1 0 3-8ring2.dat
This part is copyright © Franklin W. Cain
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Donald Sutter,
Chris Dee,
William Howard,
Philippe Hurbain,
Magnus Forsberg,
3D View
