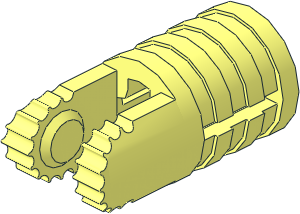

0 Hinge Arm Locking with Dual Finger and Axlehole
0 Name: 30553.dat
0 Author: Franklin W. Cain [fwcain]
0 !LDRAW_ORG Part UPDATE 2015-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CW
0 !KEYWORDS click-hinge, Life on Mars, Star Wars, Studio, Technic
0 !HISTORY 2003-07-02 [technog] added BFC
0 !HISTORY 2004-03-02 [PTadmin] Official Update 2004-01
0 !HISTORY 2004-03-11 [cwdee] Correct title
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2007-07-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [PTadmin] Renamed from 482
0 !HISTORY 2012-10-05 [Philo] Corrected bleeding
0 !HISTORY 2015-10-11 [PTadmin] Official Update 2015-01
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\480s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\30552s01.dat
1 16 0 0 0 2.12132 0 -2.12132 -2.12132 0 -2.12132 0 1 0 1-4ring2.dat
1 16 0 0 0 -2.12132 0 2.12132 2.12132 0 2.12132 0 1 0 1-4ring2.dat
3 16 6.364 -6.364 0 6.607 -6 0 6 -6 0
3 16 -6 -6 0 -6.607 -6 0 -6.364 -6.364 0
3 16 6 6 0 6.607 6 0 6.364 6.364 0
3 16 -6.364 6.364 0 -6.607 6 0 -6 6 0
- All parts must be BFC CERTIFY CCW
This part is copyright © Franklin W. Cain
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Donald Sutter,
Chris Dee,
Philippe Hurbain,
