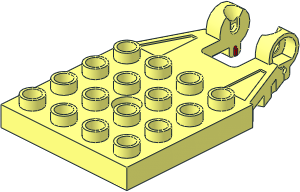

Duplo Plate 4 x 4 with Hinge Extended on Side and Red Gaskets
File Header:
0 Duplo Plate 4 x 4 with Hinge Extended on Side and Red Gaskets 0 Name: 65085.dat 0 Author: Peter Blomberg [WUIt] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 !HELP Secondary hinge position at 0 -5 160 0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 2.75 0 0 0 1 stug7-4x4.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\25548s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\25548s01.dat 1 16 0 0 40 1 0 0 0 1 0 0 0 1 s\65084s02.dat 0 // understud with snap ring 1 16 0 4 0 1 0 0 0 -4 0 0 0 1 stud8a.dat 1 16 0 4 0 16 0 0 0 -1 0 0 0 16 4-4edge.dat 1 16 0 4 0 16 0 0 0 -1 0 0 0 16 4-4ndis.dat 1 16 0 0 0 14 0 0 0 -1 0 0 0 14 4-4edge.dat 1 16 0 0 0 14 0 0 0 1 0 0 0 14 4-4ndis.dat 0 BFC INVERTNEXT 1 16 0 0 0 14 0 0 0 4 0 0 0 14 4-4cyli.dat 1 16 0 24 0 1 0 0 0 1 0 0 0 1 dsnapridge.dat 0 // reinforcements 1 16 0 4 -46 0 0 -1.5 0 4 0 30 0 0 box3u5p.dat 1 16 0 4 -16 0 0 1.5 0 4 0 1.5 0 0 boxjcyl4.dat 1 16 0 4 40 0 0 1.5 0 4 0 -24 0 0 box3u8p.dat 1 16 0 4 16 0 0 1.5 0 4 0 -1.5 0 0 boxjcyl4.dat 1 16 0 4 64 0 0 1.5 0 4 0 1.5 0 0 boxjcyl4.dat 0 // inner box 0 BFC INVERTNEXT 1 16 0 14 76 0 0 76 10 0 0 0 -152 0 box3u4a.dat 3 16 -76 4 -76 -16 4 -16 0 4 -16 4 16 0 4 -16 16 4 -16 76 4 -76 -76 4 -76 3 16 0 4 16 -16 4 16 -36 4 76 4 16 36 4 76 16 4 16 0 4 16 -36 4 76 4 16 -18.5 4 111 18.5 4 111 36 4 76 -36 4 76 0 // outer box 1 16 0 12 80 0 0 80 12 0 0 0 -160 0 box3u2p.dat 3 16 0 0 -14 -14 0 -14 -80 0 -80 4 16 80 0 -80 14 0 -14 0 0 -14 -80 0 -80 3 16 0 0 14 14 0 14 40 0 80 4 16 -40 0 80 -14 0 14 0 0 14 40 0 80 4 16 -40 0 80 40 0 80 16.5 0 114 -16.5 0 114 0 // bottom helm 4 16 76 24 -76 80 24 -80 -80 24 -80 -76 24 -76 3 16 40 24 147.5 36 24 120 36 24 152.7287 3 16 40 24 147.5 36 24 152.7287 40 24 160 3 16 40 24 160 36 24 152.7287 40 24 163.2713 3 16 -36 24 120 -40 24 147.5 -36 24 152.7287 3 16 -36 24 152.7287 -40 24 147.5 -40 24 160 3 16 -36 24 152.7287 -40 24 160 -40 24 163.2713 0 // fittings 2 24 40 24 160 40 24 163.2713 2 24 40 24 160 40 17 160 2 24 40 11 160 40 9.0433 160 2 24 40 9.0433 160 42.6177 9.0433 154.183 2 24 40 5.74792 149.25208 40 9.0433 154.183 2 24 40 9.0433 154.183 40 9.0433 160 4 16 46.3195 .817 145.9567 48.3065 12 141.5412 48.3065 24 141.5412 44.8366 5.7479 149.2521 3 16 40 24 160 40 24 163.2713 40 17 160 4 16 40 5.74792 149.25208 40 9.0433 154.183 40 9.0433 160 40 5.74792 170.74792 3 16 40 5.74792 170.74792 40 9.0433 160 40 11 160 3 16 42.6177 9.0433 154.183 40 9.0433 160 40 9.0433 154.183 4 16 40 5.74792 149.25208 44.8366 5.7479 149.2521 42.6177 9.0433 154.183 40 9.0433 154.183 1 16 40 14 160 0 -1 1.35 3 0 0 0 0 -3 2-4ndis.dat 1 16 40 14 160 0 1 1.35 3 0 0 0 0 -3 2-4edge.dat 0 BFC INVERTNEXT 1 16 40 14 160 0 1.35 0 0 0 3 3 0 0 1-4cyls2.dat 0 BFC INVERTNEXT 1 16 40 14 160 0 1.35 0 0 0 -3 3 0 0 1-4cyls2.dat 4 16 40 17 160 41.35 17 157 48.3065 24 141.5412 40 24 160 4 16 44.8366 5.7479 149.2521 48.3065 24 141.5412 41.35 17 157 41.35 14 157 4 16 41.35 11 157 42.6177 9.0433 154.183 44.8366 5.7479 149.2521 41.35 14 157 4 16 42.6177 9.0433 154.183 41.35 11 157 40 11 160 40 9.0433 160 2 24 -40 24 163.2713 -40 24 160 2 24 -40 17 160 -40 24 160 2 24 -40 9.0433 160 -40 11 160 2 24 -42.6177 9.0433 154.183 -40 9.0433 160 2 24 -40 9.0433 154.183 -40 5.74792 149.25208 2 24 -40 9.0433 160 -40 9.0433 154.183 4 16 -48.3065 24 141.5412 -48.3065 12 141.5412 -46.3195 .817 145.9567 -44.8366 5.7479 149.2521 3 16 -40 24 163.2713 -40 24 160 -40 17 160 4 16 -40 9.0433 160 -40 9.0433 154.183 -40 5.74792 149.25208 -40 5.74792 170.74792 3 16 -40 9.0433 160 -40 5.74792 170.74792 -40 11 160 3 16 -40 9.0433 160 -42.6177 9.0433 154.183 -40 9.0433 154.183 4 16 -42.6177 9.0433 154.183 -44.8366 5.7479 149.2521 -40 5.74792 149.25208 -40 9.0433 154.183 1 16 -40 14 160 0 1 -1.35 3 0 0 0 0 -3 2-4ndis.dat 1 16 -40 14 160 0 -1 -1.35 3 0 0 0 0 -3 2-4edge.dat 0 BFC INVERTNEXT 1 16 -40 14 160 0 -1.35 0 0 0 3 3 0 0 1-4cyls2.dat 0 BFC INVERTNEXT 1 16 -40 14 160 0 -1.35 0 0 0 -3 3 0 0 1-4cyls2.dat 4 16 -48.3065 24 141.5412 -41.35 17 157 -40 17 160 -40 24 160 4 16 -41.35 17 157 -48.3065 24 141.5412 -44.8366 5.7479 149.2521 -41.35 14 157 4 16 -44.8366 5.7479 149.2521 -42.6177 9.0433 154.183 -41.35 11 157 -41.35 14 157 4 16 -40 11 160 -41.35 11 157 -42.6177 9.0433 154.183 -40 9.0433 160
Status:
Not releaseable Needs More Votes (CN) Needs More Votes (CN)
This part has the following automated holds from the Parts Tracker
Current Votes:
User Vote
RainbowDolphin Certify
Official parents and subparts
Part Events:
Peter Blomberg [WUIt]
Part Header Editor
initially submitted the part.
2025-07-18 22:30:41
Adapted earlier subfiles for 13355 and 25548 to also fit 65084 and 65085. Small adjustments required to all subparts to prevent overlap. Please consider 13355, 65084, 25548, and 65085 for any modifications. The red gaskets are in 65084s03 with the color of rubber red.
Added help lines for secondary hinge position. Kept origin as concluded in forum thread https://forums.ldraw.org/thread-28836.html
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2025-07-22 13:18:58
Willy Tschager [Holly-Wood]
Senior Part Reviewer
made the following comment.
2025-07-23 09:59:48
* Shares subable geometry with 25548
