Unofficial File parts/s/30489s02.dat
File Header:

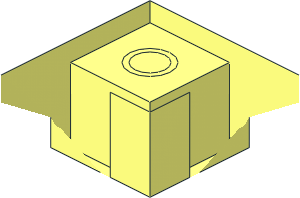

0 ~Brick Sports Field Section - Corner
0 Name: s\30489s02.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 0 0 1 0 -7 0 -1 0 0 stud4.dat
0 BFC INVERTNEXT
1 16 0 28 0 0 0 16 0 -28 0 -16 0 0 box5.dat
1 16 12 14 -12 0 0 8 14 0 0 0 -8 0 box2-5.dat
3 16 20 28 0 16 28 16 20 28 20
3 16 0 28 -20 -20 28 -20 -16 28 -16
3 16 20 28 -20 4 28 -20 16 28 -16
3 16 20 28 -20 16 28 -16 20 28 -4
3 16 -18 20 -20 -20 18 -20 -20 28 -20
3 16 20 18 20 20 20 18 20 28 20
4 16 -20 -4 20 20 18 20 20 28 20 -20 28 20
4 16 -20 -4 20 40 -4 20 40 5 20 20 18 20
4 16 -20 28 20 20 28 20 16 28 16 -16 28 16
4 16 -20 28 -20 -20 28 20 -16 28 16 -16 28 -16
4 16 -20 -4 20 -20 18 -20 -20 5 -40 -20 -4 -40
4 16 -20 -4 20 -20 28 20 -20 28 -20 -20 18 -20
4 16 16 28 16 20 28 0 20 28 -4 16 28 -16
4 16 -16 28 -16 16 28 -16 4 28 -20 0 28 -20
4 16 -18 20 -20 -20 28 -20 0 28 -20 -16 20 -20
4 16 20 28 0 20 28 20 20 20 18 20 20 16
0 // Edge Lines
2 24 20 28 0 20 28 20
2 24 0 28 -20 -20 28 -20
2 24 20 28 20 -20 28 20
2 24 -20 28 -20 -20 28 20
2 24 -20 18 -20 -20 28 -20
2 24 -20 28 20 -20 -4 20
2 24 20 18 20 20 28 20
2 24 -20 -4 20 40 -4 20
2 24 -20 -4 20 -20 -4 -40
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
Creative Commons Attribution License information
This part is copyright © Chris Böhnke
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
*corrected dimple diameter
*corrected underpin positions
*added bottom chamfers and top cutouts (plate removal helpers)
*added stud connector ribs in side cavities
*sub-filed patternable area
*reworked main geometry from scratch to remove various smaller issues
*sub-filed to re-use in 30492 and 41819
There is a small overlap on the bottom, between the dimple and the center anti-stud. Not sure if that is problematic enough to rework that area.
