File Detail parts/s/30489s03.dat

Unofficial File parts/s/30489s03.dat

File Header:

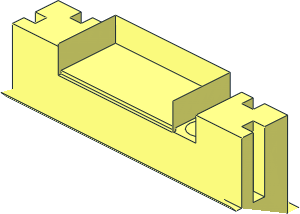

0 ~Brick Sports Field Section - Sides
0 Name: s\30489s03.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // Small Pins
1 16 0 0 0 1 0 0 0 -3 0 0 0 1 stug3-1x3.dat

0 // Clutch Ribs
1 16 38 -8 0 0 0 -2 0 20 0 -2 0 0 box4-1.dat
1 16 30 -8 8 -2 0 0 0 20 0 0 0 -2 box4-1.dat
1 16 20 0 8 -2 0 0 0 12 0 0 0 -2 box4-1.dat
1 16 10 0 8 -2 0 0 0 12 0 0 0 -2 box4-1.dat
1 16 0 0 8 -2 0 0 0 12 0 0 0 -2 box4-1.dat
1 16 -10 0 8 -2 0 0 0 12 0 0 0 -2 box4-1.dat
1 16 -20 0 8 -2 0 0 0 12 0 0 0 -2 box4-1.dat
1 16 -30 -8 8 -2 0 0 0 20 0 0 0 -2 box4-1.dat
1 16 -38 -8 0 0 0 2 0 20 0 -2 0 0 box4-1.dat

0 // Main Geometry
1 16 0 11 -9 0 0 40 1 -1 0 1 0 0 rect.dat
1 16 0 -3 -9.5 0 0 20 0 1 0 -.5 0 0 rect.dat
1 16 0 -4 .5 0 0 20 0 1 0 -9.5 0 0 rect.dat
1 16 0 -3.5 -9 0 0 20 .5 0 0 0 1 0 rect2p.dat
1 16 15 0 8 0 0 3 0 -1 0 2 0 0 rect1.dat
1 16 5 0 8 0 0 3 0 -1 0 2 0 0 rect1.dat
1 16 40 2 -4 0 1 0 0 0 -10 -2 0 0 rect2a.dat
1 16 24 -4 2 0 -1 0 -4 0 0 0 0 -8 rect.dat
1 16 0 12 -7 -40 0 0 0 -1 0 0 0 1 rect3.dat
1 16 0 -8 10 20 0 0 0 0 -4 0 1 0 rect3.dat
1 16 -15 0 8 0 0 3 0 -1 0 2 0 0 rect1.dat
1 16 -5 0 8 0 0 3 0 -1 0 2 0 0 rect1.dat
1 16 0 20 12 -40 0 0 0 -1 0 0 0 2 rect2p.dat
1 16 -40 2 -4 0 -1 0 -10 0 0 0 0 -2 rect2a.dat
1 16 -24 -4 2 0 1 0 0 0 4 8 0 0 rect.dat
3 16 40 12 -6 40 12 -2 40 20 10
3 16 40 12 -2 40 12 2 40 20 10
3 16 18 0 6 22 0 6 24 0 -6
3 16 -24 0 -6 -2 0 6 2 0 6
3 16 12 0 6 18 0 6 24 0 -6
3 16 8 0 6 12 0 6 24 0 -6
3 16 40 20 10 8 12 10 2 12 10
3 16 40 20 10 12 12 10 8 12 10
3 16 28 12 10 22 12 10 40 20 10
3 16 40 20 10 22 12 10 18 12 10
3 16 40 20 10 18 12 10 12 12 10
3 16 28 12 10 40 20 10 32 12 10
3 16 40 -8 10 40 -8 2 36 -8 2
3 16 28 -8 6 36 -8 -2 24 -8 -6
3 16 -40 12 -2 -40 12 -6 -40 20 10
3 16 -40 12 2 -40 12 -2 -40 20 10
3 16 -22 0 6 -18 0 6 -24 0 -6
3 16 -18 0 6 -12 0 6 -24 0 -6
3 16 -12 0 6 -8 0 6 -24 0 -6
3 16 -8 0 6 -2 0 6 -24 0 -6
3 16 -8 12 10 -40 20 10 -2 12 10
3 16 -12 12 10 -40 20 10 -8 12 10
3 16 -22 12 10 -28 12 10 -40 20 10
3 16 -22 12 10 -40 20 10 -18 12 10
3 16 -18 12 10 -40 20 10 -12 12 10
3 16 -40 20 10 -28 12 10 -32 12 10
3 16 -40 -8 2 -40 -8 10 -36 -8 2
3 16 -36 -8 -2 -28 -8 6 -24 -8 -6
4 16 20 -3 -10 -20 -3 -10 -40 10 -10 40 10 -10
4 16 20 -4 -9 20 -12 -10 20 -12 10 20 -4 10
4 16 20 -12 -10 20 -4 -9 20 -3 -9 20 -3 -10
4 16 24 -8 -6 40 -8 -6 40 12 -6 24 0 -6
4 16 24 0 -6 22 0 6 22 0 10 24 0 10
4 16 -24 0 -6 2 0 6 8 0 6 24 0 -6
4 16 40 20 10 2 12 10 -2 12 10 -40 20 10
4 16 40 12 2 40 -8 2 40 -8 10 40 20 10
4 16 40 -8 -2 40 -8 -6 24 -8 -6 36 -8 -2
4 16 32 -8 10 40 -8 10 36 -8 2 32 -8 6
4 16 32 -8 6 36 -8 2 36 -8 -2 28 -8 6
4 16 24 -8 -6 24 -8 10 28 -8 10 28 -8 6
4 16 2 0 10 2 12 10 8 12 10 8 0 10
4 16 18 12 10 18 0 10 12 0 10 12 12 10
4 16 22 0 10 22 12 10 28 12 10 24 0 10
4 16 28 12 10 28 -8 10 24 -8 10 24 0 10
4 16 32 -8 10 32 12 10 40 20 10 40 -8 10
4 16 -20 -12 10 -20 -12 -10 -20 -4 -9 -20 -4 10
4 16 -20 -3 -9 -20 -4 -9 -20 -12 -10 -20 -3 -10
4 16 24 0 -6 40 12 -6 -40 12 -6 -24 0 -6
4 16 -40 12 -6 -40 -8 -6 -24 -8 -6 -24 0 -6
4 16 -22 0 10 -22 0 6 -24 0 -6 -24 0 10
4 16 -40 -8 10 -40 -8 2 -40 12 2 -40 20 10
4 16 -24 -8 -6 -40 -8 -6 -40 -8 -2 -36 -8 -2
4 16 -36 -8 2 -40 -8 10 -32 -8 10 -32 -8 6
4 16 -36 -8 -2 -36 -8 2 -32 -8 6 -28 -8 6
4 16 -28 -8 10 -24 -8 10 -24 -8 -6 -28 -8 6
4 16 -8 12 10 -2 12 10 -2 0 10 -8 0 10
4 16 -12 0 10 -18 0 10 -18 12 10 -12 12 10
4 16 -28 12 10 -22 12 10 -22 0 10 -24 0 10
4 16 -24 -8 10 -28 -8 10 -28 12 10 -24 0 10
4 16 -40 20 10 -32 12 10 -32 -8 10 -40 -8 10

0 // Edge Lines
2 24 -40 -8 2 -40 -8 10
2 24 40 -8 10 40 20 10
2 24 40 -8 10 40 -8 2
2 24 -40 20 10 -40 -8 10
2 24 24 -8 10 28 -8 10
2 24 32 -8 10 40 -8 10
2 24 -22 0 10 -24 0 10
2 24 22 0 10 24 0 10
2 24 24 0 -6 -24 0 -6
2 24 -40 -8 10 -32 -8 10
2 24 -28 -8 10 -24 -8 10
2 24 -24 -8 -6 -40 -8 -6
2 24 24 -8 -6 40 -8 -6
2 24 20 -3 -10 20 -12 -10
2 24 -20 -12 -10 -20 -3 -10
2 24 20 -12 -10 20 -12 10
2 24 -20 -12 10 -20 -12 -10

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Chris Böhnke [KnightOfTarenta]

initially submitted the part.

2025-07-19 04:36:06

*corrected center pin height and length
*corrected dimple diameter
*corrected underpin positions
*added bottom chamfers and top cutouts (plate removal helpers)
*added stud connector ribs in side cavities
*sub-filed patternable area
*reworked main geometry from scratch to remove various smaller issues
*sub-filed to re-use in 30492 and 41819

There is a small overlap on the bottom, between the dimple and the center anti-stud. Not sure if that is problematic enough to rework that area.
