Unofficial File parts/s/30489s04.dat
File Header:

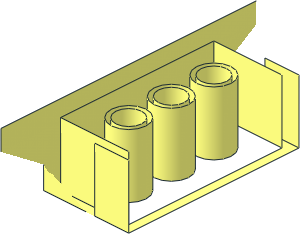

0 ~Brick Sports Field Section - Center Block
0 Name: s\30489s04.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Underside Studs
1 16 0 0 -20 0 0 1 0 -7 0 -1 0 0 stud4.dat
1 16 0 0 0 0 0 1 0 -7 0 -1 0 0 stud4.dat
1 16 0 0 20 0 0 1 0 -7 0 -1 0 0 stud4.dat
0 // Reusable Long
1 16 -20 23 0 0 1 0 0 0 5 40 0 0 rect3.dat
1 16 -16 14 0 0 -1 0 0 0 -14 36 0 0 rect.dat
1 16 12 14 40 0 0 -8 14 0 0 0 -1 0 rect.dat
1 16 0 14 36 0 0 16 14 0 0 0 1 0 rect3.dat
1 16 -20 .5 0 0 1 0 0 0 -4.5 -60 0 0 rect2a.dat
1 16 12 14 -40 8 0 0 0 0 -14 0 1 0 rect.dat
1 16 0 14 -36 0 0 16 -14 0 0 0 -1 0 rect3.dat
3 16 -20 18 40 -18 20 40 -20 28 40
3 16 0 28 40 -16 28 36 -20 28 40
3 16 16 28 36 4 28 40 20 28 40
3 16 -18 20 -40 -20 18 -40 -20 28 -40
3 16 -16 28 -36 0 28 -40 -20 28 -40
3 16 4 28 -40 16 28 -36 20 28 -40
4 16 -20 5 -60 -20 5 60 -20 18 40 -20 18 -40
4 16 -16 20 40 0 28 40 -20 28 40 -18 20 40
4 16 16 28 36 20 28 40 20 28 -40 16 28 -36
4 16 -16 28 36 0 28 40 4 28 40 16 28 36
4 16 -20 28 -40 0 28 -40 -16 20 -40 -18 20 -40
4 16 -16 28 36 -16 28 -36 -20 28 -40 -20 28 40
4 16 -16 28 -36 16 28 -36 4 28 -40 0 28 -40
0 // Edge Lines
2 24 -20 28 40 0 28 40
2 24 0 28 -40 -20 28 -40
2 24 16 28 -36 16 28 36
2 24 20 28 40 20 28 -40
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
Creative Commons Attribution License information
This part is copyright © Chris Böhnke
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
*corrected dimple diameter
*corrected underpin positions
*added bottom chamfers and top cutouts (plate removal helpers)
*added stud connector ribs in side cavities
*sub-filed patternable area
*reworked main geometry from scratch to remove various smaller issues
*sub-filed to re-use in 30492 and 41819
There is a small overlap on the bottom, between the dimple and the center anti-stud. Not sure if that is problematic enough to rework that area.
