Unofficial File parts/s/u7047s01.dat
File Header:

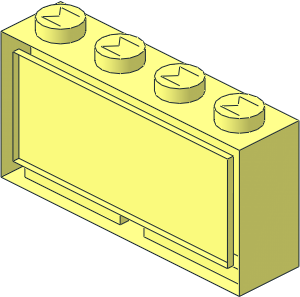

0 ~Modulex Window 1 x 4 x 2 without Front Surface
0 Name: s\u7047s01.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 -12.5 0 0 1 0 0 0 1 0 0 0 1 mstug-1x2.dat
1 16 12.5 0 0 1 0 0 0 1 0 0 0 1 mstug-1x2.dat
1 16 0 25 0 0 0 25 0 -25 0 6.25 0 0 box3u2p.dat
0 BFC INVERTNEXT
1 16 0 11.875 -6.25 22.5 0 0 0 0 9.375 0 1.25 0 box5.dat
0 BFC INVERTNEXT
1 16 0 11.875 6.25 22.5 0 0 0 0 9.375 0 -8.75 0 box5.dat
0 BFC INVERTNEXT
1 16 12.5 25 1.25 10 0 0 0 -2.5 0 0 0 -5 box4-1.dat
0 BFC INVERTNEXT
1 16 -12.5 25 1.25 -10 0 0 0 -2.5 0 0 0 -5 box4-1.dat
4 16 25 0 6.25 25 25 6.25 22.5 21.25 6.25 22.5 2.5 6.25
3 16 25 25 6.25 22.5 22.5 6.25 22.5 21.25 6.25
3 16 25 25 6.25 22.5 25 6.25 22.5 22.5 6.25
4 16 -25 0 6.25 25 0 6.25 22.5 2.5 6.25 -22.5 2.5 6.25
4 16 -22.5 21.25 6.25 -25 25 6.25 -25 0 6.25 -22.5 2.5 6.25
3 16 -22.5 22.5 6.25 -22.5 25 6.25 -25 25 6.25
3 16 -25 25 6.25 -22.5 21.25 6.25 -22.5 22.5 6.25
4 16 2.5 22.5 6.25 -2.5 22.5 6.25 -22.5 21.25 6.25 22.5 21.25 6.25
3 16 -2.5 22.5 6.25 -22.5 22.5 6.25 -22.5 21.25 6.25
3 16 22.5 21.25 6.25 22.5 22.5 6.25 2.5 22.5 6.25
4 16 -2.5 22.5 6.25 2.5 22.5 6.25 2.5 25 6.25 -2.5 25 6.25
2 24 -2.5 25 6.25 2.5 25 6.25
2 24 22.5 25 6.25 25 25 6.25
2 24 -22.5 25 6.25 -25 25 6.25
2 24 25 25 -6.25 -25 25 -6.25
4 16 -2.5 25 6.25 2.5 25 6.25 2.5 25 -3.75 -2.5 25 -3.75
4 16 -25 25 -6.25 -25 25 6.25 -22.5 25 6.25 -22.5 25 -3.75
3 16 2.5 25 -3.75 22.5 25 -3.75 25 25 -6.25
4 16 25 25 -6.25 -25 25 -6.25 -2.5 25 -3.75 2.5 25 -3.75
3 16 -25 25 -6.25 -22.5 25 -3.75 -2.5 25 -3.75
4 16 25 25 6.25 25 25 -6.25 22.5 25 -3.75 22.5 25 6.25
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2025-07-19 11:23:11
Creative Commons Attribution License information
This part is copyright © Magnus Forsberg
Licensed under CC BY 4.0
