File Detail parts/s/u7056s01.dat

Download

Unofficial File parts/s/u7056s01.dat

Warning: Model breaking changes to unofficial parts may occur anytime prior to release

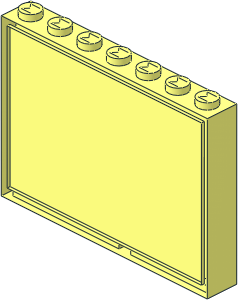

~Modulex Window 1 x 7 x 5 without Front Surface

0 ~Modulex Window  1 x  7 x  5 without Front Surface
0 Name: s\u7056s01.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show file code:

1 16 -31.25 0 0 1 0 0 0 1 0 0 0 1 mstug-1x2.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 mstug-1x3.dat
1 16 31.25 0 0 1 0 0 0 1 0 0 0 1 mstug-1x2.dat
1 16 0 62.5 0 0 0 43.75 0 -62.5 0 6.25 0 0 box3u2p.dat

0 BFC INVERTNEXT
1 16 0 30.625 -6.25 41.25 0 0 0 0 28.125 0 1.25 0 box5.dat
0 BFC INVERTNEXT
1 16 0 30.625 6.25 41.25 0 0 0 0 28.125 0 -8.75 0 box5.dat
0 BFC INVERTNEXT
1 16 25 62.5 1.25 16.25 0 0 0 -2.5 0 0 0 -5 box4-1.dat
0 BFC INVERTNEXT
1 16 -18.75 62.5 1.25 -22.5 0 0 0 -2.5 0 0 0 -5 box4-1.dat

4 16 41.25 58.75 6.25 41.25 2.5 6.25 43.75 0 6.25 43.75 62.5 6.25
3 16 43.75 62.5 6.25 41.25 60 6.25 41.25 58.75 6.25
3 16 43.75 62.5 6.25 41.25 62.5 6.25 41.25 60 6.25
4 16 -43.75 0 6.25 43.75 0 6.25 41.25 2.5 6.25 -41.25 2.5 6.25
3 16 -41.25 60 6.25 -41.25 62.5 6.25 -43.75 62.5 6.25
3 16 -43.75 62.5 6.25 -41.25 58.75 6.25 -41.25 60 6.25
4 16 -43.75 0 6.25 -41.25 2.5 6.25 -41.25 58.75 6.25 -43.75 62.5 6.25
3 16 3.75 60 6.25 -41.25 60 6.25 -41.25 58.75 6.25
4 16 41.25 58.75 6.25 8.75 60 6.25 3.75 60 6.25 -41.25 58.75 6.25
3 16 41.25 58.75 6.25 41.25 60 6.25 8.75 60 6.25
4 16 3.75 60 6.25 8.75 60 6.25 8.75 62.5 6.25 3.75 62.5 6.25
2 24 3.75 62.5 6.25 8.75 62.5 6.25
2 24 41.25 62.5 6.25 43.75 62.5 6.25
2 24 -41.25 62.5 6.25 -43.75 62.5 6.25
2 24 43.75 62.5 -6.25 -43.75 62.5 -6.25
4 16 3.75 62.5 6.25 8.75 62.5 6.25 8.75 62.5 -3.75 3.75 62.5 -3.75
4 16 -43.75 62.5 -6.25 -43.75 62.5 6.25 -41.25 62.5 6.25 -41.25 62.5 -3.75
3 16 8.75 62.5 -3.75 41.25 62.5 -3.75 43.75 62.5 -6.25
4 16 -43.75 62.5 -6.25 3.75 62.5 -3.75 8.75 62.5 -3.75 43.75 62.5 -6.25
3 16 -43.75 62.5 -6.25 -41.25 62.5 -3.75 3.75 62.5 -3.75
4 16 43.75 62.5 6.25 43.75 62.5 -6.25 41.25 62.5 -3.75 41.25 62.5 6.25

Status

Needs 2 More Votes (N)

Current Votes:

No recorded votes

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Part Dependencies

Official parents and subparts

Part Events

Magnus Forsberg [MagFors]

initially submitted the part.

2025-07-19 11:23:11
