File Detail parts/s/45141s02.dat

Official File parts/s/45141s02.dat

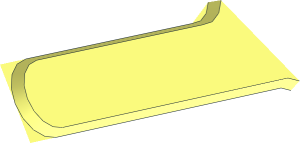

~Duplo Fuel Canister 1 x 2 x 3 - Embossed Arm

File Header:

0 ~Duplo Fuel Canister  1 x  2 x  3 - Embossed Arm
0 Name: s\45141s02.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Subpart UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07

Show contents

1 16 -28 -12 -19 1.51716 0 -2.58809 2.58809 0 1.51716 0 1 0 2-4chrd.dat
0 BFC INVERTNEXT
1 16 -28 -12 -20 .25286 0 -.43135 .43135 0 .25286 0 1 0 2-4con6.dat
1 16 -28 -12 -19 1.51716 0 -2.58809 2.58809 0 1.51716 0 1 0 2-4edge.dat
1 16 -28 -12 -20 1.77002 0 -3.01944 3.01944 0 1.77002 0 1 0 2-4ndis.dat
1 16 -28 -12 -20 1.77002 0 -3.01944 3.01944 0 1.77002 0 1 0 2-4edge.dat
4 16 -10.3519 -26.3283 -20 -29.77 -15.0194 -20 -29.5172 -14.5881 -19 -10.1606 -25.8664 -19
4 16 -26.4828 -9.4119 -19 -26.23 -8.9806 -20 -.0081 -24.4017 -20 -.1995 -24.8637 -19
2 24 -10.3519 -26.3283 -20 -29.77 -15.0194 -20
2 24 -29.5172 -14.5881 -19 -10.1606 -25.8664 -19
2 24 -.0081 -24.4017 -20 -26.23 -8.9806 -20
2 24 -.1995 -24.8637 -19 -26.4828 -9.4119 -19
1 16 -11.5 -29.1 -19 .5 0 0 0 0 .5 0 -1 0 3-16con6.dat
1 16 -11.5 -29.1 -20 3 0 0 0 0 3 0 1 0 3-16chrd.dat
1 16 -11.5 -29.1 -20 3 0 0 0 0 3 0 1 0 3-16edge.dat
1 16 -11.5 -29.1 -19 3.5 0 0 0 0 3.5 0 1 0 3-16edge.dat
1 16 -11.5 -29.1 -19 3.5 0 0 0 0 3.5 0 1 0 3-16ndis.dat
4 16 -10.1606 -25.8664 -19 -29.5172 -14.5881 -19 -26.4828 -9.4119 -19 -8 -25.6 -19
4 16 -.1995 -25.13 -19 -8 -25.6 -19 -26.4828 -9.4119 -19 -.1995 -24.8637 -19
4 16 -8 -29.1 -19 -8 -25.6 -19 -.1995 -25.13 -19 1.14 -25.13 -19
1 16 1.14 -21.63 -19 0 0 -3.5 -3.5 0 0 0 1 0 1-16tndis.dat
1 16 1.14 -21.63 -19 0 0 -3.5 -3.5 0 0 0 1 0 1-16edge.dat
1 16 1.14 -21.63 -19 0 0 -.5 -.5 0 0 0 -1 0 1-16con6.dat
1 16 1.14 -21.63 -20 0 0 -3 -3 0 0 0 1 0 1-16edge.dat
1 16 1.14 -21.63 -20 0 0 -3 -3 0 0 0 1 0 1-16chrd.dat
5 24 -.0081 -24.4017 -20 -.1995 -24.8637 -19 1.14 -24.63 -20 -26.23 -8.9806 -20
5 24 -10.3519 -26.3283 -20 -10.1606 -25.8664 -19 -9.3787 -26.9787 -20 -29.77 -15.0195 -20

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2025-07-20 23:13:19

Rotated the arm ends a little more to be in line with the X-shape as suggested. Split rotated prims to unrotated prims as suggested. Subfiled embossed arm as suggested. Added complementary cond lines as suggested.

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2025-07-21 21:11:02

* Missing geometry:

2 69 -.0081 -24.4017 -20 1.14 -25.13 -19

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2025-07-21 21:13:30

* My bad. Missed the new prim.

Rene Rechthaler [Blechtaler]

posted a vote of Certify.

2025-07-21 21:43:46
