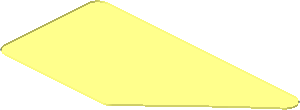

File Detail parts/s/stickerback008x016b.dat

Unofficial File parts/s/stickerback008x016b.dat

File Header:

0 ~Sticker Back  0.8 x  1.6 Trapezoidal 1
0 Name: s\stickerback008x016b.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // Primitives
1 16 -14.6675 0 6.5 -1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 14.6675 0 6.5 0 0 1.5 0 -1 0 1.5 0 0 3-8chrd.dat
1 16 -14.6675 0 -6.5 -1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 .6498 0 -6.5 0 0 1.5 0 -1 0 -1.5 0 0 1-8chrd.dat
1 16 -14.6675 -.25 6.5 -1.5 0 0 0 .25 0 0 0 1.5 1-4cyli.dat
1 16 14.6675 -.25 6.5 0 0 1.5 0 .25 0 1.5 0 0 3-8cyli.dat
1 16 -14.6675 -.25 -6.5 -1.5 0 0 0 .25 0 0 0 -1.5 1-4cyli.dat
1 16 .6498 -.25 -6.5 0 0 1.5 0 .25 0 -1.5 0 0 1-8cyli.dat
0 // Bottom face
4 16 -16.1675 0 -6.5 1.71045 0 -7.56065 .6498 0 -8 -14.6675 0 -8
3 16 -16.1675 0 -6.5 3.8336 0 -5.4515 1.71045 0 -7.56065
4 16 -16.1675 0 -6.5 -16.1675 0 6.5 10.9074 0 1.2093 3.8336 0 -5.4515
3 16 -16.1675 0 6.5 15.72815 0 5.43935 10.9074 0 1.2093
4 16 -16.1675 0 6.5 -14.6675 0 8 14.6675 0 8 15.72815 0 5.43935
0 // Lateral face
4 16 -16.1675 0 6.5 -16.1675 0 -6.5 -16.1675 -.25 -6.5 -16.1675 -.25 6.5
4 16 -14.6675 0 -8 .6498 0 -8 .6498 -.25 -8 -14.6675 -.25 -8
4 16 -14.6675 0 8 -14.6675 -.25 8 14.6675 -.25 8 14.6675 0 8
4 16 1.71045 0 -7.56065 3.8336 0 -5.4515 3.8336 -.25 -5.4515 1.71045 -.25 -7.56065
4 16 3.8336 0 -5.4515 10.9074 0 1.2093 10.9074 -.25 1.2093 3.8336 -.25 -5.4515
4 16 10.9074 0 1.2093 15.72815 0 5.43935 15.72815 -.25 5.43935 10.9074 -.25 1.2093
0 // Conditional lines
5 24 3.8336 0 -5.4515 3.8336 -.25 -5.4515 1.71045 0 -7.56065 10.9074 0 1.2093
5 24 10.9074 0 1.2093 10.9074 -.25 1.2093 3.8336 0 -5.4515 15.72815 0 5.43935

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Massimo Maso [Sirio]

initially submitted the part.

2025-07-24 21:54:30

Orion Pobursky [OrionP]

renamed the part.

2025-08-02 17:19:46

"parts/s/stickerback008x016.dat" to "parts/s/stickerback008x016b.dat"

Orion Pobursky [OrionP]

edited the part header.

2025-08-02 17:21:53

Header Edits

description:
~Sticker Back 0.8 x 1.6 Irregular
to
~Sticker Back 0.8 x 1.6 Trapezoidal 1

Comment:
The description could be better

Willy Tschager [Holly-Wood]

made the following comment.

2025-08-30 10:20:35

* Missing Complementaries:

2 422 15.72815 -.25 5.43935 15.72815 0 5.43935
2 422 1.71045 -.25 -7.56065 1.71045 0 -7.56065
