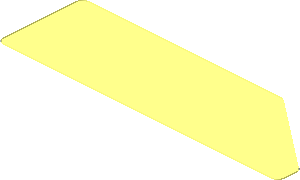

File Detail parts/s/stickerback010x033a.dat

Unofficial File parts/s/stickerback010x033a.dat

File Header:

0 ~Sticker Back  1.0 x  3.3 Irregular
0 Name: s\stickerback010x033a.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // Primitives
1 16 -31.5 0 8.5 -1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 13.787 0 8.5 0 0 1.5 0 -1 0 1.5 0 0 1-8chrd.dat
1 16 31.5 0 -5.6704 1.5 0 0 0 -1 0 0 0 1.5 1-8chrd.dat
1 16 -31.5 0 -8.5 -1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 31.5 0 -8.5 1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 -31.5 0 8.5 -1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 13.787 0 8.5 0 0 1.5 0 -.25 0 1.5 0 0 1-8cyli.dat
1 16 31.5 0 -5.6704 1.5 0 0 0 -.25 0 0 0 1.5 1-8cyli.dat
1 16 -31.5 0 -8.5 -1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 16 31.5 0 -8.5 1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
0 // Bottom faces
4 16 -31.5 0 10 -31.5 0 -10 -33 0 -8.5 -33 0 8.5
4 16 -31.5 0 10 13.787 0 10 14.8477 0 9.5607 32.5607 0 -4.6098
4 16 -31.5 0 10 32.5607 0 -4.6098 33 0 -5.6704 33 0 -8.5
4 16 -31.5 0 10 33 0 -8.5 31.5 0 -10 -31.5 0 -10
0 // Lateral faces
4 16 -31.5 0 10 -31.5 -.25 10 13.787 -.25 10 13.787 0 10
4 16 14.8477 0 9.5607 14.8477 -.25 9.5607 32.5607 -.25 -4.6098 32.5607 0 -4.6098
3 16 -33 0 8.5 -33 -.25 6.3 -33 -.25 8.5
4 16 -33 0 8.5 -33 0 -8.5 -33 -.25 -5.3 -33 -.25 6.3
3 16 -33 0 -8.5 -33 -.25 -7 -33 -.25 -5.3
3 16 -33 0 -8.5 -33 -.25 -8.5 -33 -.25 -7
4 16 33 0 -5.6704 33 -.25 -5.6704 33 -.25 -8.5 33 0 -8.5
4 16 -31.5 0 -10 31.5 0 -10 31.5 -.25 -10 -31.5 -.25 -10
0 // Conditional lines
5 24 14.8477 -.25 9.5607 14.8477 0 9.5607 14.3611 -.25 9.8859 32.5607 -.25 -4.6098
5 24 32.5607 -.25 -4.6098 32.5607 0 -4.6098 32.8859 -.25 -5.0964 14.8477 -.25 9.5607

Status:

Certified (ACCN)

Current Votes:

User	Vote
OrionP	Admin Review
RainbowDolphin	Certify
Blechtaler	Certify

Official parents and subparts

Part Events:

Massimo Maso [Sirio]

initially submitted the part.

2025-07-24 21:55:30

Gabriel Läufer [Dr.Bricktacular]

posted a vote of Hold.

2025-07-25 11:44:49

Contains the primitves (1-4chrd.dat) for the sticker top in the wrong color. I guess this is not intended/correct. See associated part 6254024o.dat.

Orion Pobursky [OrionP]

posted a vote of Hold.

2025-07-25 13:28:26

Also, this naming convention only applies to rectangular/square rounded corner stickers. I think there room for shapes like this but we need to discuss the naming on the forums.

Massimo Maso [Sirio]

submitted a new version of the part.

2025-07-29 16:54:18

Orion Pobursky [OrionP]

renamed the part.

2025-08-02 17:18:23

"parts/s/stickerback010x033.dat" to "parts/s/stickerback010x033a.dat"

Rene Rechthaler [Blechtaler]

posted a vote of Certify.

2025-08-21 12:28:10

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.
