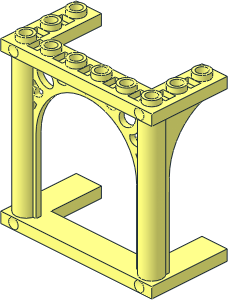

Arch 3 x 6 x 5 Ornamented with Hollow Stud
File Header:
0 Arch 3 x 6 x 5 Ornamented with Hollow Stud 0 Name: 30613.dat 0 Author: Alex Taylor [anathema] 0 !LDRAW_ORG Part UPDATE 2025-05 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2010-04-05 [PTadmin] Official Update 2010-01 0 !HISTORY 2025-05-05 [Sirio] Completely reworked; modified for combining with 19063; modified description 0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05
Show contents
0 // Subparts 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30613s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\30613s01.dat 0 // Primitives 0 BFC INVERTNEXT 1 16 0 0 0 4 0 0 0 4 0 0 0 5 box5.dat 0 BFC INVERTNEXT 1 16 0 4 50 0 0 40 -4 0 0 0 -40 0 box3u2p.dat 1 16 0 12 2 3 0 0 0 0 3 0 -1 0 4-4ndis.dat 0 BFC INVERTNEXT 1 16 0 12 -2 3 0 0 0 0 3 0 4 0 4-4cylo.dat 1 16 0 12 -2 3 0 0 0 0 3 0 1 0 4-4ndis.dat 0 BFC INVERTNEXT 1 16 0 116 50 0 0 40 -4 0 0 0 -40 0 box3u4a.dat 1 16 0 118 6 41.1716 0 0 0 0 2 0 1 0 rect2p.dat 1 16 0 116 0 1 0 0 0 -1 0 0 0 1 stug3-1x5.dat 0 BFC INVERTNEXT 1 16 0 118 46 0 0 56 -2 0 0 0 -52 0 box3u2p.dat 0 // Faces 4 16 -10 0 6 10 0 6 40 0 10 -40 0 10 4 16 -10 0 6 -4 0 5 4 0 5 10 0 6 4 16 -10 0 -6 10 0 -6 4 0 -5 -4 0 -5 4 16 -10 0 -6 -60 0 -10 60 0 -10 10 0 -6 4 16 -46.2 .2 -10 46.2 .2 -10 60 0 -10 -60 0 -10 4 16 -46.2 .2 -10 -46.2 4 -10 46.2 4 -10 46.2 .2 -10 4 16 -46.2 7.8 -10 46.2 7.8 -10 46.2 4 -10 -46.2 4 -10 4 16 -46.2 7.8 -10 -60 8 -10 60 8 -10 46.2 7.8 -10 4 16 60 8 -10 -60 8 -10 -40 8 10 40 8 10 3 16 0 9 2 -5.9 8 2 5.9 8 2 3 16 0 9 -2 5.9 8 -2 -5.9 8 -2 4 16 60 112 -10 40 112 10 -40 112 10 -60 112 -10 4 16 -46.2 112.2 -10 46.2 112.2 -10 60 112 -10 -60 112 -10 4 16 -46.2 112.2 -10 -46.2 116 -10 46.2 116 -10 46.2 112.2 -10 4 16 44.3416 116 2.83 -44.3416 116 2.83 -41.1716 116 6 41.1716 116 6 4 16 44.3416 116 2.83 56 116 -6 -56 116 -6 -44.3416 116 2.83 4 16 -46.2 119.8 -10 46.2 119.8 -10 46.2 116 -10 -46.2 116 -10 4 16 -46.2 119.8 -10 -60 120 -10 60 120 -10 46.2 119.8 -10 4 16 40 120 10 41.1716 120 6 -41.1716 120 6 -40 120 10 4 16 60 120 -10 -60 120 -10 -56 120 -6 56 120 -6 0 // Edges 2 24 5.9 8 2 -5.9 8 2 2 24 5.9 8 -2 -5.9 8 -2 2 24 60 0 -10 -60 0 -10 2 24 60 8 -10 -60 8 -10 2 24 60 112 -10 -60 112 -10 2 24 60 120 -10 -60 120 -10 0 // Studs 0 BFC INVERTNEXT 1 16 -50 4 40 4 0 0 0 -4 0 0 0 4 4-4cyli.dat 1 16 -50 4 40 4 0 0 0 1 0 0 0 4 4-4edge.dat 1 16 -50 4 40 4 0 0 0 1 0 0 0 4 4-4disc.dat 0 BFC INVERTNEXT 1 16 50 4 40 4 0 0 0 -4 0 0 0 4 4-4cyli.dat 1 16 50 4 40 4 0 0 0 1 0 0 0 4 4-4edge.dat 1 16 50 4 40 4 0 0 0 1 0 0 0 4 4-4disc.dat 0 BFC INVERTNEXT 1 16 -50 4 20 4 0 0 0 -4 0 0 0 4 4-4cyli.dat 1 16 -50 4 20 4 0 0 0 1 0 0 0 4 4-4edge.dat 1 16 -50 4 20 4 0 0 0 1 0 0 0 4 4-4disc.dat 0 BFC INVERTNEXT 1 16 50 4 20 4 0 0 0 -4 0 0 0 4 4-4cyli.dat 1 16 50 4 20 4 0 0 0 1 0 0 0 4 4-4edge.dat 1 16 50 4 20 4 0 0 0 1 0 0 0 4 4-4disc.dat 0 BFC INVERTNEXT 1 16 -50 4 0 4 0 0 0 -4 0 0 0 4 4-4cyli.dat 1 16 -50 4 0 4 0 0 0 1 0 0 0 4 4-4edge.dat 1 16 -50 4 0 4 0 0 0 1 0 0 0 4 4-4disc.dat 0 BFC INVERTNEXT 1 16 -30 4 0 4 0 0 0 -4 0 0 0 4 4-4cyli.dat 1 16 -30 4 0 4 0 0 0 1 0 0 0 4 4-4edge.dat 1 16 -30 4 0 4 0 0 0 1 0 0 0 4 4-4disc.dat 0 BFC INVERTNEXT 1 16 -10 4 0 4 0 0 0 -4 0 0 0 4 4-4cyli.dat 1 16 -10 4 0 4 0 0 0 1 0 0 0 4 4-4edge.dat 1 16 -10 4 0 4 0 0 0 1 0 0 0 4 4-4disc.dat 0 BFC INVERTNEXT 1 16 10 4 0 4 0 0 0 -4 0 0 0 4 4-4cyli.dat 1 16 10 4 0 4 0 0 0 1 0 0 0 4 4-4edge.dat 1 16 10 4 0 4 0 0 0 1 0 0 0 4 4-4disc.dat 0 BFC INVERTNEXT 1 16 30 4 0 4 0 0 0 -4 0 0 0 4 4-4cyli.dat 1 16 30 4 0 4 0 0 0 1 0 0 0 4 4-4edge.dat 1 16 30 4 0 4 0 0 0 1 0 0 0 4 4-4disc.dat 0 BFC INVERTNEXT 1 16 50 4 0 4 0 0 0 -4 0 0 0 4 4-4cyli.dat 1 16 50 4 0 4 0 0 0 1 0 0 0 4 4-4edge.dat 1 16 50 4 0 4 0 0 0 1 0 0 0 4 4-4disc.dat
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Massimo Maso [Sirio]
Part Header Editor
initially submitted the part.
2025-05-07 23:54:49
Modfied for combining with part 19063.
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Certify.
2025-05-08 20:58:54
Rene Rechthaler [Blechtaler]
Part Header Editor
posted a vote of Certify.
2025-05-08 21:09:26
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2025-05-28 02:49:59
Orion Pobursky [OrionP]
Part Library Admin
2025-05-28 03:31:41
Release 2025-05
Creative Commons Attribution License information

This part is copyright © Alex Taylor
Licensed under CC BY 4.0
