Unofficial File parts/6254024b.dat
Part Attributes:
File Header:

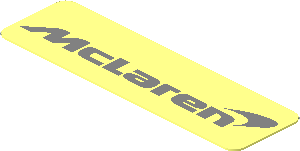

0 Sticker 0.5 x 1.8 with Silver McLaren Logo on Transparent Background
0 Name: 6254024b.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 75892stk01, McLaren, Rebrickable 49144, Senna, Set 75892
0 !KEYWORDS Speed Champions
Show contents
0 // Stickerback
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\stickerback005x018.dat
0 // Logo primitives
0 BFC NOCLIP
1 80 -1.932 -.25 -1.064 .28 0 0 0 1 0 0 0 .28 logo-mclaren-text.dat
1 80 13.692 -.25 .532 .28 0 0 0 1 0 0 0 .28 logo-mclaren-icon.dat
0 BFC CLIP
1 16 0 -.25 0 .28 0 0 0 1 0 0 0 .28 logo-mclaren-box.dat
0 // Primitives
1 16 -16.5 -.25 3.8 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 16 16.5 -.25 3.8 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 16 -16.5 -.25 -3.8 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 16 16.5 -.25 -3.8 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
0 // Top face
4 16 16.5 -.25 5.3 -16.5 -.25 5.3 -18 -.25 3.8 -17.192 -.25 2.464
3 16 16.5 -.25 5.3 -17.192 -.25 2.464 16.212 -.25 2.464
4 16 16.5 -.25 5.3 16.212 -.25 2.464 17.192 -.25 2.464 18 -.25 3.8
4 16 -18 -.25 3.8 -18 -.25 -3.8 -17.192 -.25 -2.464 -17.192 -.25 2.464
4 16 18 -.25 -3.8 18 -.25 3.8 17.192 -.25 2.464 17.192 -.25 -2.464
4 16 -16.5 -.25 -5.3 -15.49856 -.25 -2.464 -17.192 -.25 -2.464 -18 -.25 -3.8
3 16 -16.5 -.25 -5.3 -13.664 -.25 -2.464 -15.49856 -.25 -2.464
3 16 -16.5 -.25 -5.3 -12.208 -.25 -2.464 -13.664 -.25 -2.464
3 16 -16.5 -.25 -5.3 -10.724 -.25 -2.464 -12.208 -.25 -2.464
3 16 -16.5 -.25 -5.3 -9.268 -.25 -2.464 -10.724 -.25 -2.464
3 16 -16.5 -.25 -5.3 -8.932 -.25 -2.464 -9.268 -.25 -2.464
3 16 -16.5 -.25 -5.3 -7.868 -.25 -2.464 -8.932 -.25 -2.464
3 16 -16.5 -.25 -5.3 -5.152 -.25 -2.464 -7.868 -.25 -2.464
3 16 -16.5 -.25 -5.3 -4.816 -.25 -2.464 -5.152 -.25 -2.464
3 16 -16.5 -.25 -5.3 -2.212 -.25 -2.464 -4.816 -.25 -2.464
3 16 -16.5 -.25 -5.3 -1.988 -.25 -2.464 -2.212 -.25 -2.464
3 16 -16.5 -.25 -5.3 -.924 -.25 -2.464 -1.988 -.25 -2.464
3 16 -16.5 -.25 -5.3 1.036 -.25 -2.464 -.924 -.25 -2.464
3 16 -16.5 -.25 -5.3 2.1 -.25 -2.464 1.036 -.25 -2.464
4 16 -16.5 -.25 -5.3 16.5 -.25 -5.3 2.436 -.25 -2.464 2.1 -.25 -2.464
3 16 16.5 -.25 -5.3 3.892 -.25 -2.464 2.436 -.25 -2.464
3 16 16.5 -.25 -5.3 5.04 -.25 -2.464 3.892 -.25 -2.464
3 16 16.5 -.25 -5.3 6.104 -.25 -2.464 5.04 -.25 -2.464
3 16 16.5 -.25 -5.3 8.904 -.25 -2.464 6.104 -.25 -2.464
3 16 16.5 -.25 -5.3 9.352 -.25 -2.464 8.904 -.25 -2.464
3 16 16.5 -.25 -5.3 10.808 -.25 -2.464 9.352 -.25 -2.464
3 16 16.5 -.25 -5.3 11.872 -.25 -2.464 10.808 -.25 -2.464
3 16 16.5 -.25 -5.3 13.328 -.25 -2.464 11.872 -.25 -2.464
4 16 16.5 -.25 -5.3 18 -.25 -3.8 17.192 -.25 -2.464 13.328 -.25 -2.464
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2025-07-24 22:15:33
2025-07-25 17:42:46
2025-07-25 19:09:13
the noclip is commented out, should be that way:
0 // Stickerback
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\stickerback005x018.dat
0 // Logo primitives
0 BFC NOCLIP
1 80 -1.932 -.25 -1.064 .28 0 0 0 1 0 0 0 .28 logo-mclaren-text.dat
1 80 13.692 -.25 .532 .28 0 0 0 1 0 0 0 .28 logo-mclaren-icon.dat
0 BFC CLIP
1 16 0 -.25 0 .28 0 0 0 1 0 0 0 .28 logo-mclaren-box.dat
0 // Stickerback
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\stickerback005x018.dat
0 // Logo primitives
0 BFC NOCLIP
1 80 -1.932 -.25 -1.064 .28 0 0 0 1 0 0 0 .28 logo-mclaren-text.dat
1 80 13.692 -.25 .532 .28 0 0 0 1 0 0 0 .28 logo-mclaren-icon.dat
0 BFC CLIP
1 16 0 -.25 0 .28 0 0 0 1 0 0 0 .28 logo-mclaren-box.dat
2025-07-25 21:10:26
2025-07-25 21:31:41
2025-07-25 21:34:12
this quad could be split like it is done in 6253679d
2025-07-25 21:48:48
Of course yes, but the number of triangles increases.
In this case there are no problems of rounding and it can be done without double vertices.
Sometimes I connect all the top management and that's fine, other times I simplify like here and it's fine too.
In this case there are no problems of rounding and it can be done without double vertices.
Sometimes I connect all the top management and that's fine, other times I simplify like here and it's fine too.
Here it is.
