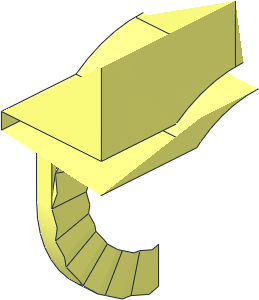

~Duplo Ladder 7 Rung with Locking Ring - Locking Quarter

File Header:

0 ~Duplo Ladder 7 Rung with Locking Ring - Locking Quarter
0 Name: s\19663s02.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 19.8 0 0 0 1 0 -19 0 0 0 0 -19 48\1-8edge.dat
1 16 19.8 0 0 0 -1 0 -1 0 0 0 0 -1 48\5-48ring19.dat
1 16 19.8 0 0 0 -1 0 -5 0 0 0 0 -5 48\5-48ring4.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\21996s01.dat
1 16 0 0 0 1 0 0 0 .25882 .96593 0 -.96593 .25882 s\21996s01.dat
1 16 0 0 0 1 0 0 0 .5 .86603 0 -.86603 .5 s\21996s01.dat
1 16 0 0 0 1 0 0 0 .70711 .70711 0 -.70711 .70711 s\21996s01.dat
1 16 0 0 0 1 0 0 0 .86603 .5 0 -.5 .86603 s\21996s01.dat
1 16 0 0 0 1 0 0 0 .96593 .25882 0 -.25882 .96593 s\21996s01.dat
1 16 0 0 0 1 0 0 0 -.25882 -.96593 0 -.96593 .25882 s\21996s01.dat
1 16 0 0 0 1 0 0 0 -.5 -.86603 0 -.86603 .5 s\21996s01.dat
1 16 0 0 0 1 0 0 0 -.70711 -.70711 0 -.70711 .70711 s\21996s01.dat
2 24 19.8 0 -27.9993 19.8 0 -18.9995
1 16 15.8 0 0 0 1 0 0 0 28 -28 0 0 48\1-4edge.dat
1 16 15.8 0 0 0 1 0 0 0 28 -28 0 0 48\1-4aring.dat
1 16 19.8 0 0 0 -4 0 0 0 28 -28 0 0 48\1-4cyli.dat
2 24 19.8 0 -28 19.8 -19 -28
2 24 15.8 0 -28 15.8 -19 -28
4 16 19.8 -19 -28 15.8 -19 -28 15.8 0 -28 19.8 0 -28
1 16 19.8 0 0 0 1 0 0 0 -28 -28 0 0 48\1-8edge.dat

2 24 19.8 -19 -28 15.8 -19 -28
2 24 15.8 -19 -28 15.8 -19 -37.2
2 24 15.8 -19 -37.2 15.8 -23 -37.2
2 24 15.8 -23 -37.2 42 -23 -37.2
2 24 42 -23 -37.2 42 -43 -37.2
3 16 42 -43 -37.2 42 -23 -37.2 15.8 -23 -37.2

0 BFC INVERTNEXT
1 16 46 0 0 0 -26.2 0 -25 0 0 0 0 -25 48\5-48cylo.dat
1 16 46 0 0 0 -1 0 -25 0 0 0 0 -25 48\5-48tndis.dat

2 24 46 -19 -16.1711 46 -19.835 -15.22
4 16 46 -19 -41.4 46 -19 -16.1711 46 -19.835 -15.22 46 -25 -15.22
2 24 46 -19 -16.1711 46 -19 -41.4

2 24 19.8 -19 -16.1711 46 -19 -16.1711

4 16 15.8 -19 -28 19.8 -19 -28 46 -19 -41.4 15.8 -19 -37.2
4 16 46 -19 -16.1711 46 -19 -41.4 19.8 -19 -28 19.8 -19 -16.1711
4 16 19.8 -19 -16.1711 19.8 -19.835 -15.22 46 -19.835 -15.22 46 -19 -16.1711
4 16 19.8 -19 -16.1711 19.8 -19 -28 19.8 0 -27.9993 19.8 -13.4351 -13.4351
3 16 19.8 -13.4351 -13.4351 19.8 -15.0746 -11.5672 19.8 -15.868 -12.176
4 16 19.8 -19.835 -15.22 19.8 -19 -16.1711 19.8 -13.4351 -13.4351 19.8 -15.868 -12.176

2 24 19.8 -19.835 -15.22 19.8 -19 -16.1711
2 24 19.8 -19 -16.1711 19.8 -19 -28
5 24 46 -19.835 -15.22 19.8 -19.835 -15.22 46 -19 -16.1711 46 -21.65 -12.5

1 16 42 0 0 0 1 0 -29 0 0 0 0 -29 48\5-48tndis.dat
1 16 42 0 0 0 -26.2 0 -29 0 0 0 0 -29 48\5-48cylo.dat
1 16 15.8 0 0 0 1 0 -29 0 0 0 0 -29 48\5-48chrd.dat
2 24 15.8 -23 -37.2 15.8 -23.0086 -17.6552
2 24 42 -23 -37.2 42 -23.0086 -17.6552
2 24 42 -23.0086 -17.6552 15.8 -23.0086 -17.6552

4 16 42 -29 -17.6552 42 -23.0086 -17.6552 42 -23 -37.2 42 -43 -37.2
4 16 42 -29 0 42 -29 -17.6552 42 -43 -37.2 42 -43 -2.1
4 16 42 -23 -37.2 42 -23.0086 -17.6552 15.8 -23.0086 -17.6552 15.8 -23 -37.2
4 16 15.8 -23.0086 -17.6552 15.8 -19 -28 15.8 -19 -37.2 15.8 -23 -37.2
4 16 15.8 -19 -28 15.8 -23.0086 -17.6552 15.8 -29 0 15.8 0 -28

2 24 15.8 -28.8635 -2.0712 42 -28.8635 -2.0712
2 24 42 -28.8635 -2.0712 42 -43 -2.1
3 16 15.8 -28.8635 -2.0712 42 -28.8635 -2.0712 42 -43 -2.1

2 24 20.142 -19 -20.4993 19.8 -19 -20.4994
2 24 19.8 -19 -19 20.142 -19 -20.4993
