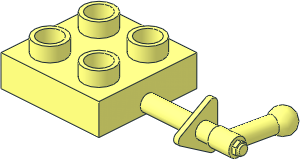

0 Duplo Plate  2 x  2 with Handle
0 Name: 44699.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 0 1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat

0 // box
1 16 0 24 0 40 0 0 0 -24 0 0 0 40 box5.dat
0 BFC INVERTNEXT
1 16 0 24 0 36 0 0 0 -20 0 0 0 36 box5.dat
4 16 40 24 -40 36 24 -36 36 24 36 40 24 40
4 16 -40 24 40 40 24 40 36 24 36 -36 24 36
4 16 -40 24 40 -36 24 36 -36 24 -36 -40 24 -40
4 16 -40 24 -40 -36 24 -36 36 24 -36 40 24 -40
1 16 0 4 0 1 0 0 0 -4 0 0 0 1 stud8.dat

0 // reinforcements
2 24 36 23 2 36 4 2
2 24 15.6023 4 2 15.6023 19 2
2 24 36 4 -2 36 23 -2
2 24 15.6023 4 -2 15.6023 19 -2
2 24 15.6023 4 -2 36 4 -2
2 24 36 4 2 15.6023 4 2
2 24 15.6023 19 2 36 23 2
2 24 15.6023 19 -2 36 23 -2
2 24 36 23 -2 36 23 2
2 24 16 19.078 0 15.6023 19 -2
2 24 16 19.078 0 15.6023 19 2
4 16 15.6023 19 2 15.6023 4 2 36 4 2 36 23 2
4 16 36 4 -2 15.6023 4 -2 15.6023 19 -2 36 23 -2
4 16 15.6023 19 -2 16 19.078 0 36 23 2 36 23 -2
3 16 15.6023 19 2 36 23 2 16 19.078 0
1 16 20 4 34 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 20 4 -34 1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 -20 4 34 -1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 -20 4 -34 -1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 34 4 20 0 0 -2 0 19 0 1.5 0 0 box4-1.dat
1 16 34 4 -20 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat
1 16 -34 4 20 0 0 2 0 19 0 1.5 0 0 box4-1.dat
1 16 -34 4 -20 0 0 2 0 19 0 -1.5 0 0 box4-1.dat

0 // arm
1 16 40 17 0 0 41 0 6.2 0 0 0 0 6.2 4-4cylo.dat
1 16 85 17 0 0 11 0 6.2 0 0 0 0 6.2 4-4cylo.dat
1 16 96 17 0 0 1 0 1 0 0 0 0 1 4-4ring6.dat
1 16 113 17 0 0 -17 0 7 0 0 0 0 7 4-4cylc.dat
1 16 118 17 0 0 -2 0 3.5 0 0 0 0 3.5 4-4cylc.dat
4 16 116 19.5 4.33 116 22 0 113 22 0 113 19.5 4.33
4 16 116 14.5 4.33 116 19.5 4.33 113 19.5 4.33 113 14.5 4.33
4 16 116 12 0 116 14.5 4.33 113 14.5 4.33 113 12 0
4 16 116 14.5 -4.33 116 12 0 113 12 0 113 14.5 -4.33
4 16 116 19.5 -4.33 116 14.5 -4.33 113 14.5 -4.33 113 19.5 -4.33
4 16 116 22 0 116 19.5 -4.33 113 19.5 -4.33 113 22 0
2 24 113 22 0 116 22 0
2 24 113 19.5 4.33 116 19.5 4.33
2 24 113 14.5 4.33 116 14.5 4.33
2 24 113 12 0 116 12 0
2 24 113 14.5 -4.33 116 14.5 -4.33
2 24 113 19.5 -4.33 116 19.5 -4.33
2 24 113 14.5 -4.33 113 19.5 -4.33
2 24 113 14.5 -4.33 113 12 0
2 24 113 12 0 113 14.5 4.33
2 24 113 14.5 4.33 113 19.5 4.33
2 24 113 19.5 4.33 113 22 0
2 24 113 22 0 113 19.5 -4.33
2 24 116 19.5 -4.33 116 22 0
2 24 116 22 0 116 19.5 4.33
2 24 116 19.5 4.33 116 14.5 4.33
2 24 116 14.5 4.33 116 12 0
2 24 116 12 0 116 14.5 -4.33
2 24 116 14.5 -4.33 116 19.5 -4.33
4 16 116 22 0 116 19.5 4.33 116 14.5 4.33 116 12 0
4 16 116 12 0 116 14.5 -4.33 116 19.5 -4.33 116 22 0

0 // slanted section
1 16 109 17 34 6.2 -5 0 0 0 6.2 -1 -34 0 4-4cyli.dat
2 24 110.8241 19.3727 6.5282 111.3765 17 7
2 24 110.6057 19.6789 6.4673 109.2715 21.384 5.3278
2 24 110.6057 19.6789 6.4673 110.8241 19.3727 6.5282
2 24 108.3494 21.9497 4.9497 106.9856 22.7282 3.7849
2 24 109.2715 21.384 5.3278 108.3494 21.9497 4.9497
2 24 106.9856 22.7282 3.7849 104.4528 23.2 3.0789
2 24 104.4528 23.2 3.0789 102.1276 22.7282 3.7849
2 24 101.1064 21.9497 4.9497 102.1276 22.7282 3.7849
2 24 100.2955 21.384 5.3278 101.1064 21.9497 4.9497
2 24 99.2965 19.6789 6.4673 100.2955 21.384 5.3278
2 24 99.2965 19.6789 6.4673 99.096 19.3727 6.5282
2 24 99.096 19.3727 6.5282 98.6824 17 7
2 24 99.096 14.6273 6.5282 98.6824 17 7
2 24 99.096 14.6273 6.5282 99.2965 14.3211 6.4673
2 24 99.2965 14.3211 6.4673 100.2955 12.616 5.3278
2 24 101.1064 12.0503 4.9497 100.2955 12.616 5.3278
2 24 102.1276 11.2718 3.7849 101.1064 12.0503 4.9497
2 24 104.4528 10.8 3.0789 102.1276 11.2718 3.7849
2 24 106.9856 11.2718 3.7849 104.4528 10.8 3.0789
2 24 108.3494 12.0503 4.9497 109.2715 12.616 5.3278
2 24 108.3494 12.0503 4.9497 106.9856 11.2718 3.7849
2 24 110.6057 14.3211 6.4673 110.8241 14.6273 6.5282
2 24 109.2715 12.616 5.3278 110.6057 14.3211 6.4673
2 24 110.8241 14.6273 6.5282 111.3765 17 7

0 // ball upper part outside
1 16 110 17 40 9.5 0 0 0 -9.5 0 0 0 9.5 4-8sphe.dat
2 24 113.4496 12.9199 32.3246 114.0466 13.8104 32.2416
2 24 114.6353 14.6273 32.4445 114.0466 13.8104 32.2416
2 24 115.0807 17 32.1887 114.6353 14.6273 32.4445
2 24 110 11.029 32.7837 111.2698 11.2718 32.9176
2 24 113.2652 12.616 32.4847 111.2698 11.2718 32.9176
2 24 113.2652 12.616 32.4847 113.4496 12.9199 32.3246
2 24 103.0086 15.4271 34.2414 103.1952 14.6273 34.4031
2 24 103.1952 14.6273 34.4031 104.3697 12.8267 34.0127
2 24 103.0086 15.4271 34.2414 102.68 17 34.1841
2 24 104.3697 12.8267 34.0127 104.5224 12.616 34.0707
2 24 104.5224 12.616 34.0707 105.8267 11.7249 33.6576
2 24 109.0835 10.8413 33.1229 110 11.029 32.7837
2 24 106.5415 11.2718 33.7993 108.8895 10.8 33.2487
2 24 109.0835 10.8413 33.1229 108.8895 10.8 33.2487
2 24 106.5415 11.2718 33.7993 105.8267 11.7249 33.6576

0 // ball lower part outside
1 16 110 17 40 1 0 0 0 1 0 0 0 1 s\44699s01.dat
1 16 110 17 40 -1 0 0 0 1 0 0 0 1 s\44699s01.dat
1 16 110 17 40 1 0 0 0 1 0 0 0 -1 s\44699s01.dat
1 16 110 17 40 -1 0 0 0 1 0 0 0 -1 s\44699s01.dat
2 24 104.3698 21.1734 34.0126 103.1952 19.3727 34.403
2 24 103.1952 19.3727 34.403 103.0086 18.5729 34.2413
2 24 103.0086 18.5729 34.2413 102.68 17 34.184
2 24 105.8266 22.2602 33.8133 104.5266 21.384 34.0995
2 24 104.3698 21.1734 34.0126 104.5266 21.384 34.0995
2 24 109.0834 23.1587 33.1229 110 22.971 32.7836
2 24 108.8929 23.2 33.2718 109.0834 23.1587 33.1229
2 24 106.5654 22.7282 33.9624 108.8929 23.2 33.2718
2 24 106.5654 22.7282 33.9624 105.8266 22.2602 33.8133
2 24 113.4495 21.0801 32.3246 114.0466 20.1895 32.2416
2 24 115.0807 17 32.1886 114.6353 19.3727 32.4444
2 24 114.0466 20.1895 32.2416 114.6353 19.3727 32.4444
2 24 113.4495 21.0801 32.3246 113.2652 21.384 32.4847
2 24 113.2652 21.384 32.4847 111.2698 22.7282 32.9175
2 24 111.2698 22.7282 32.9175 110 22.971 32.7836

0 // ball inside
0 BFC INVERTNEXT
1 16 110 14 40 4.3 0 0 0 10 0 0 0 4.3 4-4cylc.dat

0 // triangle
1 16 81 17 -16 0 4 0 0 0 4 -4 0 0 1-8cylo.dat
1 16 81 17 -16 0 4 0 0 0 -4 -4 0 0 1-8cylo.dat
1 16 81 3 8 0 4 0 0 0 -4 4 0 0 5-16cylo.dat
1 16 81 31 8 0 4 0 0 0 4 4 0 0 5-16cylo.dat
4 16 81 -.6956 6.4692 81 14.1716 -18.8284 85 14.1716 -18.8284 85 -.6956 6.4692
4 16 85 19.8284 -18.8284 81 19.8284 -18.8284 81 34.6956 6.4692 85 34.6956 6.4692
4 16 85 31 12 81 31 12 81 3 12 85 3 12
2 24 81 14.1716 -18.8284 81 -.6956 6.4692
2 24 85 -.6956 6.4692 85 14.1716 -18.8284
2 24 85 19.8284 -18.8284 85 34.6956 6.4692
2 24 81 34.6956 6.4692 81 19.8284 -18.8284
2 24 85 31 12 85 3 12
2 24 81 3 12 81 31 12
5 24 81 -.6956 6.4692 85 -.6956 6.4692 85 -1 8 85 14.1716 -18.8284
5 24 81 34.6956 6.4692 85 34.6956 6.4692 85 35 8 85 19.8284 -18.8284
5 24 85 14.1716 -18.8284 81 14.1716 -18.8284 85 15.4692 -19.6956 85 -.6956 6.4692
5 24 85 19.8284 -18.8284 81 19.8284 -18.8284 85 18.5308 -19.6956 85 34.6956 6.4692

1 16 81 17 -16 0 1 0 0 0 4 -4 0 0 1-8chrd.dat
1 16 81 17 -16 0 1 0 0 0 -4 -4 0 0 1-8chrd.dat
1 16 81 3 8 0 1 0 0 0 -4 4 0 0 5-16chrd.dat
1 16 81 31 8 0 1 0 0 0 4 4 0 0 5-16chrd.dat
4 16 81 17 -20 81 14.1716 -18.8284 81 -.6956 6.4692 81 3 12
4 16 81 34.6956 6.4692 81 19.8284 -18.8284 81 17 -20 81 31 12
3 16 81 31 12 81 17 -20 81 3 12

1 16 85 17 -16 0 -1 0 0 0 4 -4 0 0 1-8chrd.dat
1 16 85 17 -16 0 -1 0 0 0 -4 -4 0 0 1-8chrd.dat
1 16 85 3 8 0 -1 0 0 0 -4 4 0 0 5-16chrd.dat
1 16 85 31 8 0 -1 0 0 0 4 4 0 0 5-16chrd.dat
4 16 85 -.6956 6.4692 85 14.1716 -18.8284 85 17 -20 85 3 12
4 16 85 17 -20 85 19.8284 -18.8284 85 34.6956 6.4692 85 31 12
3 16 85 17 -20 85 31 12 85 3 12

Status:

Awaiting Admin Review (CCN)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/44699s01.dat (Needs More Votes)

Current Votes:

User	Vote
GeraldLasser	Certify
Blechtaler	Certify

Official parents and subparts

Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2025-07-29 10:52:39

Gerald Lasser [GeraldLasser]

made the following comment.

2025-08-04 07:41:03

For some reason this doesnt't look very child safe to me... Interesting part

Gerald Lasser [GeraldLasser]

posted a vote of Hold.

2025-08-04 07:47:29

I think it is better to use a 1-8 cyl instead of the 3-16 cyl at the end of the horizontal tip of the triangle

i.e.
1 16 81 17 -16 0 4 0 0 0 4 -4 0 0 1-8cylo.dat
4 16 85 19.8284 -18.8284 81 19.8284 -18.8284 81 34.6956 6.4692 85 34.6956 6.4692
2 24 85 19.8284 -18.8284 85 34.6956 6.4692
2 24 81 34.6956 6.4692 81 19.8284 -18.8284
1 16 81 17 -16 0 1 0 0 0 4 -4 0 0 1-8chrd.dat
1 16 85 17 -16 0 -1 0 0 0 4 -4 0 0 1-8chrd.dat

the 3-16 creates kind of a "bulge" when primitive substitution is done, the 1-8 stays better in the boundaries of the triangle

otherwise fine

Gerald Lasser [GeraldLasser]

made the following comment.

2025-08-04 07:49:42

at the transition from the sphere prim to the lower part, you should use supplementary condlines, the ones from the sphere don'T fit very well

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-08-04 08:51:02

Updated tip of triangle

Peter Blomberg [WUIt]

made the following comment.

2025-08-04 08:54:15

If you mean the upper boundary of the subfile, then those complementary cond lines are from the inlined 1-4sphe file and should be fine

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2025-08-04 16:37:26

Rene Rechthaler [Blechtaler]

posted a vote of Certify.

2025-08-04 16:40:32

Creative Commons Attribution License information
