Unofficial File parts/s/stickerback008x017a.dat
File Header:

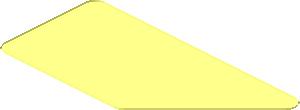

0 ~Sticker Back 0.8 x 1.7 Irregular - Flattened 11477b02
0 Name: s\stickerback008x017a.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-08-01 [MagFors] Reworked, original by Sirio
0 !HISTORY 2026-05-08 [Sirio] Reduced size exactly to description
Show contents
0 // Primitives
1 16 -15.2886 0 6.5 0 0 -1.5 0 -1 0 1.5 0 0 1-4chrd.dat
1 16 -15.2886 0 -6.5 0 0 -1.5 0 -1 0 -1.5 0 0 1-4chrd.dat
1 16 -15.2886 -.25 6.5 0 0 -1.5 0 .25 0 1.5 0 0 1-4cyli.dat
1 16 -15.2886 -.25 -6.5 0 0 -1.5 0 .25 0 -1.5 0 0 1-4cyli.dat
0 // Bottom face
4 16 16.6745 0 7.0741 -16.7886 0 6.5 -15.2886 0 8 15.2887 0 8
4 16 15.2887 0 8 15.8627 0 7.8859 16.3493 0 7.5607 16.6745 0 7.0741
4 16 16.3493 0 5.4393 16.6745 0 7.0741 16.7887 0 6.5 16.6745 0 5.926
4 16 3.3483 0 -7.5607 -16.7886 0 6.5 16.6745 0 7.0741 16.3493 0 5.4393
4 16 2.2877 0 -8 -15.2886 0 -8 -16.7886 0 -6.5 2.8617 0 -7.8859
4 16 2.8617 0 -7.8859 -16.7886 0 -6.5 -16.7886 0 6.5 3.3483 0 -7.5607
0 // Lateral face
4 16 16.7887 -.25 6.5 16.7887 0 6.5 16.6745 0 7.0741 16.6745 -.25 7.0741
4 16 16.3493 -.25 7.5607 16.6745 -.25 7.0741 16.6745 0 7.0741 16.3493 0 7.5607
4 16 16.7887 -.25 6.5 16.6745 -.25 5.926 16.6745 0 5.926 16.7887 0 6.5
4 16 16.3493 -.25 5.4393 16.3493 0 5.4393 16.6745 0 5.926 16.6745 -.25 5.926
4 16 16.3493 -.25 7.5607 16.3493 0 7.5607 15.8627 0 7.8859 15.8627 -.25 7.8859
4 16 15.2887 -.25 8 15.8627 -.25 7.8859 15.8627 0 7.8859 15.2887 0 8
4 16 15.2887 0 8 -15.2886 0 8 -15.2886 -.25 8 15.2887 -.25 8
4 16 3.3483 0 -7.5607 16.3493 0 5.4393 16.3493 -.25 5.4393 3.3483 -.25 -7.5607
4 16 3.3483 0 -7.5607 3.3483 -.25 -7.5607 2.8617 -.25 -7.8859 2.8617 0 -7.8859
4 16 2.2877 0 -8 2.8617 0 -7.8859 2.8617 -.25 -7.8859 2.2877 -.25 -8
4 16 2.2877 0 -8 2.2877 -.25 -8 -15.2886 -.25 -8 -15.2886 0 -8
4 16 -16.7886 0 -6.5 -16.7886 -.25 -6.5 -16.7886 -.25 6.5 -16.7886 0 6.5
0 // Conditional lines
5 24 16.3493 0 5.4393 16.3493 -.25 5.4393 15.91 0 5 16.6745 0 5.926
5 24 16.6745 0 5.926 16.6745 -.25 5.926 16.3493 0 5.4393 16.7887 0 6.5
5 24 16.7887 0 6.5 16.7887 -.25 6.5 16.6745 0 5.926 16.6745 0 7.0741
5 24 16.6745 0 7.0741 16.6745 -.25 7.0741 16.7887 0 6.5 16.3493 0 7.5607
5 24 16.3493 0 7.5607 16.3493 -.25 7.5607 16.6745 0 7.0741 15.8627 0 7.8859
5 24 15.8627 0 7.8859 15.8627 -.25 7.8859 16.3493 0 7.5607 15.2887 0 8
5 24 15.2887 0 8 15.2887 -.25 8 15.8627 0 7.8859 -15.2886 0 8
5 24 3.3483 0 -7.5607 3.3483 -.25 -7.5607 2.8617 0 -7.8859 16.3493 0 5.4393
5 24 2.8617 0 -7.8859 2.8617 -.25 -7.8859 2.2877 0 -8 3.3483 0 -7.5607
5 24 2.2877 0 -8 2.2877 -.25 -8 -15.2886 0 -8 2.8617 0 -7.8859
Status:
Errors Found (CHN)
Current Votes:
| User | Vote |
|---|---|
| MagFors | Certify |
| Sirio | Hold |
Official parents and subparts
Part Events:
2025-08-01 10:39:07
2026-05-31 07:11:22
Header Edits
history:
0 !HISTORY 2025-08-01 [MagFors] Reworked, original by Sirio
to
0 !HISTORY 2025-08-01 [MagFors] Reworked, original by Sirio
0 !HISTORY 2026-05-08 [Sirio] Reduced size exactly to description
2026-05-31 07:12:22
"parts/s/stickerback008x019a.dat" to "parts/s/stickerback008x017a.dat"
2026-05-31 07:13:32
Header Edits
description:
~Sticker Back 0.8 x 1.9 Irregular - Flattened 11477b02
to
~Sticker Back 0.8 x 1.7 Irregular - Flattened 11477b02
2026-06-20 12:56:59
Name has been changed. Please lift your vote.
2026-06-20 12:57:32
2026-06-20 12:57:40
Creative Commons Attribution License information
This part is copyright ©
Magnus Forsberg
Licensed under
CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Massimo Maso
The dimensions are 0.8 x 1.7 LDU.
This sticker is shorter than stickerback008x019.
The correct name is: stickerback008x017a.
