Unofficial File parts/s/6618s02.dat
File Header:

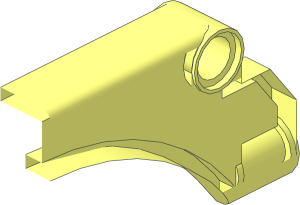

0 ~Technic Panel 9 x 1 x 3 Mudguard Arched with Straight Top without Patternable Surfaces - Half
0 Name: s\6618s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-08-01 [GeraldLasser] Bow Based on s\2459s01.dat by Philo
