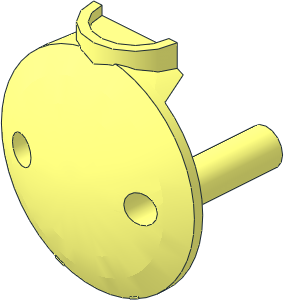

0 ~Duplo Cannon with Firing Button and Locking Ring - Back Piece
0 Name: 16702.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\16702s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\16702s01.dat
0 // top
1 16 0 -106.5 -9.5 4 0 0 0 1 0 0 0 -4 2-4ring4.dat
1 16 0 -106.5 -9.5 20 0 0 0 10.0059 0 0 0 -20 2-4cylo.dat
0 BFC INVERTNEXT
1 16 0 -106.5 -9.5 16 0 0 0 4 0 0 0 -16 2-4cylo.dat
1 16 0 -102.5 -9.5 16 0 0 0 1 0 0 0 -16 2-4chrd.dat
2 24 -16 -102.5 -9.5 16 -102.5 -9.5
2 24 22.855 -95.0849 -9.5 -22.855 -95.0849 -9.5
4 16 16 -102.5 -9.5 20 -96.4941 -9.5 -20 -96.4941 -9.5 -16 -102.5 -9.5
4 16 -22.855 -95.0849 -9.5 -20 -96.4941 -9.5 20 -96.4941 -9.5 22.855 -95.0849 -9.5
0 // back
1 16 0 -55.5 -27.5 46.2 0 0 0 0 46.2 0 4 0 48\4-4cyli.dat
1 16 0 -55.5 -27.5 46.2 0 0 0 0 46.2 0 1 0 48\4-4edge.dat
0 // bottom
5 24 0 -9.3 -23.5 0 -9.5617 -16.0234 -5.9937 -9.9661 -15.7531 5.9937 -9.9661 -15.7531
0 // internal
4 16 -28.1266 -92.1551 -23.5 -22.855 -95.0849 -9.5 22.855 -95.0849 -9.5 28.1266 -92.1551 -23.5
4 16 -20.45 -63.5 -23.5 -28.1266 -92.1551 -23.5 28.1266 -92.1551 -23.5 20.45 -63.5 -23.5
4 16 -20.45 -63.5 -23.5 20.45 -63.5 -23.5 20.45 -55.5 -23.5 -20.45 -55.5 -23.5
4 16 -20.45 -47.5 -23.5 -20.45 -55.5 -23.5 20.45 -55.5 -23.5 20.45 -47.5 -23.5
4 16 -20.45 -47.5 -23.5 20.45 -47.5 -23.5 17.6807 -12.8158 -23.5 -17.6807 -12.8158 -23.5
4 16 17.6807 -12.8158 -23.5 15.8 -12.1783 -23.5 -15.8 -12.1783 -23.5 -17.6807 -12.8158 -23.5
4 16 -15.8 -12.1783 -23.5 15.8 -12.1783 -23.5 15.8 -12.5271 -14.0416 -15.8 -12.5271 -14.0416
4 16 15.8 -12.5271 -14.0416 11.8791 -11.1644 -14.9523 -11.8791 -11.1644 -14.9523 -15.8 -12.5271 -14.0416
4 16 -11.8791 -11.1644 -14.9523 11.8791 -11.1644 -14.9523 5.9937 -9.9661 -15.7531 -5.9937 -9.9661 -15.7531
3 16 5.9937 -9.9661 -15.7531 0 -9.5617 -16.0234 -5.9937 -9.9661 -15.7531
2 24 15.8 -12.5271 -14.0416 -15.8 -12.5271 -14.0416
2 24 15.8 -12.1783 -23.5 -15.8 -12.1783 -23.5
2 24 28.1266 -92.1551 -23.5 -28.1266 -92.1551 -23.5
