Unofficial File parts/s/16703s01.dat
File Header:

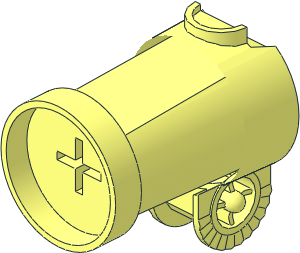

0 ~Duplo Cannon with Firing Button and Locking Ring - Front Piece without Patternable Surface
0 Name: s\16703s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
