File Detail parts/s/27055k04s01.dat

Unofficial File parts/s/27055k04s01.dat

File Header:

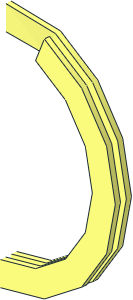

0 ~Keychain - Key Ring - Half
0 Name: s\27055k04s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 2.2 0 0 6.25 6.25 0 0 0 -1 0 7-16ring4.dat
1 16 0 0 .8 0 0 31.25 31.25 0 0 0 1.4 0 7-16cylo.dat
0 BFC INVERTNEXT
1 16 0 0 .8 0 0 25 25 0 0 0 1.4 0 7-16cylo.dat
1 16 0 0 .8 0 0 6.25 6.25 0 0 0 1 0 7-16ring4.dat
1 16 0 0 -.8 0 0 6.25 6.25 0 0 0 -1 0 7-16ring4.dat
1 16 0 0 -.8 0 0 31.25 31.25 0 0 0 -1.4 0 7-16cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -.8 0 0 25 25 0 0 0 -1.4 0 7-16cylo.dat
1 16 0 0 -2.2 0 0 6.25 6.25 0 0 0 1 0 7-16ring4.dat
1 16 10.7634 -25.9847 -1.5 0 0 -1.1959 0 1 2.8872 .7 0 0 rect.dat
4 16 0 -31.25 .7 0 -31.25 -.7 11.9594 -28.8719 .8 11.9594 -28.8719 2.2
4 16 9.5675 -23.0975 2.2 9.5675 -23.0975 .8 0 -25 -.7 0 -25 .7
3 16 11.9594 -28.8719 .8 0 -31.25 -.7 9.5675 -23.0975 .8
3 16 9.5675 -23.0975 .8 0 -31.25 -.7 0 -25 -.7
3 16 11.9594 -28.8719 2.2 9.5675 -23.0975 2.2 0 -31.25 .7
3 16 0 -31.25 .7 9.5675 -23.0975 2.2 0 -25 .7
2 24 0 -31.25 -.7 11.9594 -28.8719 .8
2 24 0 -25 -.7 9.5675 -23.0975 .8
2 24 0 -25 .7 9.5675 -23.0975 2.2
2 24 0 -31.25 .7 11.9594 -28.8719 2.2

5 24 9.5675 -23.0975 2.2 0 -31.25 .7 11.9594 -28.8719 2.2 0 -25 .7
5 24 11.9594 -28.8719 2.2 9.5675 -23.0975 2.2 0 -31.25 .7 17.6775 -17.6775 2.2
5 24 0 -31.25 -.7 9.5675 -23.0975 .8 11.9594 -28.8719 .8 0 -25 -.7
5 24 9.5675 -23.0975 .8 11.9594 -28.8719 .8 0 -31.25 -.7 17.6775 -17.6775 .8
5 24 11.9594 -28.8719 .8 11.9594 -28.8719 2.2 0 -31.25 .7 22.0969 -22.0969 .8
5 24 9.5675 -23.0975 .8 9.5675 -23.0975 2.2 0 -25 .7 17.6775 -17.6775 .8

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Rene Rechthaler [Blechtaler]

initially submitted the part.

2025-08-08 13:23:51

Magnus Forsberg [MagFors]

made the following comment.

2025-08-08 15:49:45

Why not something like this?
1 16 0 0 -.7 0 0 31.25 -31.25 0 0 0 1.4 3.9 1-16cylo.dat
1 16 0 0 -.7 0 0 31.25 -31.25 0 0 0 1.4 3.9 1-16chrd.dat
1 16 0 0 .7 0 0 31.25 -31.25 0 0 0 -1.4 3.9 1-16chrd.dat

0 BFC INVERTNEXT
1 16 0 0 -.7 0 0 25 -25 0 0 0 1.4 3.9 1-16cylo.dat
1 16 0 0 -.7 0 0 25 -25 0 0 0 1.4 3.9 1-16tndis.dat
1 16 0 0 .7 0 0 25 -25 0 0 0 -1.4 3.9 1-16tndis.dat

Rene Rechthaler [Blechtaler]

made the following comment.

2025-08-08 16:00:37

hm, would 1-16 tang be better? the angled surfaces arent plain...

Rene Rechthaler [Blechtaler]

made the following comment.

2025-08-08 16:02:19

big enough to use hi-res prims?

Magnus Forsberg [MagFors]

made the following comment.

2025-08-08 17:24:19

Slap some condlines on it. Does is really need to be that perfect?
