File Detail parts/s/31062s01.dat

Unofficial File parts/s/31062s01.dat

File Header:

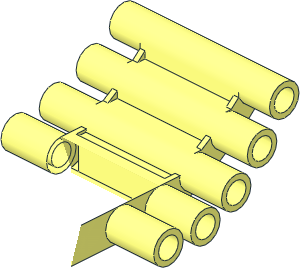

0 ~Duplo Log Bridge - Half
0 Name: s\31062s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\31062s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\31062s02.dat

0 // logs
1 16 79 12 0 0 -1 0 4 0 0 0 0 4 4-4ring2.dat
1 16 79 12 0 0 -39 0 12 0 0 0 0 12 4-4cylo.dat
1 16 74 2 60 0 -148 0 0 0 -12 -12 0 0 1-4cylo.dat
1 16 69.5 -15 85.5 0 -139 0 0 0 -12 -12 0 0 1-4cylo.dat
1 16 65 -36 108 0 -130 0 -12 0 0 0 0 -12 1-4cylo.dat
1 16 65 -36 108 0 -130 0 -12 0 0 0 0 12 3-16cylo.dat
0 BFC INVERTNEXT
1 16 40 12 0 0 39 0 8 0 0 0 0 8 4-4cylo.dat

0 // top
4 16 -36 2 40 36 2 40 36 2 48 -36 2 48
4 16 36 0 40 36 2 40 -36 2 40 -36 0 40
4 16 -36 0 40 -40 0 32 40 0 32 36 0 40
4 16 40 -10 60 36 -10 65.968 -36 -10 65.968 -40 -10 60
4 16 36 -10 65.968 36 -10 73.5 -36 -10 73.5 -36 -10 65.968
4 16 -36 -10 73.5 36 -10 73.5 36 -15 73.5 -36 -15 73.5
4 16 -36 -27 96 -36 -27 89.9615 36 -27 89.9615 36 -27 96
4 16 -36 -32.4138 96 -36 -27 96 36 -27 96 36 -32.4138 96
4 16 -36 -27 89.9615 -40 -27 85.5 40 -27 85.5 36 -27 89.9615
4 16 -40 -36 96 -36 -32.4138 96 36 -32.4138 96 40 -36 96
2 24 36 2 48 -36 2 48
2 24 36 2 40 -36 2 40
2 24 36 0 40 -36 0 40
2 24 36 -10 73.5 -36 -10 73.5
2 24 36 -27 96 -36 -27 96

0 // side
4 16 40 24 40 40 0 32 40 0 -32 40 24 -40
4 16 40 24 40 40 24 -40 36 24 -36 36 24 36
2 24 40 0 -32 40 0 32
2 24 40 24 40 40 24 -40

0 // bottom
0 BFC INVERTNEXT
1 16 34 0 58 0 -68 0 0 0 -6 -6 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 34 -17 83.5 0 -68 0 0 0 -6 -6 0 0 1-4cylo.dat
1 16 34 0 46 0 -68 0 0 0 6 6 0 0 1-4cylo.dat
1 16 34 -12 71.5 0 -68 0 0 0 6 6 0 0 1-4cylo.dat
1 16 34 -29 94 0 -68 0 0 0 6 6 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 34 -36 108 0 -68 0 0 0 -8 -8 0 0 1-4cylo.dat
4 16 -36 24 36 -34 24 40 34 24 40 36 24 36
4 16 34 24 40 -34 24 40 -34 6 40 34 6 40
4 16 34 6 46 34 6 40 -34 6 40 -34 6 46
4 16 -34 -6 71.5 34 -6 71.5 34 -6 58 -34 -6 58
4 16 34 -23 83.5 -34 -23 83.5 -34 -23 94 34 -23 94
4 16 34 -17 77.5 34 -12 77.5 -34 -12 77.5 -34 -17 77.5
4 16 34 -29 100 -34 -29 100 -34 -36 100 34 -36 100
3 16 12 -44 110 -12 -44 110 0 -33 110
3 16 0 -37 114 -14 -40.5924 114 14 -40.5924 114
4 16 -14 -40.5924 114 -28 -40.5924 119.0868 28 -40.5924 119.0868 14 -40.5924 114
4 16 12 -44 108 -12 -44 108 -12 -44 110 12 -44 110
2 24 -34 24 40 34 24 40
2 24 34 6 40 -34 6 40
2 24 12 -44 110 -12 -44 110
2 24 -14 -40.5924 114 14 -40.5924 114
2 24 -28 -40.5924 119.0868 28 -40.5924 119.0868

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/31062s02.dat (Needs More Votes)
No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2025-08-11 12:55:36
