Official File p/duphandle1.dat
File Header:

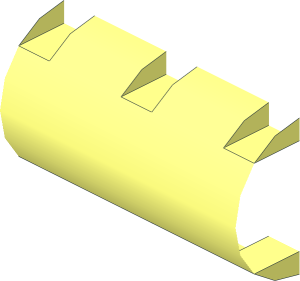

0 Duplo Utensil Handle Type 1 Half
0 Name: duphandle1.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Primitive UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
Show contents
0 // first groove
1 16 8.5 0 0 0 3 0 0 0 -6.25 -6.25 0 0 1-8cyli.dat
1 16 8.5 0 0 0 -1 0 -6.25 0 0 0 0 -6.25 1-8chrd.dat
1 16 8.5 0 0 0 -1 0 -6.25 0 0 0 0 -6.25 1-8edge.dat
1 16 11.5 0 0 0 1 0 -6.25 0 0 0 0 -6.25 1-8chrd.dat
1 16 11.5 0 0 0 -1 0 -6.25 0 0 0 0 -6.25 1-8edge.dat
1 16 10 -4.4194 -2.2097 -1.5 0 0 0 1 0 0 0 -2.2097 rect3.dat
3 16 11.5 -6.25 0 11.5 -4.4194 0 11.5 -4.4194 -4.4194
3 16 8.5 -4.4194 -4.4194 8.5 -4.4194 0 8.5 -6.25 0
0 // first spacing
1 16 8.5 0 0 0 -7 0 -6.25 0 0 0 0 -6.25 2-4cyli.dat
0 // middle groove
1 16 -1.5 0 0 0 3 0 0 0 -6.25 -6.25 0 0 1-8cyli.dat
1 16 -1.5 0 0 0 -1 0 -6.25 0 0 0 0 -6.25 1-8chrd.dat
1 16 -1.5 0 0 0 -1 0 -6.25 0 0 0 0 -6.25 1-8edge.dat
1 16 1.5 0 0 0 1 0 -6.25 0 0 0 0 -6.25 1-8chrd.dat
1 16 1.5 0 0 0 -1 0 -6.25 0 0 0 0 -6.25 1-8edge.dat
1 16 0 -4.4194 -2.2097 -1.5 0 0 0 1 0 0 0 -2.2097 rect3.dat
3 16 1.5 -6.25 0 1.5 -4.4194 0 1.5 -4.4194 -4.4194
3 16 -1.5 -4.4194 -4.4194 -1.5 -4.4194 0 -1.5 -6.25 0
0 // second spacing
1 16 -8.5 0 0 0 7 0 -6.25 0 0 0 0 -6.25 2-4cyli.dat
0 // third groove
1 16 -8.5 0 0 0 -3 0 0 0 -6.25 -6.25 0 0 1-8cyli.dat
1 16 -8.5 0 0 0 1 0 -6.25 0 0 0 0 -6.25 1-8chrd.dat
1 16 -8.5 0 0 0 1 0 -6.25 0 0 0 0 -6.25 1-8edge.dat
1 16 -11.5 0 0 0 -1 0 -6.25 0 0 0 0 -6.25 1-8chrd.dat
1 16 -11.5 0 0 0 1 0 -6.25 0 0 0 0 -6.25 1-8edge.dat
1 16 -10 -4.4194 -2.2097 -1.5 0 0 0 1 0 0 0 -2.2097 rect3.dat
3 16 -8.5 -6.25 0 -8.5 -4.4194 0 -8.5 -4.4194 -4.4194
3 16 -11.5 -4.4194 -4.4194 -11.5 -4.4194 0 -11.5 -6.25 0
1 16 8.5 0 0 0 3 0 0 0 6.25 -6.25 0 0 1-8cyli.dat
1 16 8.5 0 0 0 -1 0 6.25 0 0 0 0 -6.25 1-8chrd.dat
1 16 8.5 0 0 0 -1 0 6.25 0 0 0 0 -6.25 1-8edge.dat
1 16 11.5 0 0 0 1 0 6.25 0 0 0 0 -6.25 1-8chrd.dat
1 16 11.5 0 0 0 -1 0 6.25 0 0 0 0 -6.25 1-8edge.dat
1 16 10 4.4194 -2.2097 -1.5 0 0 0 -1 0 0 0 -2.2097 rect3.dat
3 16 11.5 4.4194 0 11.5 6.25 0 11.5 4.4194 -4.4194
3 16 8.5 4.4194 0 8.5 4.4194 -4.4194 8.5 6.25 0
1 16 -1.5 0 0 0 3 0 0 0 6.25 -6.25 0 0 1-8cyli.dat
1 16 -1.5 0 0 0 -1 0 6.25 0 0 0 0 -6.25 1-8chrd.dat
1 16 -1.5 0 0 0 -1 0 6.25 0 0 0 0 -6.25 1-8edge.dat
1 16 1.5 0 0 0 1 0 6.25 0 0 0 0 -6.25 1-8chrd.dat
1 16 1.5 0 0 0 -1 0 6.25 0 0 0 0 -6.25 1-8edge.dat
1 16 0 4.4194 -2.2097 -1.5 0 0 0 -1 0 0 0 -2.2097 rect3.dat
3 16 1.5 4.4194 0 1.5 6.25 0 1.5 4.4194 -4.4194
3 16 -1.5 4.4194 0 -1.5 4.4194 -4.4194 -1.5 6.25 0
1 16 -8.5 0 0 0 -3 0 0 0 6.25 -6.25 0 0 1-8cyli.dat
1 16 -8.5 0 0 0 1 0 6.25 0 0 0 0 -6.25 1-8chrd.dat
1 16 -8.5 0 0 0 1 0 6.25 0 0 0 0 -6.25 1-8edge.dat
1 16 -11.5 0 0 0 -1 0 6.25 0 0 0 0 -6.25 1-8chrd.dat
1 16 -11.5 0 0 0 1 0 6.25 0 0 0 0 -6.25 1-8edge.dat
1 16 -10 4.4194 -2.2097 -1.5 0 0 0 -1 0 0 0 -2.2097 rect3.dat
3 16 -8.5 4.4194 0 -8.5 6.25 0 -8.5 4.4194 -4.4194
3 16 -11.5 4.4194 0 -11.5 4.4194 -4.4194 -11.5 6.25 0
Status:
Official
