Unofficial File parts/s/27372s01.dat
File Header:

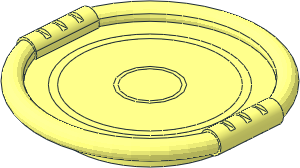

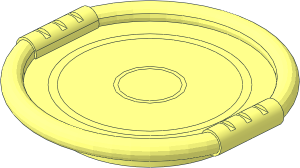

0 ~Duplo Serving Tray without Top Surface
0 Name: s\27372s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // horizontal surfaces
1 16 0 -19.664 0 55.38 0 0 0 1 0 0 0 55.38 48\4-4edge.dat
1 16 0 -15.836 0 55.38 0 0 0 -1 0 0 0 55.38 48\4-4disc.dat
1 16 0 -15.836 0 55.38 0 0 0 1 0 0 0 55.38 48\4-4edge.dat
0 // bottom cylinders
0 BFC INVERTNEXT
1 16 0 0 0 40.3 0 0 0 -15.836 0 0 0 40.3 48\4-4cylo.dat
1 16 0 0 0 4.03 0 0 0 -1 0 0 0 4.03 48\4-4ring10.dat
1 16 0 0 0 44.33 0 0 0 -15.836 0 0 0 44.33 48\4-4cylo.dat
1 16 0 -15.836 0 -1 0 0 0 -3.959 0 0 0 1 stud8.dat
0 // quarters
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\27372s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\27372s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\27372s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\27372s02.dat
0 // handles
1 16 56.8 -17.75 0 0 0 1 0 1 0 1 0 0 duphandle1.dat
1 16 56.8 -17.75 0 0 0 -1 0 1 0 1 0 0 duphandle1.dat
1 16 -56.8 -17.75 0 0 0 -1 0 1 0 1 0 0 duphandle1.dat
1 16 -56.8 -17.75 0 0 0 1 0 1 0 1 0 0 duphandle1.dat
2 24 50.9306 -19.664 -19.3 50.9306 -19.664 19.3
2 24 -50.9306 -19.664 -19.3 -50.9306 -19.664 19.3
2 24 50.9306 -15.836 19.3 50.9306 -15.836 -19.3
2 24 -50.9306 -15.836 19.3 -50.9306 -15.836 -19.3
Status:
Certified (ACCN)
Current Votes:
| User | Vote |
|---|---|
| OrionP | Admin Review |
| GeraldLasser | Certify |
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
2025-08-14 14:58:15
Fixed handle overlap
Rotated handle prim for better viewing. Changed from quarter to half.
Interesting that the distance between the handles is a pretty odd value, but this is the same as in the BI
2025-08-29 12:15:55
2025-08-30 00:02:26
