Unofficial File parts/s/4886s03.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

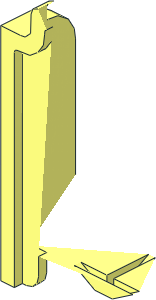

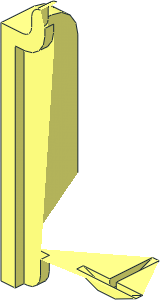

0 ~Duplo Bed 3 x 4 x 2.333 Bunk - Quarter
0 Name: s\4886s03.dat
0 Author: Takeshi Takahashi [RainbowDolphin]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show file code:
1 16 -49 -99 -80 9 0 0 0 0 9 0 4 0 1-4cylo.dat
4 16 -40 -99 -80 -40 -99 -76 -40 -102 -76 -40 -102 -80
1 16 -49 -99 -80 9 0 0 0 0 9 0 1 0 1-4chrd.dat
1 16 -49 -99 -76 9 0 0 0 0 9 0 1 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -50 -100 -80 4 0 0 0 0 4 0 7.5 0 1-4cylo.dat
1 16 -50 -100 -80 4 0 0 0 0 4 0 1 0 1-4ndis.dat
1 16 -50 -100 -72.5 4 0 0 0 0 4 0 -1 0 1-4ndis.dat
1 16 -60 -84 -65 0 8 0 -12 0 0 0 0 12 1-4cylo.dat
1 16 -60 -84 -65 0 1 0 -12 0 0 0 0 12 1-4chrd.dat
1 16 -52 -84 -65 0 -1 0 -12 0 0 0 0 12 1-4chrd.dat
1 16 -52 -6 -76 6 0 0 0 0 6 0 4 0 1-4cylo.dat
1 16 -52 -6 -76 6 0 0 0 0 6 0 1 0 1-4chrd.dat
1 16 -52 -6 -72 6 0 0 0 0 6 0 -1 0 1-4chrd.dat
1 16 -42 -104 -80 -4 0 0 0 0 -4 0 7.5 0 1-4cylo.dat
1 16 -42 -104 -80 -4 0 0 0 0 -4 0 1 0 1-4chrd.dat
1 16 -42 -104 -72.5 -4 0 0 0 0 -4 0 -1 0 1-4chrd.dat
0 BFC INVERTNEXT
1 16 -60 -86 -69.5 0 4 0 -4 0 0 0 0 -4 1-4cylo.dat
1 16 -60 -86 -69.5 0 1 0 -4 0 0 0 0 -4 1-4ndis.dat
1 16 -56 -86 -69.5 0 1 0 -4 0 0 0 0 -4 1-4chrd.dat
0 BFC INVERTNEXT
1 16 -60 -84 -66 0 4 0 -6 0 0 0 0 6 1-4cylo.dat
1 16 -60 -84 -66 0 1 0 -6 0 0 0 0 6 1-4ndis.dat
1 16 -56 -84 -66 0 1 0 -6 0 0 0 0 6 1-4chrd.dat
4 16 -46 -12 -76 -46 -12 -72 -33.5 -12 -69 -33.5 -12 -72
4 16 -46 -12 -72 -46 -12 -76 -46 -6 -76 -46 -6 -72
4 16 -60 -84 -60 -60 -26.25 -60 -56 -26.25 -60 -56 -84 -60
4 16 -53.5 0 -76 -53.5 -90 -76 -53.5 -90 -80 -53.5 0 -80
4 16 -56 0 -73.5 -60 0 -73.5 -60 -86 -73.5 -56 -86 -73.5
4 16 -60 -90 -69.5 -60 -90 -66 -56 -90 -66 -56 -90 -69.5
4 16 -60 -32.5 -53 -60 -84 -53 -52 -84 -53 -52 -32.5 -53
4 16 -52 -96 -65 -60 -96 -65 -60 -96 -80 -52 -96 -72.5
4 16 -60 -96 -80 -50 -96 -80 -50 -96 -72.5 -52 -96 -72.5
4 16 -46 -104 -80 -46 -104 -72.5 -46 -100 -72.5 -46 -100 -80
4 16 -18.5 -8 -69 -21.5 -8 -69 -21.5 -8 -59 -18.5 -8 -59
4 16 -18.5 -12 -49.5 -18.5 -8 -59 -21.5 -8 -59 -21.5 -12 -49.5
4 16 -18.5 -8 -69 -16 -8 -72 -24 -8 -72 -21.5 -8 -69
4 16 -6.5 -12 -72 -16 -8 -72 -16 -8 -69 -6.5 -12 -69
4 16 -33.5 -12 -72 -33.5 -12 -69 -24 -8 -69 -24 -8 -72
4 16 -16 -8 -72 -6.5 -12 -72 -33.5 -12 -72 -24 -8 -72
3 16 -16 -8 -72 -18.5 -8 -69 -16 -8 -69
4 16 -18.5 -8 -69 -18.5 -12 -69 -6.5 -12 -69 -16 -8 -69
3 16 -18.5 -12 -49.5 -6.5 -12 -69 -18.5 -12 -69
3 16 -33.5 -12 -69 -21.5 -12 -49.5 -21.5 -12 -69
4 16 -21.5 -8 -69 -24 -8 -69 -33.5 -12 -69 -21.5 -12 -69
3 16 -24 -8 -72 -24 -8 -69 -21.5 -8 -69
4 16 -21.5 -8 -69 -21.5 -12 -69 -21.5 -12 -49.5 -21.5 -8 -59
4 16 -18.5 -12 -49.5 -18.5 -12 -69 -18.5 -8 -69 -18.5 -8 -59
4 16 -53.5 -90 -80 -53.5 -90 -76 -49 -90 -76 -49 -90 -80
4 16 -46 -96 -80 -50 -96 -80 -53.5 -90 -80 -49 -90 -80
3 16 -60 -90 -73.5 -60 -86 -73.5 -60 -96 -80
3 16 -60 -90 -69.5 -60 -90 -73.5 -60 -96 -80
4 16 -60 -84 -53 -60 -32.5 -53 -60 -26.25 -60 -60 -84 -60
4 16 -60 -96 -80 -60 -96 -65 -60 -90 -66 -60 -90 -69.5
4 16 -46 -100 -80 -40 -102 -80 -42 -108 -80 -46 -104 -80
4 16 -52 0 -76 -46 -6 -76 -46 -12 -76 -53.5 0 -76
4 16 -60 -86 -73.5 -60 0 -73.5 -60 0 -80 -60 -96 -80
4 16 -56 -86 -73.5 -56 -84 -60 -56 -26.25 -60 -56 0 -73.5
3 16 -60 -90 -60 -60 -96 -65 -60 -84 -53
3 16 -60 -84 -60 -60 -90 -60 -60 -84 -53
3 16 -60 -96 -65 -60 -90 -60 -60 -90 -66
4 16 -56 -84 -60 -56 -86 -73.5 -56 -90 -69.5 -56 -90 -66
4 16 -52 -96 -72.5 -52 -17 -72.5 -52 -84 -53 -52 -96 -65
3 16 -52 -96 -72.5 -50 -96 -72.5 -52 -17 -72.5
3 16 -52 -17 -72.5 -52 -32.5 -53 -52 -84 -53
4 16 -53.5 -90 -80 -60 -96 -80 -60 0 -80 -53.5 0 -80
4 16 -46 -12 -72 -46 -6 -72 -52 0 -72 -52 -12 -72
3 16 -53.5 0 -80 -60 0 -80 -53.5 0 -76
4 16 -60 0 -80 -60 0 -73.5 -56 0 -73.5 -53.5 0 -76
4 16 -56 0 -73.5 -52 0 -72 -52 0 -76 -53.5 0 -76
4 16 -52 -12 -72 -21.5 -12 -49.5 -33.5 -12 -69 -46 -12 -72
3 16 -53.5 -90 -76 -53.5 0 -76 -49 -90 -76
4 16 -46 -12 -76 -40 -90 -76 -49 -90 -76 -53.5 0 -76
3 16 -60 -96 -80 -53.5 -90 -80 -50 -96 -80
4 16 -46 -100 -80 -46 -96 -80 -40 -99 -80 -40 -102 -80
3 16 -40 -99 -80 -46 -96 -80 -49 -90 -80
3 16 -50 -96 -72.5 -46 -96 -72.5 -52 -17 -72.5
3 16 -46 -12 -76 -33.5 -12 -72 -6.5 -12 -72
2 24 -18.5 -8 -69 -16 -8 -69
2 24 -60 -96 -80 -50 -96 -80
2 24 -50 -96 -72.5 -52 -96 -72.5
2 24 -53.5 -90 -80 -49 -90 -80
2 24 -33.5 -12 -69 -33.5 -12 -72
2 24 -18.5 -8 -69 -18.5 -8 -59
2 24 -52 -96 -72.5 -52 -17 -72.5
2 24 -60 -96 -65 -60 -96 -80
2 24 -56 -84 -60 -56 -26.25 -60
2 24 -21.5 -8 -69 -21.5 -8 -59
2 24 -60 -32.5 -53 -60 -84 -53
2 24 -49 -90 -76 -53.5 -90 -76
2 24 -52 -32.5 -53 -52 -84 -53
2 24 -18.5 -12 -69 -18.5 -8 -69
2 24 -53.5 0 -76 -52 0 -76
2 24 -21.5 -12 -69 -33.5 -12 -69
2 24 -24 -8 -69 -21.5 -8 -69
2 24 -33.5 -12 -72 -6.5 -12 -72
2 24 -46 -6 -76 -46 -12 -76
2 24 -6.5 -12 -69 -18.5 -12 -69
2 24 -16 -8 -72 -6.5 -12 -72
2 24 -6.5 -12 -69 -16 -8 -69
2 24 -21.5 -12 -49.5 -21.5 -12 -69
2 24 -60 0 -73.5 -60 0 -80
2 24 -60 -96 -80 -60 0 -80
2 24 -40 -99 -80 -40 -102 -80
2 24 -52 -96 -65 -52 -96 -72.5
2 24 -18.5 -8 -59 -18.5 -12 -49.5
2 24 -21.5 -8 -59 -21.5 -12 -49.5
2 24 -53.5 0 -76 -53.5 0 -80
2 24 -21.5 -8 -59 -18.5 -8 -59
2 24 -21.5 -12 -69 -21.5 -8 -69
2 24 -24 -8 -72 -24 -8 -69
2 24 -60 -90 -69.5 -60 -90 -66
2 24 -53.5 0 -80 -53.5 -90 -80
2 24 -33.5 -12 -72 -24 -8 -72
2 24 -46 -12 -72 -46 -6 -72
2 24 -60 -26.25 -60 -60 -84 -60
2 24 -24 -8 -72 -16 -8 -72
2 24 -60 0 -80 -53.5 0 -80
2 24 -53.5 -90 -76 -53.5 0 -76
2 24 -46 -12 -76 -46 -12 -72
2 24 -16 -8 -69 -16 -8 -72
2 24 -56 -90 -66 -56 -90 -69.5
2 24 -46 -104 -80 -46 -100 -80
2 24 -52 -12 -72 -46 -12 -72
2 24 -56 0 -73.5 -60 0 -73.5
2 24 -60 0 -73.5 -60 -86 -73.5
2 24 -18.5 -12 -69 -18.5 -12 -49.5
2 24 -33.5 -12 -69 -24 -8 -69
2 24 -53.5 -90 -76 -53.5 -90 -80
2 24 -56 -86 -73.5 -56 0 -73.5
2 24 -52 0 -72 -52 -12 -72
2 24 -6.5 -12 -72 -6.5 -12 -69
2 24 -46 -104 -72.5 -46 -100 -72.5
2 24 -40 -99 -76 -40 -102 -76
2 24 -18.5 -12 -49.5 -21.5 -12 -49.5
2 24 -60 -32.5 -53 -52 -32.5 -53
2 24 -40 -102 -80 -40 -102 -76
2 24 -60 -26.25 -60 -56 -26.25 -60Status
Needs 1 More Vote (CN)
Current Votes:
Peter Blomberg [WUIt]
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Part Dependencies
Official parents and subparts
Part Events
Takeshi Takahashi [RainbowDolphin]
initially submitted the part.
2025-08-14 16:26:02
Rene Rechthaler [Blechtaler]
made the following comment.
2025-08-31 09:12:16
should the top/bottom curves use prims?
Takeshi Takahashi [RainbowDolphin]
submitted a new version of the part (all votes reset).
2025-09-15 12:11:34
Rene Rechthaler [Blechtaler]
made the following comment.
2025-09-15 18:40:10
would this fit? (needs some inverted and with ndis/chrd):
1 16 -51.9 -6 -76 6 0 0 0 0 6 0 4 0 1-4cylo.dat
1 16 -48 -98 -80 8 0 0 0 0 8 0 4 0 1-4cylo.dat
1 16 -50 -100 -80 4 0 0 0 0 4 0 7.5 0 1-4cylo.dat
1 16 -42 -104 -80 -4 0 0 0 0 -4 0 7.5 0 1-4cylo.dat
1 16 -38 -101 -80 -2 0 0 0 0 -2 0 4 0 1-4cylo.dat
1 16 -60 -84 -65 0 8 0 -12 0 0 0 0 12 1-4cylo.dat
1 16 -60 -84 -66 0 8 0 -6 0 0 0 0 6 1-4cylo.dat
1 16 -60 -86 -69 0 8 0 -4 0 0 0 0 -4 1-4cylo.dat
also some rects on vertical faces could save a bit (between the cylos)
1 16 -51.9 -6 -76 6 0 0 0 0 6 0 4 0 1-4cylo.dat
1 16 -48 -98 -80 8 0 0 0 0 8 0 4 0 1-4cylo.dat
1 16 -50 -100 -80 4 0 0 0 0 4 0 7.5 0 1-4cylo.dat
1 16 -42 -104 -80 -4 0 0 0 0 -4 0 7.5 0 1-4cylo.dat
1 16 -38 -101 -80 -2 0 0 0 0 -2 0 4 0 1-4cylo.dat
1 16 -60 -84 -65 0 8 0 -12 0 0 0 0 12 1-4cylo.dat
1 16 -60 -84 -66 0 8 0 -6 0 0 0 0 6 1-4cylo.dat
1 16 -60 -86 -69 0 8 0 -4 0 0 0 0 -4 1-4cylo.dat
also some rects on vertical faces could save a bit (between the cylos)
Peter Blomberg [WUIt]
posted a vote of Hold
2025-09-18 15:14:07
* These conds should be edges since the physical shape is sharp instead of rounded.
5 24 21.5 -7.75 -59.402 18.359 -7.75 -59.402 21.5 -12 -49.474 18.359 -7.75 -68.75
5 24 16.001 -7.75 -68.75 16.002 -7.75 -71.75 18.359 -7.75 -68.75 6.524 -12 -68.75
5 24 24.028 -7.75 -71.75 24.01 -7.75 -68.75 21.5 -7.75 -68.75 33.506 -12 -71.75
5 24 33.444 -12 -68.75 33.506 -12 -71.75 24.01 -7.75 -68.75 45.9 -12 -72
5 24 6.524 -12 -68.75 6.526 -12 -71.75 -6.526 -12 -71.75 16.002 -7.75 -71.75
5 24 21.5 -12 -49.474 18.421 -12 -49.474 21.5 -12 49.474 18.359 -7.75 -59.402
* These corners should be sharp instead of rounded.
5 24 -53.012 -89.637 -80 -53.012 -89.637 -76 -52.137 -90 -76 -53.5 -88.762 -80
5 24 -39.228 -102.603 -76 -39.228 -102.603 -80 -39.375 -101.249 -80 -38.375 -103.25 -76
* The end inside curvature should be:
1 16 -49 -99 -80 9 0 0 0 0 9 0 4 0 1-4cylo.dat
4 16 -40 -99 -80 -40 -99 -76 -40 -102 -76 -40 -102 -80
4 16 -40 -102 -76 40 -102 -76 40 -102 -80 -40 -102 -80
2 24 -40 -102 -80 -40 -102 -76
1 16 -49 -99 -80 9 0 0 0 0 9 0 4 0 1-4chrd.dat
The spacing between corners fits exactly a regular 2-stud brick (80 LDU).
* As Rene suggested, the corresponding outside is very well described by:
0 BFC INVERTNEXT
1 5 -50 -100 -80 4 0 0 0 0 4 0 7.5 0 1-4cylo.dat
* As Rene suggested, this would be smoother:
1 9 -60 -84 -65 0 8 0 -12 0 0 0 0 12 1-4cylo.dat
* This helps get rid of the slanted cond near the bottom:
1 5 -52 -6 -76 6 0 0 0 0 6 0 4 0 1-4cylo.dat
5 24 21.5 -7.75 -59.402 18.359 -7.75 -59.402 21.5 -12 -49.474 18.359 -7.75 -68.75
5 24 16.001 -7.75 -68.75 16.002 -7.75 -71.75 18.359 -7.75 -68.75 6.524 -12 -68.75
5 24 24.028 -7.75 -71.75 24.01 -7.75 -68.75 21.5 -7.75 -68.75 33.506 -12 -71.75
5 24 33.444 -12 -68.75 33.506 -12 -71.75 24.01 -7.75 -68.75 45.9 -12 -72
5 24 6.524 -12 -68.75 6.526 -12 -71.75 -6.526 -12 -71.75 16.002 -7.75 -71.75
5 24 21.5 -12 -49.474 18.421 -12 -49.474 21.5 -12 49.474 18.359 -7.75 -59.402
* These corners should be sharp instead of rounded.
5 24 -53.012 -89.637 -80 -53.012 -89.637 -76 -52.137 -90 -76 -53.5 -88.762 -80
5 24 -39.228 -102.603 -76 -39.228 -102.603 -80 -39.375 -101.249 -80 -38.375 -103.25 -76
* The end inside curvature should be:
1 16 -49 -99 -80 9 0 0 0 0 9 0 4 0 1-4cylo.dat
4 16 -40 -99 -80 -40 -99 -76 -40 -102 -76 -40 -102 -80
4 16 -40 -102 -76 40 -102 -76 40 -102 -80 -40 -102 -80
2 24 -40 -102 -80 -40 -102 -76
1 16 -49 -99 -80 9 0 0 0 0 9 0 4 0 1-4chrd.dat
The spacing between corners fits exactly a regular 2-stud brick (80 LDU).
* As Rene suggested, the corresponding outside is very well described by:
0 BFC INVERTNEXT
1 5 -50 -100 -80 4 0 0 0 0 4 0 7.5 0 1-4cylo.dat
* As Rene suggested, this would be smoother:
1 9 -60 -84 -65 0 8 0 -12 0 0 0 0 12 1-4cylo.dat
* This helps get rid of the slanted cond near the bottom:
1 5 -52 -6 -76 6 0 0 0 0 6 0 4 0 1-4cylo.dat
Takeshi Takahashi [RainbowDolphin]
submitted a new version of the part (all votes reset).
2025-09-22 14:53:45
Refined corners by circular prims as suggested
Peter Blomberg [WUIt]
made the following comment.
2025-09-22 16:02:07
* can be merged to quads:
3 16 -60 0 -80 -53.5 0 -80 -60 -96 -80
3 16 -60 -96 -80 -53.5 0 -80 -53.5 -90 -80
3 16 -40 -90 -76 -53.5 0 -76 -46 -12 -76
3 16 -49 -90 -76 -53.5 0 -76 -40 -90 -76
3 16 -53.5 -90 -76 -53.5 0 -80 -53.5 0 -76
3 16 -53.5 0 -80 -53.5 -90 -76 -53.5 -90 -80
3 16 -52 -96 -65 -52 -96 -72.5 -52 -17 -72.5
3 16 -52 -84 -53 -52 -96 -65 -52 -17 -72.5
3 16 -46 -12 -76 -53.5 0 -76 -46 -6 -76
3 16 -46 -6 -76 -53.5 0 -76 -52 0 -76
3 16 -60 0 -80 -53.5 0 -80 -60 -96 -80
3 16 -60 -96 -80 -53.5 0 -80 -53.5 -90 -80
3 16 -40 -90 -76 -53.5 0 -76 -46 -12 -76
3 16 -49 -90 -76 -53.5 0 -76 -40 -90 -76
3 16 -53.5 -90 -76 -53.5 0 -80 -53.5 0 -76
3 16 -53.5 0 -80 -53.5 -90 -76 -53.5 -90 -80
3 16 -52 -96 -65 -52 -96 -72.5 -52 -17 -72.5
3 16 -52 -84 -53 -52 -96 -65 -52 -17 -72.5
3 16 -46 -12 -76 -53.5 0 -76 -46 -6 -76
3 16 -46 -6 -76 -53.5 0 -76 -52 0 -76
Rene Rechthaler [Blechtaler]
made the following comment.
2025-09-22 16:43:42
and some quads could be rect2p (there is nothing against unrotated rects aligned to the main planes)
should the two inner side curves also be made of prims? (already included in the suggestions above...)
should the two inner side curves also be made of prims? (already included in the suggestions above...)
Takeshi Takahashi [RainbowDolphin]
submitted a new version of the part (all votes reset).
2025-09-23 14:41:55
Takeshi Takahashi [RainbowDolphin]
submitted a new version of the part (all votes reset).
2025-09-23 15:10:48
Rene Rechthaler [Blechtaler]
made the following comment.
2025-09-23 16:10:18
why the floating edgeline on the far end? could use at least 8 flat rect3 prims...
Peter Blomberg [WUIt]
posted a vote of Certify
2025-09-23 22:35:36
The last edge could be scaled in Z-direction with -1 so that it is in the same quadrant as the rest.
Takeshi Takahashi [RainbowDolphin]
submitted a new version of the part (all votes reset).
2025-09-24 17:08:50
Oops, fixed!!
Peter Blomberg [WUIt]
posted a vote of Certify
2025-09-24 17:39:10
