File Detail parts/s/24806s01.dat

Unofficial File parts/s/24806s01.dat

File Header:

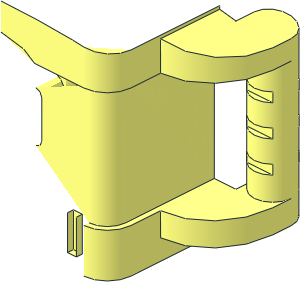

0 ~Duplo Camera - Half
0 Name: s\24806s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // bottom
1 16 20 -12 14 1.5 0 0 0 11 0 0 0 -2 box4-1.dat
1 16 20 -12 -13 1.5 0 0 0 11 0 0 0 1 box4-1.dat
0 BFC INVERTNEXT
1 16 28 0 -10 4 0 0 0 -12 0 0 0 -4 1-4cylo.dat
1 16 28 -12 -10 4 0 0 0 -1 0 0 0 -4 1-4chrd.dat
1 16 28 0 -10 4 0 0 0 -1 0 0 0 -4 1-4ring1.dat
4 16 32 0 -10 32 0 16 36 0 20 36 0 -10

0 // front
1 16 0 -36 -18 0 0 20 -20 0 0 0 1 0 1-16edge.dat
4 16 11.3619 -52 -18 28 -52 -18 0 -64.6 -18 0 -56 -18
2 24 7.654 -54.478 -18 11.3619 -52 -18
2 24 11.3619 -52 -18 28 -52 -18

0 // handle grip
1 16 47.75 -33 26.25 0 0 1 1 0 0 0 1 0 duphandle1.dat
1 16 47.75 -33 26.25 0 0 -1 1 0 0 0 1 0 duphandle1.dat
1 16 47.75 -14 26.25 6.25 0 0 0 -7.5 0 0 0 6.25 4-4cyli.dat
1 16 47.75 -52 26.25 6.25 0 0 0 7.5 0 0 0 6.25 4-4cyli.dat

0 // handle top
1 16 47.75 -52 26.25 6.25 0 0 0 -1 0 0 0 -6.25 2-4ndis.dat
1 16 36 -52 20 18 0 0 0 -1 0 0 0 -20 1-4chrde.dat
1 16 47.75 -58.2 26.25 6.25 0 0 0 6.2 0 0 0 6.25 2-4cyli.dat
1 16 47.75 -58.2 26.25 6.25 0 0 0 -1.14585 0 0 0 6.25 2-4cyls.dat
1 16 47.75 -59.34585 26.25 6.25 0 0 1.14585 1 0 0 0 6.25 2-4chrde.dat
1 16 36 -61.5 20 18 0 0 3.3 1 0 0 0 -20 1-4chrde.dat
1 16 36 -52 20 18 0 0 0 -6.2 0 0 0 -20 1-4cyli.dat
1 16 36 -58.2 20 18 0 0 0 -3.3 0 0 0 -20 1-4cyls.dat
1 16 47.75 -52 26.25 6.25 0 0 0 1 0 0 0 -6.25 2-4edge.dat
4 16 54 -58.2 20 54 -52 20 54 -52 26.25 54 -58.2 26.25
3 16 54 -52 20 36 -52 0 47.75 -52 20
3 16 47.75 -52 20 36 -52 0 41.5 -52 20
3 16 41.5 -52 20 36 -52 0 34.2 -52 20
4 16 54 -58.2 20 54 -58.2 26.25 41.5 -60.4917 26.25 41.5 -60.4917 20
3 16 36 -61.5 0 54 -58.2 20 41.5 -60.4917 20
3 16 36 -61.5 0 41.5 -60.4917 20 36 -61.5 20
4 16 41.5 -60.4917 26.25 41.5 -52 26.25 41.5 -52 20 41.5 -60.4917 20
4 16 36 -61.5 20 41.5 -60.4917 20 41.5 -52 20 34.2 -52 20
2 24 41.5 -60.4917 20 41.5 -52 20
2 24 34.2 -52 20 41.5 -52 20
2 24 41.5 -60.4917 20 41.5 -60.4917 26.25
2 24 54 -52 20 54 -52 26.25
2 24 54 -58.2 20 54 -58.2 26.25
2 24 41.5 -52 20 41.5 -52 26.25
2 24 36 -61.5 20 41.5 -60.4917 20

0 // handle bottom
1 16 47.75 -6.5 26.25 6.25 0 0 0 -7.5 0 0 0 6.25 2-4cyli.dat
1 16 47.75 -6.5 26.25 6.25 0 0 0 -1 0 0 0 6.25 2-4chrde.dat
1 16 36 -6.5 20 18 0 0 0 -7.5 0 0 0 -20 1-4cylo.dat
1 16 47.75 -14 26.25 6.25 0 0 0 1 0 0 0 -6.25 2-4edge.dat
1 16 47.75 -14 26.25 6.25 0 0 0 1 0 0 0 -6.25 2-4ndis.dat
1 16 36 -14 20 18 0 0 0 1 0 0 0 -20 1-4chrd.dat
1 16 36 -6.5 20 18 0 0 0 -1 0 0 0 -20 1-4chrd.dat
4 16 54 -14 20 54 -6.5 20 54 -6.5 26.25 54 -14 26.25
4 16 41.5 -14 26.25 41.5 -6.5 26.25 41.5 -6.5 20 41.5 -14 20
4 16 54 -6.5 26.25 54 -6.5 20 41.5 -6.5 20 41.5 -6.5 26.25
3 16 36 -6.5 0 36 -6.5 20 41.5 -6.5 20
3 16 36 -6.5 0 41.5 -6.5 20 54 -6.5 20
4 16 41.5 -14 20 41.5 -6.5 20 36 -6.5 20 34.2 -14 20
3 16 36 -14 0 54 -14 20 47.75 -14 20
3 16 36 -14 0 47.75 -14 20 41.5 -14 20
3 16 36 -14 0 41.5 -14 20 34.2 -14 20
2 24 54 -6.5 20 54 -6.5 26.25
2 24 41.5 -6.5 20 41.5 -6.5 26.25
2 24 41.5 -6.5 20 36 -6.5 20
2 24 41.5 -14 20 41.5 -14 26.25
2 24 41.5 -14 20 34.2 -14 20
2 24 41.5 -14 20 41.5 -6.5 20
2 24 54 -14 20 54 -14 26.25

0 // outside
4 16 12 -30 -8 12 -30 -16.2 12 -42 -16.2 12 -42 -8
4 16 12 -42 -16.2 12 -30 -16.2 28 -14 -16.2 28 -52 -16.2
4 16 11.3619 -52 -18 11.3619 -52 -16.2 28 -52 -16.2 28 -52 -18
1 16 10 -42 -8 6 0 0 0 0 -6 0 -4 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 10 -42 -8 2 0 0 0 0 -2 0 -8.2 0 8\1-4cylo.dat
1 16 10 -42 -8 6 0 0 0 0 -6 0 -1 0 1-4chrd.dat
1 16 10 -42 -8 2 0 0 0 0 -2 0 -1 0 8\1-4ndis.dat
3 16 16 -42 -8 12 -44 -8 10 -48 -8
3 16 10 -48 -8 12 -44 -8 10 -44 -8
3 16 12 -44 -8 16 -42 -8 12 -42 -8
1 16 10 -42 -16.2 2 0 0 0 0 -2 0 1 0 8\1-4ndis.dat
3 16 10 -44 -16.2 12 -44 -16.2 28 -52 -16.2
3 16 28 -52 -16.2 12 -44 -16.2 12 -42 -16.2
0 BFC INVERTNEXT
1 16 10 -30 -8 2 0 0 0 0 2 0 -8.2 0 8\1-4cylo.dat
1 16 10 -30 -8 2 0 0 0 0 2 0 -1 0 8\1-4ndis.dat
1 16 10 -30 -16.2 2 0 0 0 0 2 0 1 0 8\1-4ndis.dat
3 16 28 -14 -16.2 12 -30 -16.2 12 -28 -16.2
3 16 28 -14 -16.2 12 -28 -16.2 10 -28 -16.2
1 16 10 -30 -8 6 0 0 0 0 6 0 -4 0 1-4cylo.dat
1 16 10 -30 -8 6 0 0 0 0 6 0 -1 0 1-4chrd.dat
3 16 12 -28 -8 16 -30 -8 10 -24 -8
3 16 12 -28 -8 10 -24 -8 10 -28 -8
3 16 16 -30 -8 12 -28 -8 12 -30 -8
4 16 16 -42 -12 16 -30 -12 16 -30 -8 16 -42 -8
4 16 16 -30 -8 12 -30 -8 12 -42 -8 16 -42 -8
1 16 10 -42 -12 6 0 0 0 0 -6 0 -1 0 1-4ndis.dat
1 16 10 -30 -12 6 0 0 0 0 6 0 -1 0 1-4ndis.dat
3 16 16 -30 -12 32 -16 -12 16 -24 -12
3 16 16 -24 -12 32 -16 -12 10 -24 -12
1 16 28 -63.3 -10 0 0 8 0 1 .8 -8 0 0 1-4chrde.dat
1 16 28 -62.5 -10 8 0 0 0 -.8 0 0 0 -8 1-4cyls.dat
4 16 12.3 -64.4 -18 0 -64.6 -18 28 -52 -18 28 -62.5 -18
4 16 12.3 -64.4 -18 28 -62.5 -18 28 -63.3 -18 24.3 -63.7 -18
1 16 28 0 -10 8 0 0 0 -14 0 0 0 -8 1-4cylo.dat
1 16 28 -14 -10 6.2 0 0 0 -38 0 0 0 -6.2 1-4cylo.dat
1 16 28 -14 -10 8 0 0 0 1 0 0 0 -8 1-4chrd.dat
4 16 28 -14 -16.2 28 -14 -18 36 -14 -10 34.2 -14 -10
1 16 28 -52 -10 8 0 0 0 -1 0 0 0 -8 1-4chrde.dat
4 16 36 -52 -10 28 -52 -18 28 -52 -16.2 34.2 -52 -10
1 16 28 -52 -10 8 0 0 0 -10.5 0 0 0 -8 1-4cyli.dat
4 16 36 0 -10 36 0 20 36 -6.5 20 36 -6.5 0
4 16 36 -14 -10 36 0 -10 36 -6.5 0 36 -14 0
4 16 36 -6.5 20 36 0 20 32 -16 20 34.2 -14 20
4 16 36 -52 -10 36 -52 0 36 -61.5 0 36 -62.5 -10
4 16 36 -62.5 20 36 -62.5 -10 36 -61.5 0 36 -61.5 20
4 16 36 -52 0 36 -52 -10 34.2 -52 -10 34.2 -52 20
4 16 34.2 -52 20 34.2 -52 -10 34.2 -14 -10 34.2 -14 20
4 16 34.2 -14 -10 36 -14 -10 36 -14 0 34.2 -14 20
2 24 11.3619 -52 -18 11.3619 -52 -16.2
2 24 12 -42 -16.2 12 -30 -16.2
2 24 16 -30 -12 16 -42 -12
2 24 16 -30 -8 16 -42 -8
2 24 12 -30 -8 12 -42 -8
2 24 24.3 -63.7 -18 28 -63.3 -18
2 24 0 -64.6 -18 12.3 -64.4 -18
2 24 12.3 -64.4 -18 24.3 -63.7 -18
2 24 36 0 20 36 0 -10
2 24 34.2 -14 20 34.2 -52 20
2 24 34.2 -14 -10 34.2 -14 20
2 24 34.2 -52 -10 34.2 -52 20
2 24 36 -14 -10 36 -14 0
2 24 36 -14 0 36 -6.5 0
2 24 36 -6.5 0 36 -6.5 20
2 24 36 -52 -10 36 -52 0
2 24 36 -62.5 -10 36 -62.5 20
2 24 36 -61.5 0 36 -61.5 20
2 24 36 -61.5 0 36 -52 0
2 24 36 -62.5 20 36 -61.5 20
2 24 36 -6.5 20 36 0 20

Status:

Needs 2 More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2025-08-15 14:33:52

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-08-15 18:13:27

Rotated handle prim for better viewing. Changed from quarter to half.

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-10-09 06:22:19

Rounded vertices.
