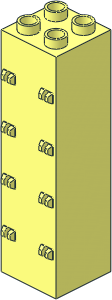

0 Duplo Support 2 x 2 x 6 with Drawer Slots and 8 Hinges
0 Name: 87322.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Place door with 1 2 -27.5 144 -42.5 1 0 0 0 1 0 0 0 1 87321.dat
0 !HELP Place door with 1 14 27.5 144 -42.5 -1 0 0 0 -1 0 0 0 1 87321.dat
0 !HELP Place drawer with 1 16 0 208 0 -1 0 0 0 1 0 0 0 -1 4891.dat
0 !HELP Place drawer with 1 16 0 153 0 -1 0 0 0 1 0 0 0 -1 4891.dat
0 !HELP Place drawer with 1 16 0 98 0 -1 0 0 0 1 0 0 0 -1 4891.dat
0 BFC CERTIFY CCW
