Unofficial File parts/s/6613s01.dat
File Header:

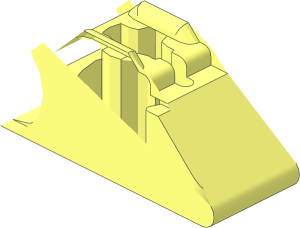

0 ~Panel 3 x 3 Triangular - Half
0 Name: s\6613s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6613s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\6613s02.dat
1 16 0 0 -6.3603 9 0 0 0 0 9 0 12.7206 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 9.5 -1.5 0 0 -.5 0 0 0 -1.5 6.3639 0 0 box2-7.dat
1 16 20 -10 0 0 0 1 0 20 0 -1 0 0 axlehol4.dat
1 16 34.5 4.9571 0 0 -1 0 0 0 -5.0429 .4442 0 0 rect2p.dat
3 16 34.5 10 .4442 34.5 10 -.4442 31.25 10 0
4 16 34.5 -.0858 -.4442 34.5 -.0858 .4442 41 6.4142 3.3639 41 6.4142 -3.3639
1 16 41 7.7071 0 0 1 0 0 0 1.2929 3.3639 0 0 rect2p.dat
4 16 41 9 -3.3603 41 9 3.3603 42.5 9 9 42.5 9 -9
1 16 42.5 6.5 9 0 0 2.5 2.5 0 0 0 -18 0 3-8cylo.dat
3 16 31.25 -7 0 32.5355 -7 -6.3639 32.5355 -7 6.3639
4 16 32.5355 -7 -6.3639 44.26775 4.73225 -9 44.26775 4.73225 9 32.5355 -7 6.3639
2 24 32.5355 -7 6.3639 32.5355 -7 -6.3639
3 16 14 -10 0 12.60371 -10 5.75 12.60371 -10 -5.75
4 16 8.71465 -6.11089 6.3639 8.71465 -6.11089 -6.3639 12.60371 -10 -5.75 12.60371 -10 5.75
2 24 12.60371 -10 5.75 12.60371 -10 -5.75
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has uncertified subfiles
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 4 16 32.5355 -7 -6.3639 44.26775 4.73225 -9 44.26775 4.73225 9 32.5355 -7 6.3639
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 3 16 14 -10 0 12.60371 -10 5.75 12.60371 -10 -5.75
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 4 16 8.71465 -6.11089 6.3639 8.71465 -6.11089 -6.3639 12.60371 -10 -5.75 12.60371 -10 5.75
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 2 24 12.60371 -10 5.75 12.60371 -10 -5.75
Current Votes:
| User | Vote |
|---|---|
| Philo | Certify |
Official parents and subparts
Part Events:
2025-08-20 13:41:52
2025-08-25 21:16:08
corrected vertex mismatch in s02
There are still some mismatches here,
1 16 41 7.7071 0 0 1 0 0 0 1.2929 3.3603 0 0 rect2p.dat
1 16 9.5 -1.5 0 0 -.5 0 0 0 -1.5 6.3603 0 0 box2-7.dat
Like previously, width is 3.6303 instead of ndis value of 6.3639.
1 16 41 7.7071 0 0 1 0 0 0 1.2929 3.3603 0 0 rect2p.dat
1 16 9.5 -1.5 0 0 -.5 0 0 0 -1.5 6.3603 0 0 box2-7.dat
Like previously, width is 3.6303 instead of ndis value of 6.3639.
Looks Like I saved too late, corrected
Line 1 16 0 0 -6.3603 9 0 0 0 0 9 0 12.7206 0 1-4cylo.dat accidentally commended out...
uncommented cylo
2026-01-16 08:09:07
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
description:
~Panel 3 x 3 Triangular - Halfto
~Technic Panel 3 x 3 Triangular - Half
