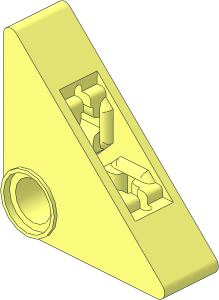

0 Technic Panel  3 x  3 Triangular
0 Name: 6613.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2026-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Panel

0 !HISTORY 2025-08-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-08-01 [GeraldLasser] File preparation for LDraw Parts Tracker
0 !HISTORY 2026-08-31 [OrionP] Official Update 2026-08

Show file code:

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6613s01.dat
1 16 0 0 0 0 -1 0 -1 0 0 0 0 1 s\6613s01.dat

1 16 0 0 0 1 0 0 0 0 1 0 -1 0 connhole.dat
1 16 0 0 -9 -9 0 0 0 0 -9 0 -1 0 3-4cylo.dat
1 16 0 0 -10 -9 0 0 0 0 9 0 -1 0 1-4edge.dat
1 16 0 0 -10 -9 0 0 0 0 9 0 1 0 1-4cyli.dat
1 16 0 0 -9 -9 0 0 0 0 9 0 2.6397 0 1-4cyli.dat

1 16 0 0 -6.3603 -9 0 0 0 0 9 0 12.7206 0 1-4cyli.dat
1 16 0 0 6.3603 -9 0 0 0 0 9 0 2.6397 0 1-4cyli.dat
1 16 0 0 9 -9 0 0 0 0 9 0 1 0 1-4cyli.dat
1 16 0 0 10 -9 0 0 0 0 9 0 -1 0 1-4edge.dat
1 16 0 0 10 -9 0 0 0 0 -9 0 -1 0 3-4cylo.dat

0 // Side Walls
3 16 44.26775 4.73225 9 9 -9 9 -4.73225 -44.26775 9
4 16 7 -32.5355 6.3639 10 -29 6.3639 29 -10 6.3639 32.5355 -7 6.3639
4 16 12.375 -24.2213 6.3639 24.2213 -12.375 6.3639 29 -10 6.3639 10 -29 6.3639
4 16 14.97867 -12.37499 6.3639 24.2213 -12.375 6.3639 12.375 -24.2213 6.3639 12.37499 -14.97867 6.3639
4 16 7 -32.5355 6.3639 32.5355 -7 6.3639 44.26775 4.73225 9 -4.73225 -44.26775 9
2 24 44.26775 4.73225 9 -4.73225 -44.26775 9
2 24 7 -32.5355 6.3639 32.5355 -7 6.3639

4 16 7 -32.5355 -6.3639 32.5355 -7 -6.3639 29 -10 -6.3639 10 -29 -6.3639
4 16 29 -10 -6.3639 24.2213 -12.375 -6.3639 12.375 -24.2213 -6.3639 10 -29 -6.3639
4 16 24.2213 -12.375 -6.3639 14.97867 -12.37499 -6.3639 12.37499 -14.97867 -6.3639 12.375 -24.2213 -6.3639
4 16 32.5355 -7 -6.3639 7 -32.5355 -6.3639 -4.73225 -44.26775 -9 44.26775 4.73225 -9
3 16 9 -9 -9 44.26775 4.73225 -9 -4.73225 -44.26775 -9
2 24 32.5355 -7 -6.3639 7 -32.5355 -6.3639
2 24 -4.73225 -44.26775 -9 44.26775 4.73225 -9

0 BFC INVERTNEXT
1 16 13.67683 -13.67683 0 1.30185 -6.26405 0 1.30185 6.26405 0 0 0 6.3639 box3u4a.dat
