Unofficial File parts/s/84195s02.dat
File Header:

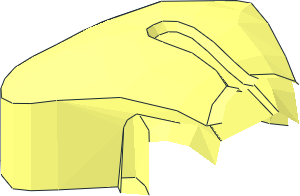

0 ~Duplo Flower with 5 Rounded Petals and 1 Top Stud - Petal
0 Name: s\84195s02.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // petal halves
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\84195s03.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\84195s03.dat
0 // middle
4 16 -25 6.2 5.3 -25 6.2 -5.3 -31.5 6.2 -6 -31.5 6.2 6
4 16 -25 6.2 5.3 -19.7 7.6 4.9 -19.7 7.6 -4.9 -25 6.2 -5.3
4 16 -19.7 7.6 4.9 -14.4 10.7 5.5 -14.4 10.7 -5.5 -19.7 7.6 -4.9
4 16 -35.7 7.1 3.9 -31.5 6.2 6 -31.5 6.2 -6 -35.7 7.1 -3.9
3 16 -36.9 7.4 0 -35.7 7.1 3.9 -35.7 7.1 -3.9
4 16 -19.4 3.2 .9 -24.2 1.9 1.4 -24.2 1.9 -1.4 -19.4 3.2 -.9
4 16 -24.2 1.9 -1.4 -24.2 1.9 1.4 -28.5 1.7 2.3 -28.5 1.7 -2.3
4 16 -28.5 1.7 -2.3 -28.5 1.7 2.3 -31.8 2 2.4 -31.8 2 -2.4
4 16 -31.8 2 -2.4 -31.8 2 2.4 -32.9 2.1 1.6 -32.9 2.1 -1.6
3 16 -33.3 2.2 0 -32.9 2.1 -1.6 -32.9 2.1 1.6
4 16 -19.4 3.2 .9 -19.4 3.2 -.9 -16.5 4.4 -1.3 -16.5 4.4 1.3
4 16 -16.5 4.4 1.3 -16.5 4.4 -1.3 -14.3 3.8 -1.2 -14.3 3.8 1.2
2 24 -49.5 8 0 -49.5 24 0
5 24 -34.5 .9 0 -33.3 2.2 0 -34.2 .8 -1.7 -34.2 .8 1.7
5 24 -19.4 3.2 -.9 -19.4 3.2 .9 -16.5 4.4 -1.3 -24.2 1.9 1.4
5 24 -38.3 6.5 0 -45.7 10.4 0 -46.1 10.6 2.9 -46.1 10.6 -2.9
5 24 -49.5 8 0 -42.4 3.7 0 -46.6 6.1 -3.6 -46.6 6.1 3.6
5 24 -31.5 6.2 -6 -31.5 6.2 6 -25 6.2 5.3 -35.7 7.1 -3.9
5 24 -32.9 2.1 -1.6 -32.9 2.1 1.6 -31.8 2 -2.4 -33.3 2.2 0
5 24 -35.7 7.1 3.9 -35.7 7.1 -3.9 -31.5 6.2 6 -36.9 7.4 0
5 24 -28.5 1.7 2.3 -28.5 1.7 -2.3 -24.2 1.9 -1.4 -31.8 2 2.4
5 24 -36.9 7.4 0 -38.3 6.5 0 -36.9 6.2 4.4 -36.9 6.2 -4.4
5 24 -24.2 1.9 1.4 -24.2 1.9 -1.4 -19.4 3.2 -.9 -28.5 1.7 2.3
5 24 -16.5 4.4 -1.3 -16.5 4.4 1.3 -14.3 3.8 -1.2 -19.4 3.2 .9
5 24 -25 6.2 5.3 -25 6.2 -5.3 -31.5 6.2 -6 -19.7 7.6 4.9
5 24 -42.4 3.7 0 -34.5 .9 0 -34.2 .8 1.7 -34.2 .8 -1.7
5 24 -45.7 10.4 0 -45.9 24 0 -46.1 10.6 2.9 -46.1 10.6 -2.9
5 24 -19.7 7.6 4.9 -19.7 7.6 -4.9 -25 6.2 -5.3 -14.4 10.7 5.5
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Name/description too close/similar to 6510?
2025-08-30 22:01:03
Header Edits
description:
~Duplo Flower with 5 Leaves and 1 Top Stud - Petal Half
to
~Duplo Flower with 5 Rounded Petals and 1 Top Stud - Petal Half
Updated name to include "Rounded Petals" instead of "Leaves"
Rounded vertexes, rearranged content of subfiles.
2025-10-06 20:28:18
Why is this file needed? I think you can use the petal halves 5 time in s01 instead.
2025-10-07 10:01:47
The sunken portion in the middle of the petal is here. Otherwise, it would have to be added both to s01 and to the main part. Doable, but less rounding decimals/microgaps this way.
Creative Commons Attribution License information
This part is copyright © Peter Blomberg
Licensed under CC BY 4.0
