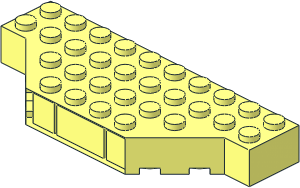

~Brick 4 x 10 without Two Corners - without Front Surface

File Header:

0 ~Brick  4 x 10 without Two Corners - without Front Surface
0 Name: s\30181s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-12-28 [Blechtaler] made from 30181, added fillets
